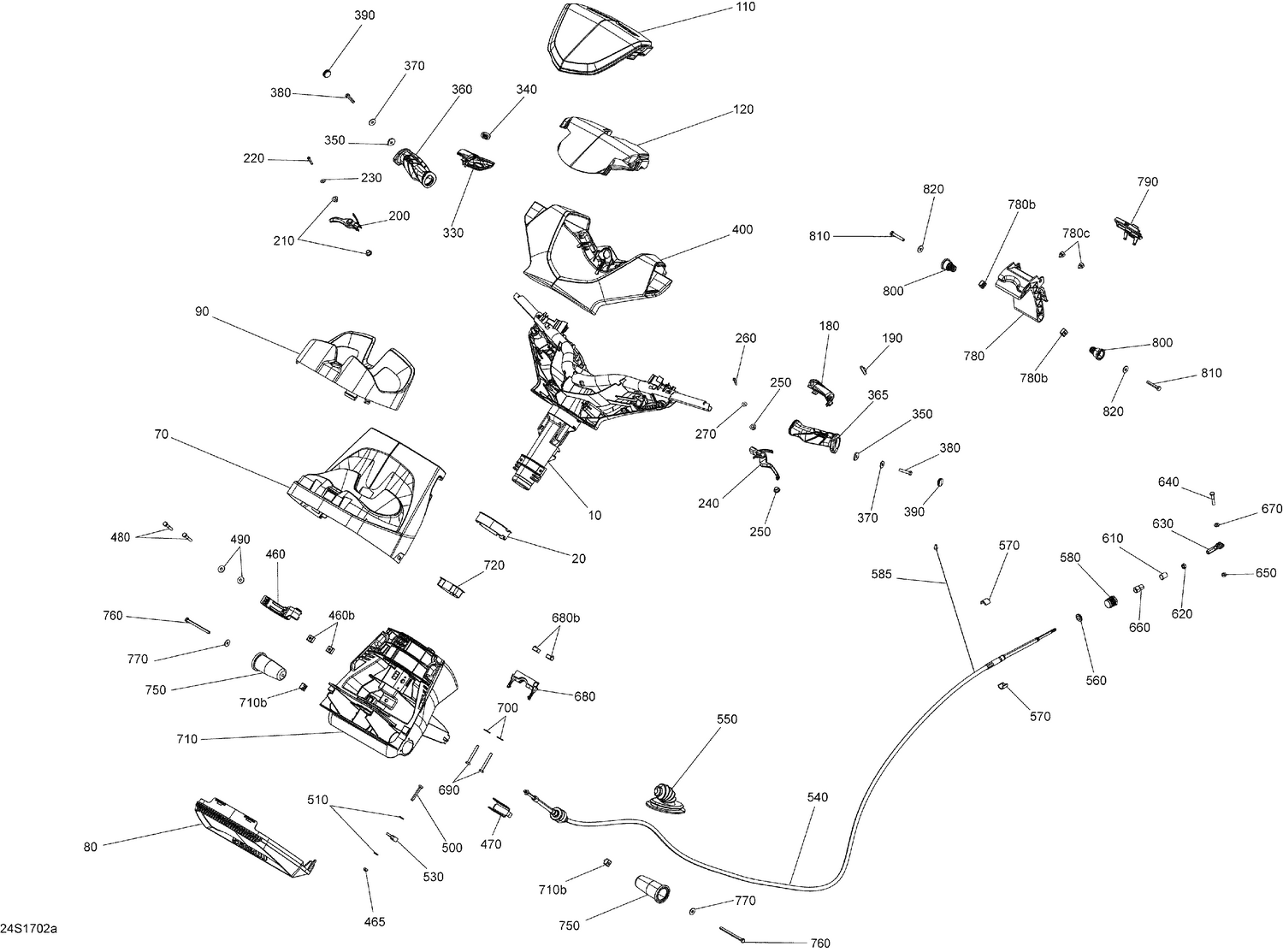

| Ref | Part Number | Description |
|---|
| 10 |
277001963 |
Steering Column |
| 20 |
277001653 |
Wear Ring |
| 70 |
277001953 |
Gauge Support |
| 80 |
277001613 |
Gauge Support Cover |
| 90 |
277001630 |
Gauge Trim, Black |
| 110 |
277001904 |
Black Steering Pad |
| 120 |
277001921 |
Handlebar Foam |
| 190 |
277001887 |
Red, Knob Switch |
| 200 |
277001944 |
Throttle Handle |
| 210 |
293900091 |
Bushing |
| 220 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 230 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 250 |
293900091 |
Bushing |
| 260 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 270 |
234042600 |
Flat Washer 4 mm, Stainless |
| 330 |
277001625 |
Housing Cover RH |
| 340 |
277001888 |
Grey Knob Switch |
| 350 |
277001863 |
Insert Grip Handle |
| 360 |
277001946 |
Deep Black, RH Handle Grip |
| 365 |
277001958 |
Deep Black, LH Handle Grip |
| 370 |
234062600 |
Flat Washer M6, Stainless |
| 380 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 390 |
277000203 |
Black, Cap |
| 400 |
277001969 |
Steering Cover |
| 460b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 465 |
232561200 |
Brass Elastic Stop Nut M6 |
| 470 |
277001654 |
Spacer |
| 480 |
207163560 |
Hex. Screw M6 X 35 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
207064060 |
Hex. Screw M6 X 40 |
| 510 |
234061600 |
Stainless Flat Washer M6 |
| 530 |
277001180 |
Ball Joint |
| 540 |
277001602 |
Steering Cable |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001527 |
Half Ring |
| 580 |
277001729 |
Steering Cable Lock |
| 585 |
219704454 |
Was 293800013 Loctite 56765 |
| 610 |
277001582 |
Wiper Rod |
| 620 |
211100056 |
Hex. Nut 1/4"-28 |
| 630 |
277000775 |
Ball Joint |
| 640 |
207063560 |
Hex. Screw M6 X 35 |
| 650 |
232561200 |
Brass Elastic Stop Nut M6 |
| 660 |
277001583 |
End Piece |
| 670 |
234061600 |
Stainless Flat Washer M6 |
| 680b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 690 |
207165060 |
Hex. Screw M6 X 50 |
| 700 |
234062600 |
Flat Washer M6, Stainless |
| 710b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 720 |
277002318 |
Wear Ring This part replaces 277001741. |
| 750 |
277001605 |
Steering Support Pivot |
| 760 |
207168060 |
Hex Screw M6 X 80 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 780b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 780c |
293830005 |
Rubber Bumper |
| 790 |
277001616 |
LOCK - Call your local BRP dealership |
| 800 |
277001652 |
Pivot |
| 810 |
207064060 |
Hex. Screw M6 X 40 |
