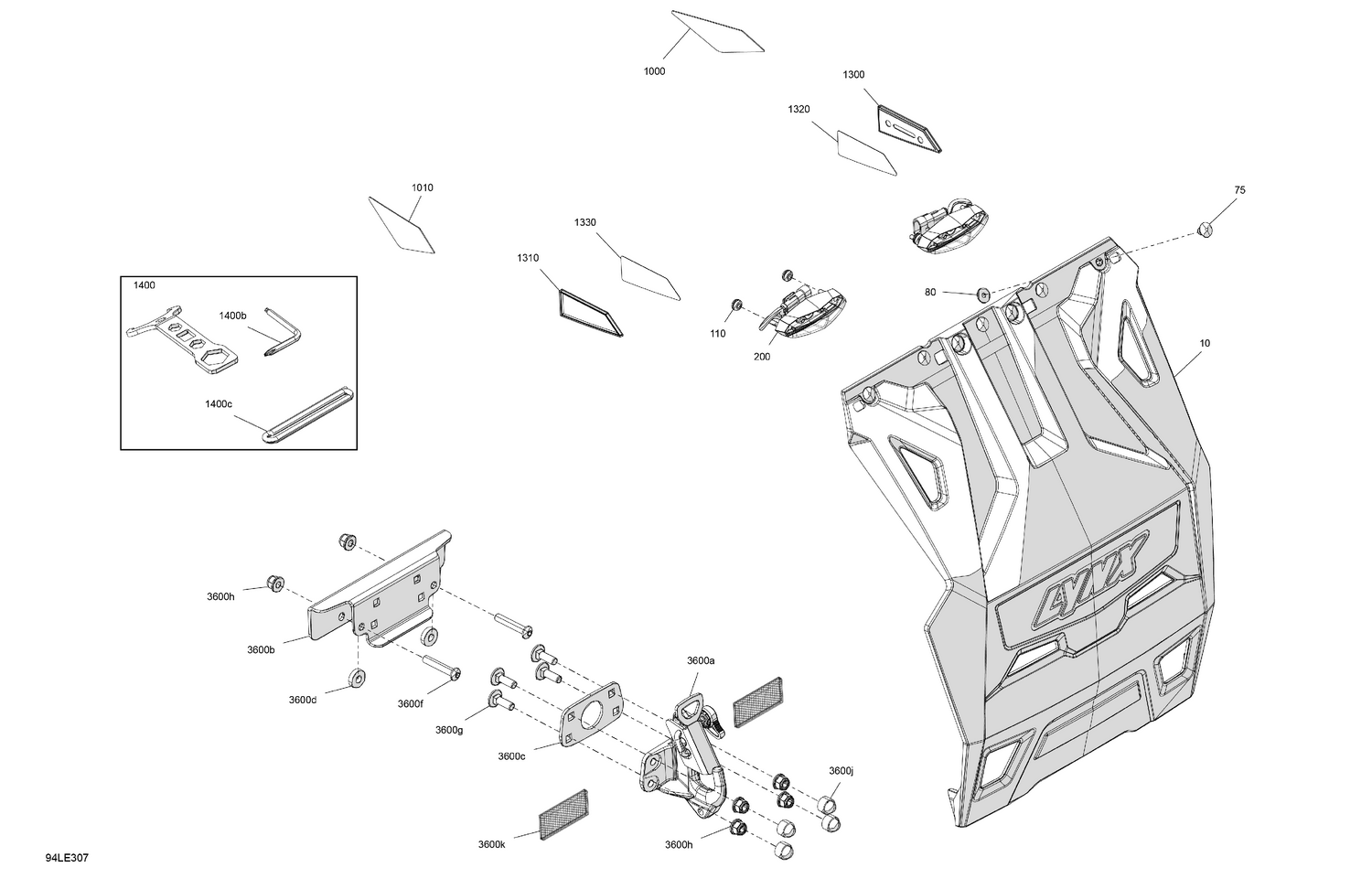

09- Miscellaneous - Utilities
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001646 | Snow Guard |
| 75 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 80 | 517124300 | Washer |
| 110 | 293720101 | Grommet |
| 200 | 520003188 | Tail Light |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 520003528 | Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 1310 | 705016307 | Yellow, LH Reflector |
| 1320 | 520002649 | RH Support Tape |
| 1330 | 520002650 | LH Support Tape |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3600a | 520001826 | Hitch Ass'y |
| 3600b | 520001632 | Hitch Support |
| 3600c | 520001243 | Hitch Fastening Plate |
| 3600d | 520001288 | Sleeve |
| 3600f | 205484546 | Socket Head Screw M8 X 45 |
| 3600g | 207782544 | Carriage Bolt, M8 X 25 |
| 3600h | 233281414 | Hex. Flange Elastic Nut M8 |
| 3600j | 28056 | Cover |
