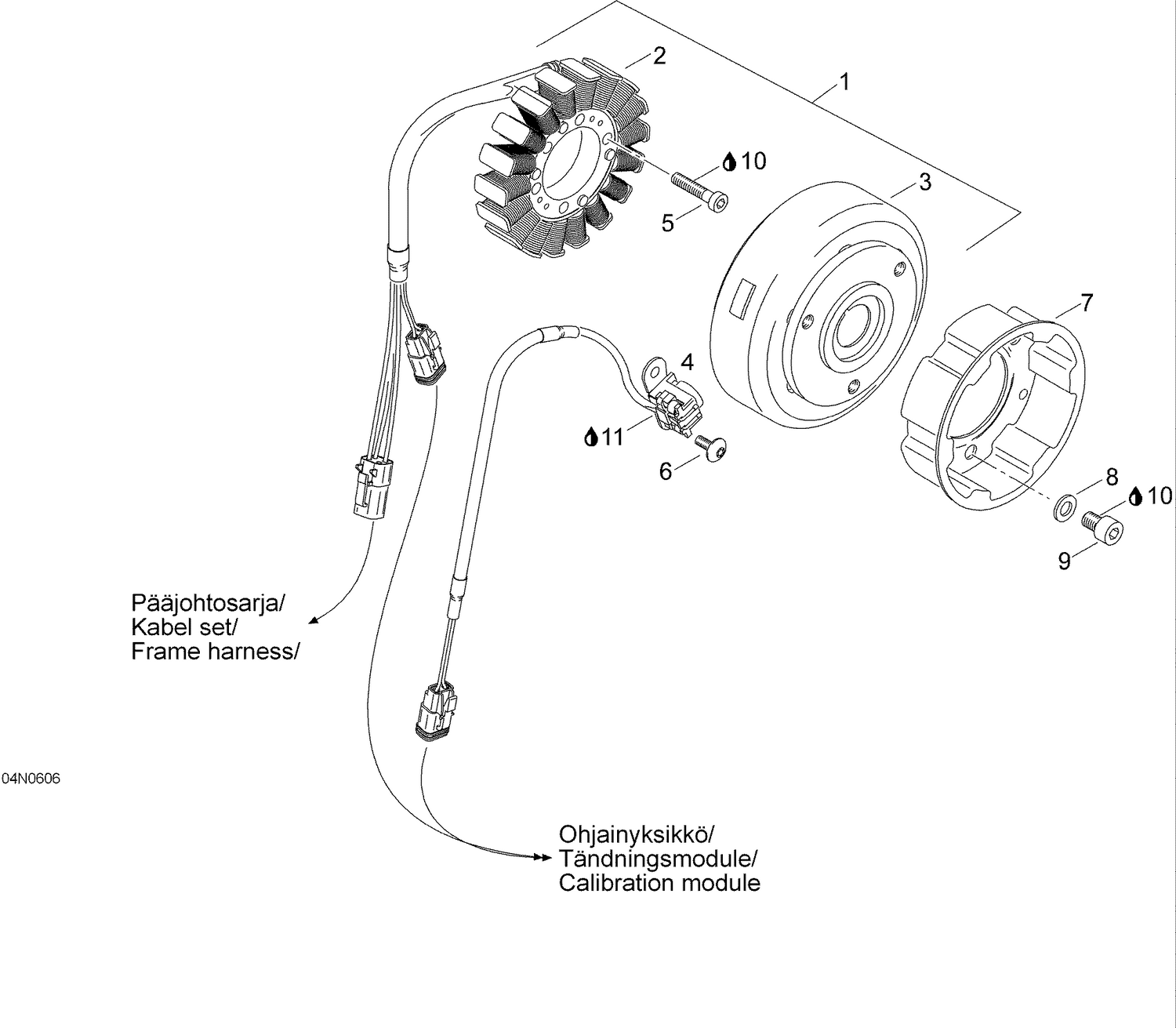

03- Magneto
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420888314 | Stator assy |
| 3 | 420888323 | Magneto flywheel |
| 4 | 420966837 | Pick up assy |
| 5 | 420840887 | SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 6 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 7 | 420852590 | Starter cup |
| 8 | 420827405 | Lock washer |
| 9 | 420841520 | Allen screw M8 x 12 |
| 10 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 11 | 293800060 | Loctite 243, 10ml |
