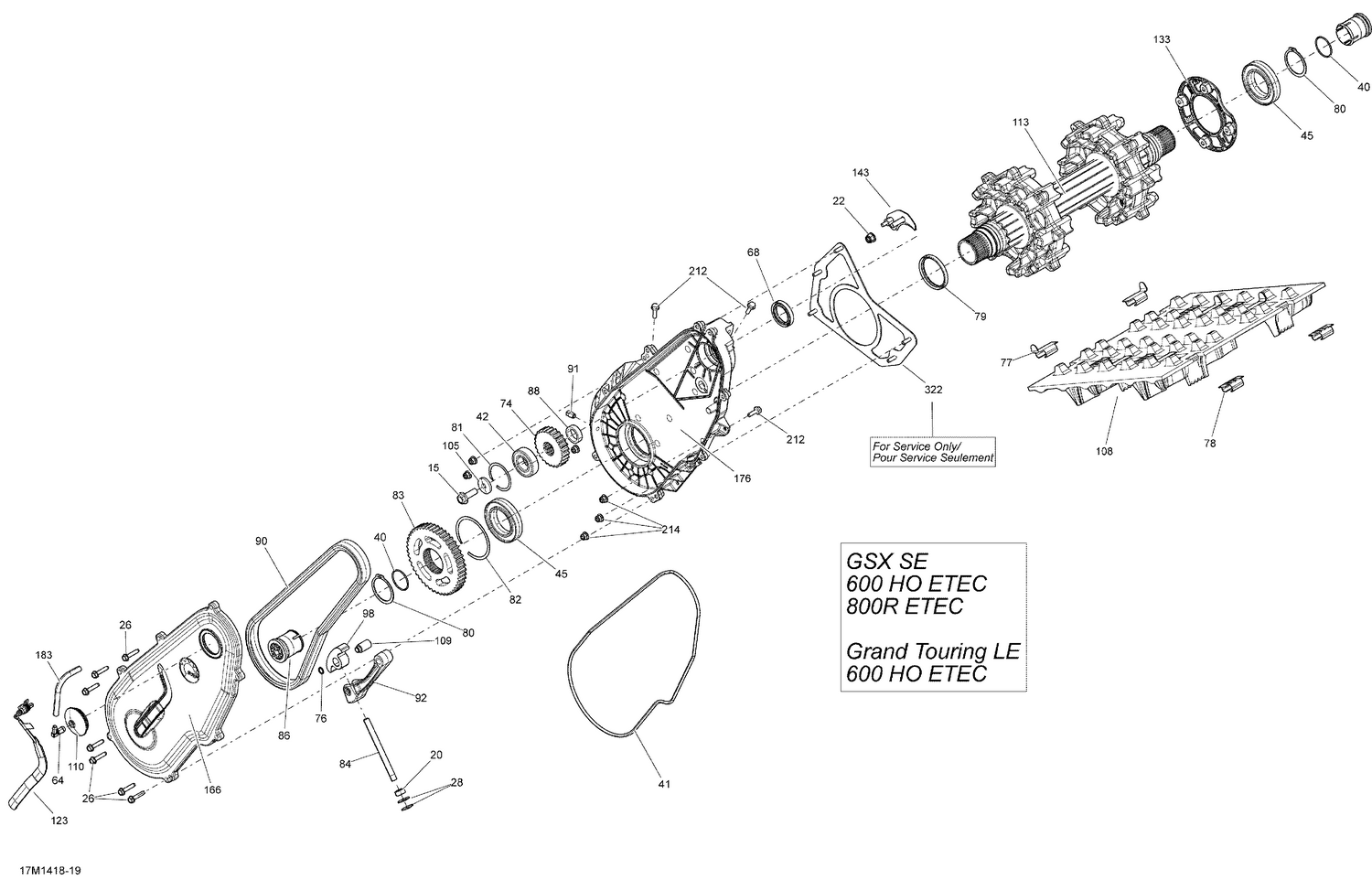

05- Drive System
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 20 | 232006414 | Hex. Nut M10 X 1.5 |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 26 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 28 | 250200100 | Bonded Washer |
| 40 | 293300122 | O-Ring |
| 41 | 293300130 | Tight Seal |
| 42 | 293350115 | Ball Bearing This part replaces 293350055. |
| 45 | 293350059 | Ball Bearing |
| 64 | 414580700 | Male Connector |
| 68 | 293200158 | Oil Seal This part replaces 415049300. |
| 74 | 504153911 | Sprocket 23 Teeth This part replaces 504091000. |
| 76 | 504152282 | Circlip |
| 77 | 415129528 | Track Guide |
| 78 | 504152651 | Cleat |
| 79 | 293200159 | Oil Seal This part replaces 504152571. |
| 80 | 504152572 | Circlip |
| 81 | 504152576 | Circlip |
| 82 | 504152582 | Circlip |
| 83 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 84 | 504152602 | Adjustment Screw |
| 86 | 504152619 | Magnetic Cap |
| 87 | 504152619 | Magnetic Cap |
| 88 | 504152628 | Shim |
| 90 | 504152629 | Drive Chain, 104 Links |
| 91 | 504152854 | Magnetic Plug 1/8 - 27 NPTF |
| 92 | 504153429 | Tensioner chain This part replaces 504152685. |
| 98 | 504152739 | Slider Chain |
| 105 | 504152784 | Spring Washer M10 |
| 108 | 504152755 | Track Ass'y 15X137X1.0 |
| 109 | 504152841 | Tensioner Axle |
| 110 | 504152860 | Cap |
| 113 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 123 | 504152896 | Rotation Sensor |
| 133 | 504153886 | Retaining Ring This part replaces 504152949. |
| 143 | 504153418 | Bearing Housing Ass'y This part replaces 504152974. |
| 166 | 504153410 | Chaincase Cover Ass'y This part replaces 504153146. |
| 176 | 504153405 | Chaincase This part replaces 504153180. |
| 183 | 219704410 | Polyurethane Hose 10000Mm Long |
| 212 | 207662034 | Hex. Flange Screw M6 X 20 |
| 214 | 233261434 | Flange Elastic Nut M6 |
