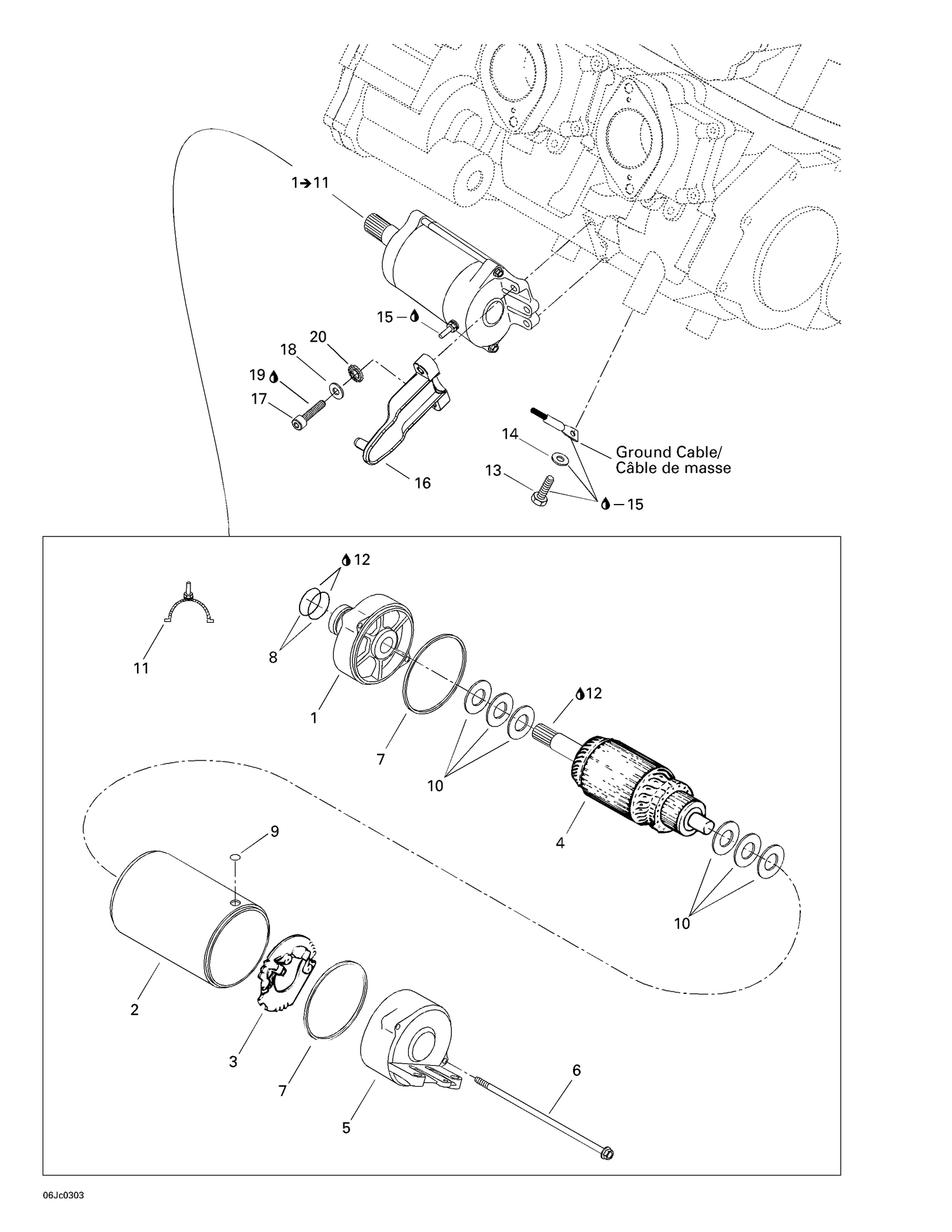

| Ref | Part Number | Description |
|---|
| 1 |
278001152 |
Front Housing |
| 2 |
278001153 |
Starter Housing |
| 3 |
278001154 |
BRUSH HOLDER - Call your local BRP dealership |
| 4 |
278001155 |
Armature |
| 5 |
278001156 |
REAR HOUSING - Call your local BRP dealership |
| 6 |
278001157 |
SCREW - Call your local BRP dealership |
| 7 |
278001158 |
SQUARE RING - Call your local BRP dealership |
| 8 |
278001159 |
O-RING - Call your local BRP dealership |
| 9 |
278001160 |
O-RING - Call your local BRP dealership |
| 10 |
278001161 |
Set Washer |
| 11 |
278001385 |
SET BRUSH - Call your local BRP dealership |
| 12 |
293550010 |
Synthetic Grease, 400 G |
| 13 |
207302060 |
Hex. Screw M10 X 20, Scotch Grip |
| 14 |
234001600 |
Flat Washer 10 mm, Stainless |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
273000123 |
Silencer Support |
| 17 |
205063560 |
Socket Head Screw M6 X 35 |
| 18 |
234061600 |
Stainless Flat Washer M6 |
| 19 |
Not |
Available As Spare Part - Loctite 18607 |
