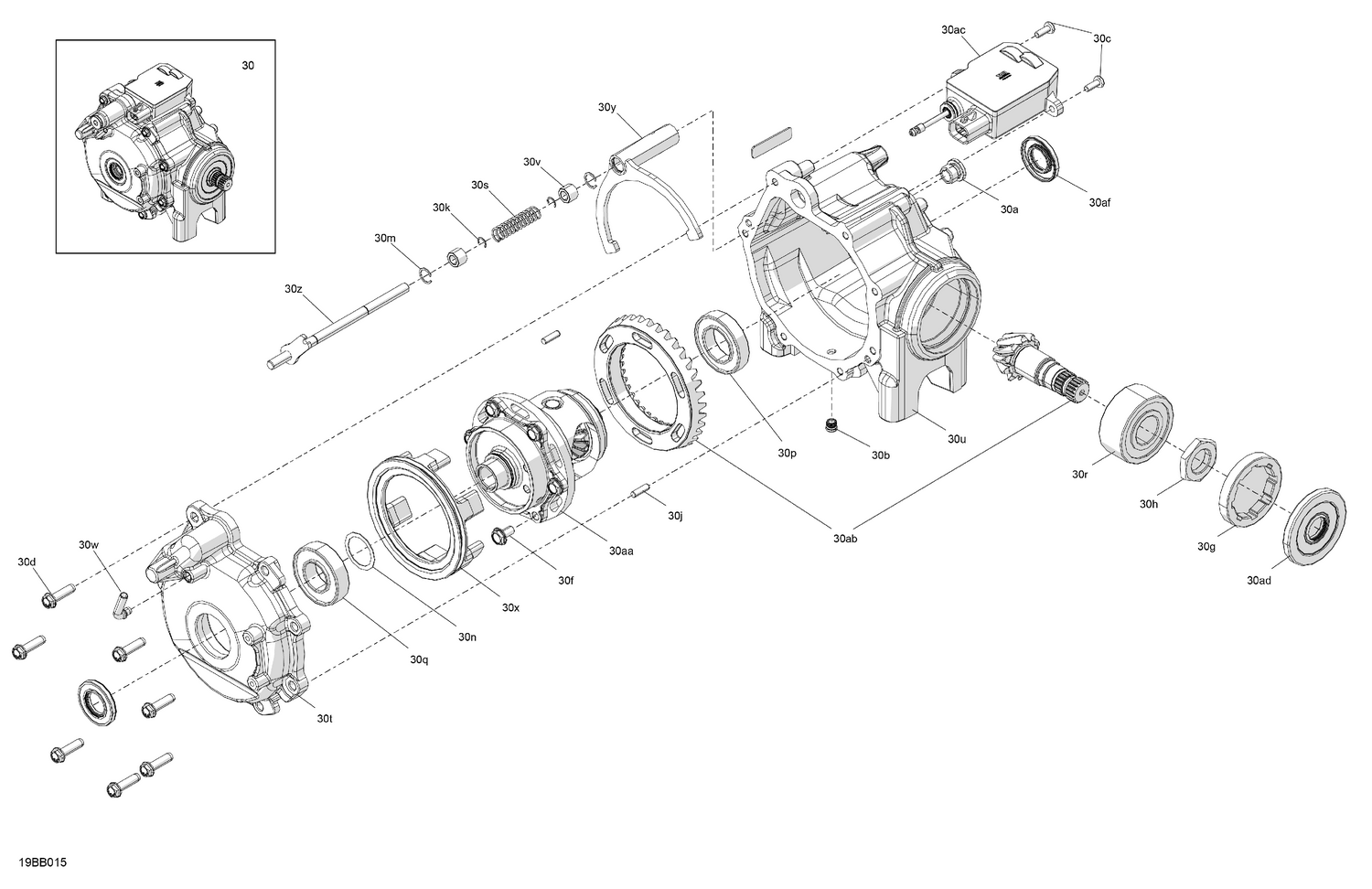

04- Drive - Front - Differential Parts
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501889 | Fill Level Plug |
| 30aa | 715900735 | Differential Sub-Assembly |
| 30ab | 715900730 | Bevel Gear Set |
| 30ac | 715900731 | Actuator |
| 30ad | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 30b | 715900563 | Fill Level Plug M10 |
| 30c | 705402845 | Torx Screw M6 X 16 |
| 30d | 705501886 | Bolt |
| 30f | 715900798 | Custom Hex Screw Flange Head |
| 30g | 705401819 | Nut M75 X 1.5 |
| 30h | 705401820 | Nut M27 X 1.5 |
| 30j | 715900559 | Dowel Pin |
| 30k | 715900719 | Ring External Shaft |
| 30m | 715900720 | Ring, Internal Spiral Housing |
| 30n | 705401604 | Shim |
| 30p | 705402847 | Ball Bearing |
| 30q | 705401606 | Ball Bearing |
| 30r | 715900721 | Ball Bearing |
| 30s | 715900722 | Spring |
| 30t | 715900733 | Cover |
| 30u | 715900734 | Case |
| 30v | 715900725 | Bushing |
| 30w | 705401935 | Vent Valve |
| 30x | 715900726 | Disconnect |
| 30y | 715900727 | Disconnect Fork |
| 30z | 715900728 | Shift Rail |
