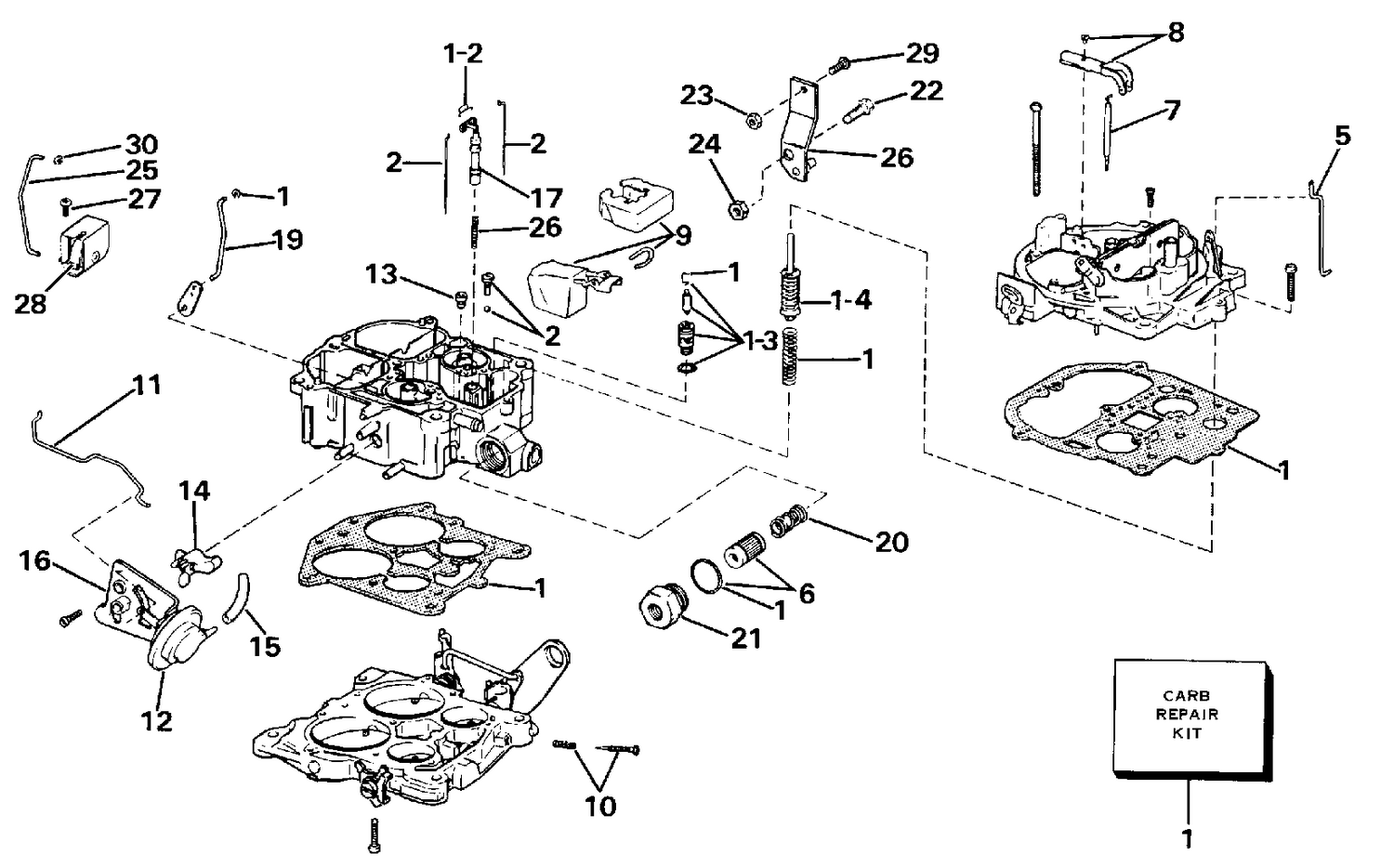

| Ref | Part Number | Description |
|---|
| 1 |
0983864 |
CARB. REPAIR KIT |
| 2 |
0913620 |
METERING ROD, Primary |
| 3 |
0983873 |
NEEDLE & SEAT ASSY |
| 4 |
0983872 |
FLOAT & INSERT PKG |
| 5 |
0314556 |
PUMP ROD |
| 6 |
0983870 |
FILTER, Fuel inlet |
| 7 |
0910332 |
METERING ROD, Secondary |
| 8 |
0911652 |
HOLDER KIT, Secondary metering rod |
| 9 |
0983871 |
FLOAT & INSERT ASSY. |
| 10 |
0913619 |
IDLE NEEDLE & SPRING |
| 11 |
0314527 |
ROD VACUUM BREAK |
| 12 |
0983867 |
VACUUM BREAK ASSY |
| 13 |
0913660 |
METERING JET |
| 14 |
0316523 |
CAM, Fast idle |
| 15 |
0314531 |
HOSE, Vacuum |
| 16 |
0981788 |
BACKET ASSEMBLY VACUUM BREAK CONTROL |
| 17 |
0983868 |
POWER PISTON ASSY |
| 19 |
0314535 |
ROD, Choke |
| 20 |
0314548 |
SPRING, Fuel filter |
| 22 |
0310859 |
BOLT, Throttle lever to carb |
| 24 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 25 |
0909422 |
LINK, Choke |
| 25 |
0913339 |
LINK, choke |
| 26 |
0382822 |
THROTTLE LEVER & PIN |
| 27 |
0314576 |
SCREW This part replaces 0328720. |
| 28 |
0986507 |
THERM ASSY, Lift This part replaces 0979664. |
| 29 |
0319292 |
SCREW, Clamp |
| 0985822 |
0985822 |
CARBURETOR ASSY |
