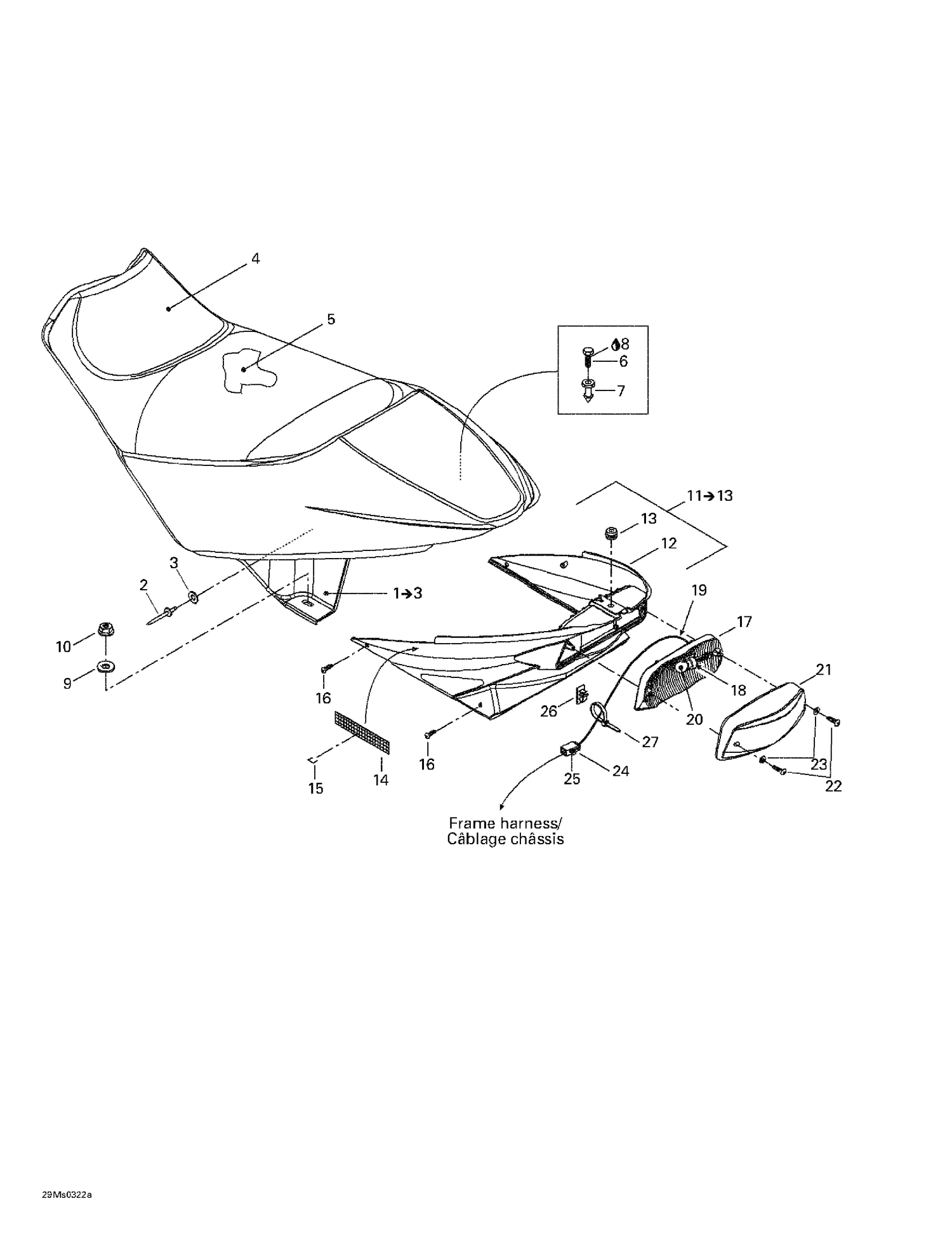

09- Seat
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 3 | 517225900 | Flat Washer |
| 4 | 510004166 | Seat cover |
| 5 | 510004210 | Seat foam |
| 6 | 207151444 | Hex. Screw M5 X 14 |
| 7 | 517303439 | Knob This part replaces 517302719. |
| 8 | 293800060 | Loctite 243, 10 ml |
| 9 | 234082410 | Flat Washer 8 mm |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 12 | 510004138 | TRUNK - Call your local BRP dealership |
| 13 | 517307161 | Grommet This part replaces 517302841. |
| 14 | 415110900 | VELCRO 1/2? - Call your local BRP dealership |
| 15 | 510004183 | Staple |
| 16 | 250000123 | Phillips Screw M6 X 16 |
| 17 | 510004018 | REFLECTOR - Call your local BRP dealership |
| 18 | 414979411 | Rubber Damper |
| 19 | 515175940 | Fitting |
| 20 | 520000758 | Bulb This part replaces 410504100. |
| 21 | 511000315 | Lens This part replaces 510003826. |
| 22 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 23 | 414516400 | Washer - Call your local BRP dealership |
| 24 | 515175494 | Male Housing, 3 Circuits |
| 25 | 515175232 | Male Terminal |
| 26 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
