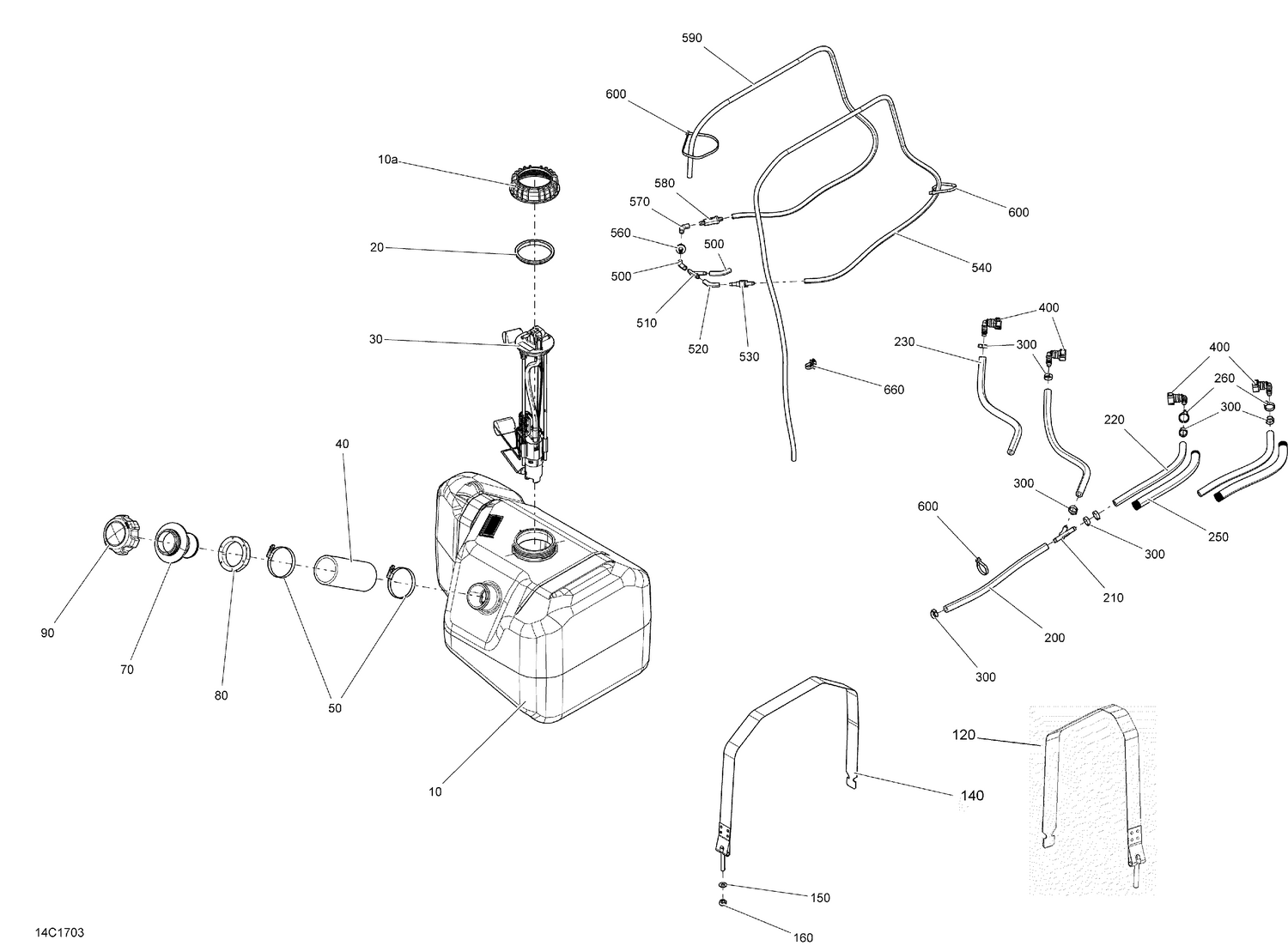

02- Fuel System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709000328 | Fuel Pump Module Nut |
| 20 | 709000208 | Seal |
| 40 | 709000595 | Hose Filler Neck |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000725 | Filler Neck |
| 80 | 211100012 | Filler Neck Nut, Fuel |
| 90 | 513033816 | Fuel Cap |
| 120 | 709000521 | Fuel Tank Strap |
| 140 | 709000648 | Fuel Tank Strap |
| 150 | 234081410 | Flat Washer 8 mm |
| 160 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 219704440 | Was 709000163 Fuel Line |
| 220 | 219704440 | Was 709000163 Fuel Line |
| 250 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 260 | 414115200 | Tie-Rap 180 mm |
| 300 | 293650047 | Crimp Clamp, 15.3-706R |
| 400 | 275500700 | Quick Attach 90° |
| 500 | 219704410 | Polyurethane Hose 10000Mm Long |
| 510 | 293710059 | Y-Fitting |
| 530 | 513033469 | Check Valve |
| 560 | 275500398 | Check Valve |
| 580 | 709000330 | Filter |
| 600 | 293750008 | Tie Wrap 368 mm |
