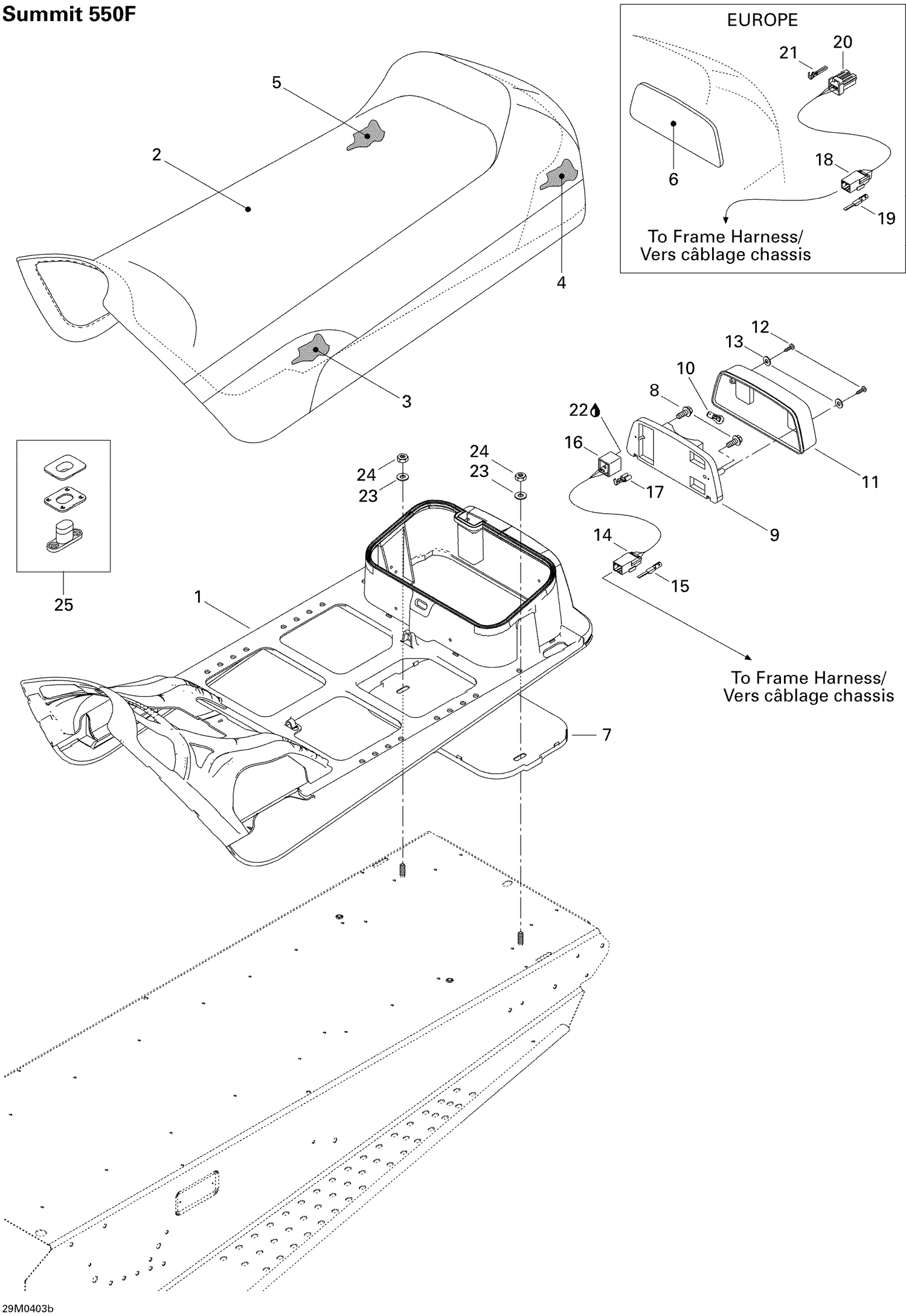

09- Seat SUMMIT 550F
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510003983 | Seat Base |
| 2 | 510004102 | Seat Cover |
| 3 | 510003944 | SEAT FOAM - Call your local BRP dealership |
| 4 | 510003945 | Rear Seat Foam |
| 5 | 510004255 | Seat Foam |
| 7 | 572107601 | UNDER CHEST - Call your local BRP dealership |
| 8 | 732603006 | Hex. Screw #10 X 1" |
| 9 | 510004061 | LIGHT HOUSING - Call your local BRP dealership |
| 10 | 520000758 | Bulb This part replaces 410504100. |
| 11 | 414513700 | Lens |
| 12 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 515175494 | Male Housing, 3 Circuits |
| 15 | 515175232 | Male Terminal |
| 16 | 515175250 | Female Terminal Housing, 3 Circuits |
| 17 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 22 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 23 | 234082410 | Flat Washer 8 mm |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
