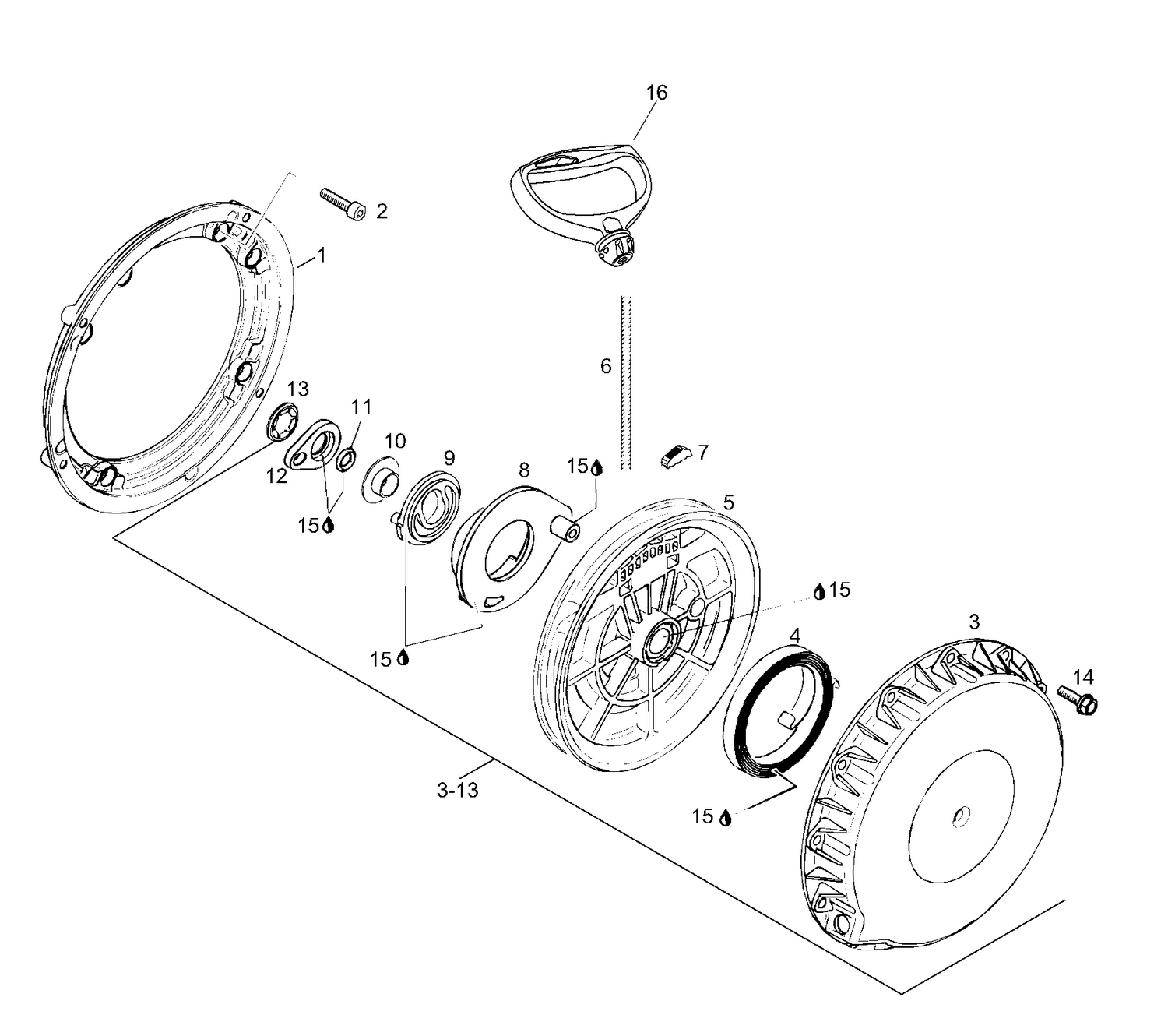

| Ref | Part Number | Description |
|---|
| 1 |
420810868 |
Connecting flange This part replaces 420810865. |
| 2 |
420241237 |
Socket Head Screw M6 X 16 This part replaces 420241236. |
| 3 |
420910256 |
Starter Housing This part replaces 420811400. |
| 4 |
420939115 |
Rewind Spring Ass'y |
| 5 |
420852285 |
Rope sheave |
| 6 |
412500100 |
Starter rope (30 m) |
| 6 |
412500200 |
Starter Rope This part replaces 420852491. |
| 7 |
420852070 |
Key |
| 8 |
420852633 |
Pawl This part replaces 420852297. |
| 9 |
420852305 |
PAWL LOCK - Call your local BRP dealership This part replaces 420852303. |
| 10 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 11 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 12 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 13 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 14 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 15 |
Not |
Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
