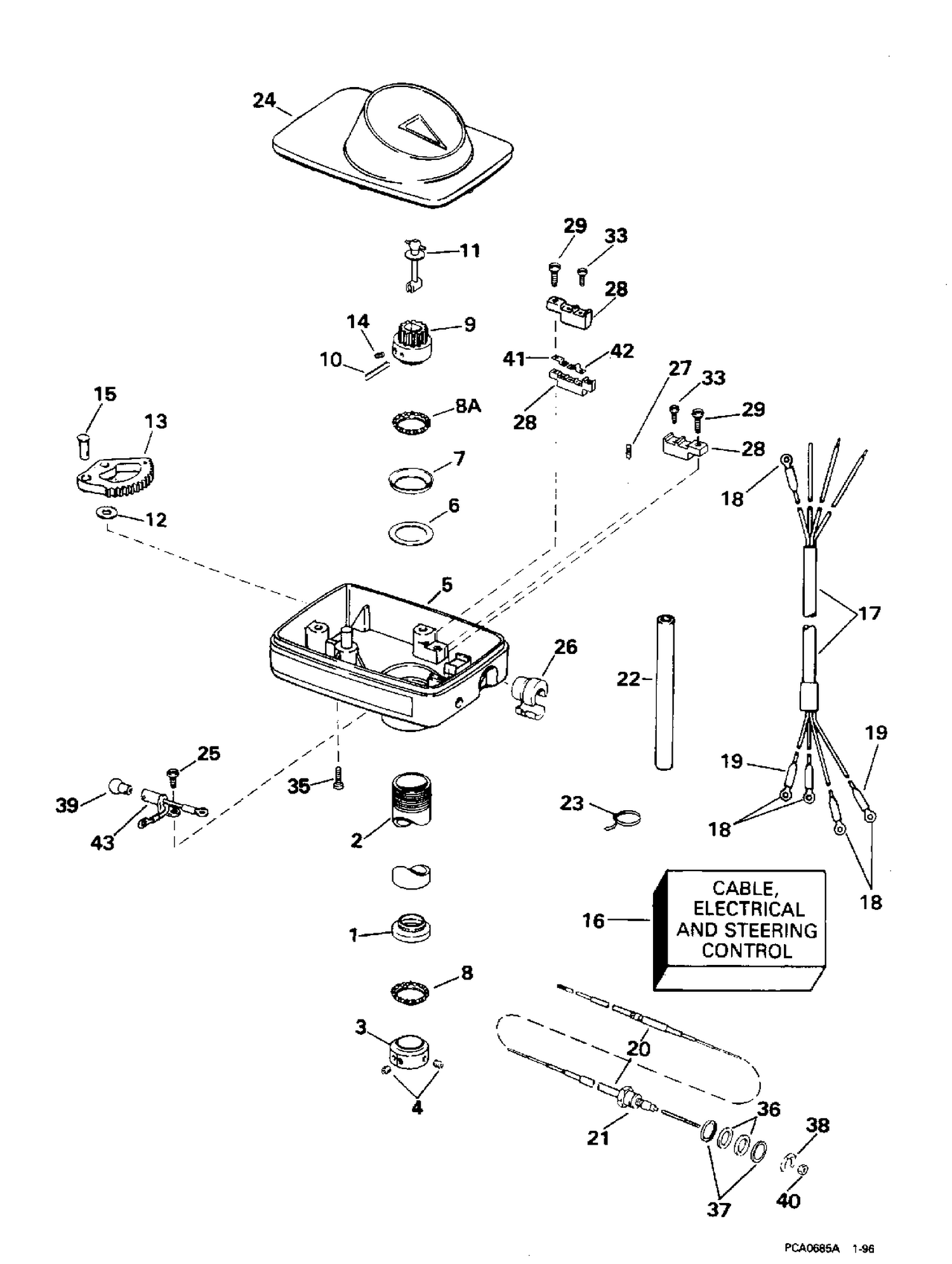

| Ref | Part Number | Description |
|---|
| 1 |
0339847 |
CUP, Ball bearing |
| 2 |
0207270 |
MOUNTING TUBE |
| 2 |
0334849 |
MOUNTING TUBE |
| 3 |
0116448 |
ADJ. RING, Motor tube |
| 4 |
0338684 |
SET SCREW, 1/4 -20 |
| 5 |
0434597 |
STEERING HOUSING ASSY |
| 6 |
0319596 |
SUPPORT, Ball bearing cup |
| 7 |
0319595 |
CUP, Ball bearing |
| 8 |
0436284 |
BEARING ASSY., Lower |
| 8A |
0433047 |
BEARING ASSY., Mounting tube |
| 9 |
0116534 |
STEERING PINION This part replaces 0328229. |
| 10 |
0319523 |
PIN, Pinion to motor tube |
| 11 |
0334697 |
DRIVE, Pinion to direction ind. |
| 13 |
0328228 |
STEERING GEAR |
| 14 |
0319652 |
SET SCREW, Adj. ring |
| 15 |
0319532 |
PIN, Gear to cable |
| 16 |
0116710 |
CABLES & SLEEVE ASSY., 5 ft. |
| 16 |
0116711 |
CABLES & SLEEVE ASSY., 8 ft. |
| 16 |
0434404 |
CABLES & SLEEVE ASSEMBLY, 5 ft |
| 16 |
0434408 |
CABLES & SLEEVE ASSEMBLY, 8 ft |
| 17 |
0116605 |
CABLE ASSY., 5 ft. |
| 17 |
0116655 |
CABLE ASSY., 8 ft. |
| 17 |
0582553 |
CABLE ASSY., 5 ft. |
| 17 |
0584339 |
CABLE ASSY., 8 ft. |
| 20 |
0116473 |
CABLE, 5 ft. |
| 20 |
0116474 |
CABLE, 8 ft. |
| 21 |
0116479 |
NUT, Steering cable |
| 22 |
0436491 |
SLEEVE, Cables, 5 ft. |
| 22 |
0436492 |
SLEEVE, Cables, 8 ft. |
| 23 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 24 |
0433267 |
COVER ASSY., Steering housing |
| 25 |
0319614 |
SCREW, Bar clamp |
| 26 |
0319753 |
BUSHING, Strain relief |
| 27 |
0319653 |
SET SCREW, Steering cable |
| 28 |
0116604 |
TERMINAL BOARD |
| 28 |
0319650 |
TERMINAL BOARD |
| 29 |
0319605 |
GROMMET, Cable lwr mot cov. |
| 33 |
0329182 |
VIS, borne |
| 35 |
0327277 |
SCREW, Cover to steering housing |
| 36 |
0334866 |
RUBBER WASHER |
| 37 |
0334865 |
CUP, Retaining |
| 38 |
0332338 |
RETAINER, Cable |
| 39 |
0320457 |
LAMP, Direction indicator, 24 V. |
| 41 |
0116748 |
JUMPER |
| 42 |
0315004 |
FIL DE LIAISON, bornier |
| 43 |
0116614 |
SOCKET ASSY., Lamp |
| 43 |
0582392 |
SOCKET ASSY., Lamp |
| 0284079 |
0284079 |
DECAL SET, Evinrude |
| 0432933 |
0432933 |
CABLE ASSY., Steering, 8 ft |
| 0432936 |
0432936 |
CABLE ASSY., Steering, 5 ft |
| 0437133 |
0437133 |
BEARING KIT |
