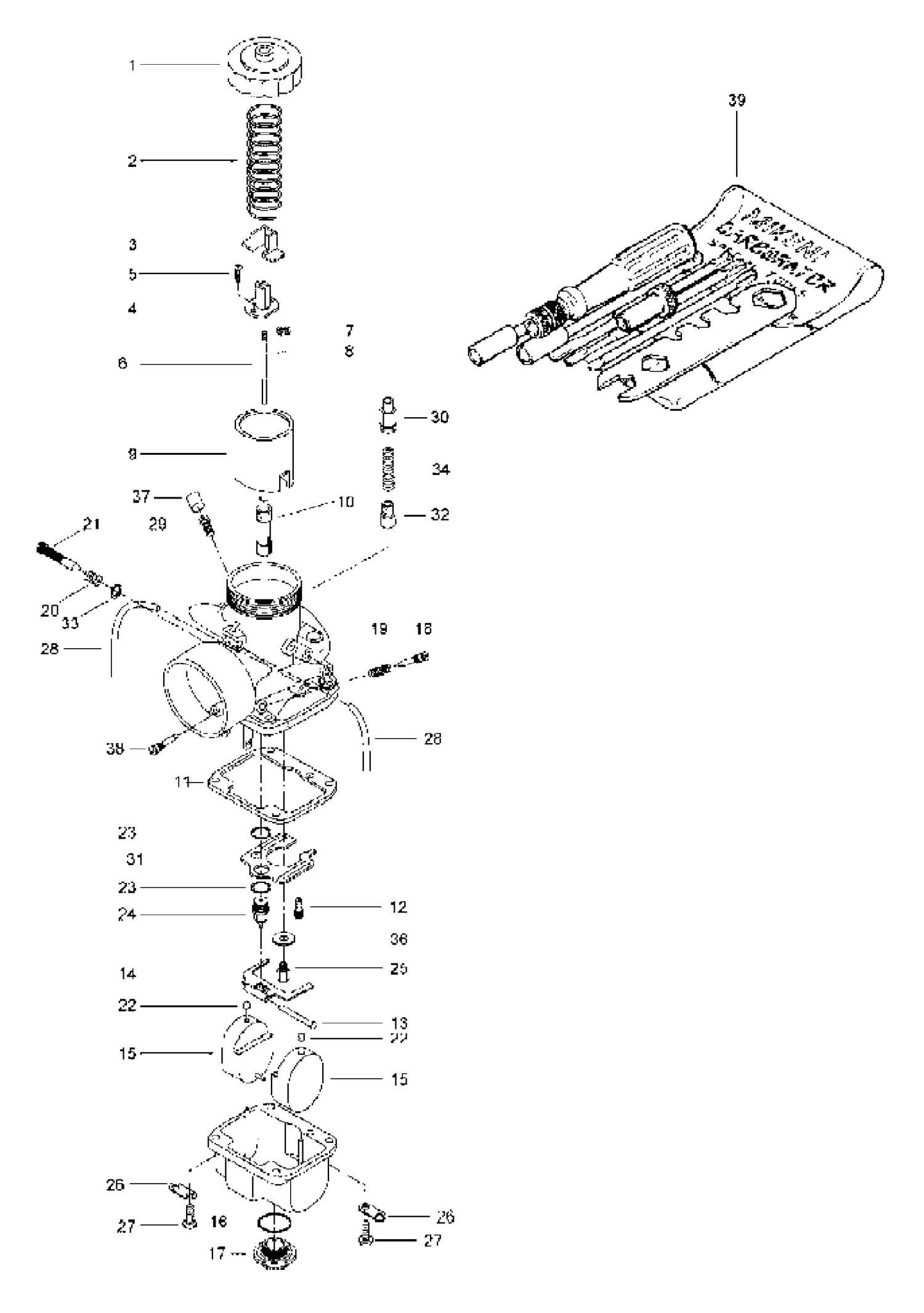

02- Carburetor
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404126800 | Cover |
| 2 | 404156500 | Throttle valve spring |
| 3 | 404128100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership |
| 5 | 404121300 | Screw with washer |
| 6 | 404161847 | Jet needle 7DFY1-3 |
| 7 | 404152200 | E-ring |
| 8 | 404117000 | Packing |
| 9 | 404132300 | Trottle valve 2.5 |
| 10 | 404153800 | Needle jet 224Z-9 |
| 11 | 404104700 | GASKET - Call your local BRP dealership |
| 12 | 404161846 | Pilot jet 37.5 |
| 13 | 404103300 | Float arm pin |
| 14 | 404161823 | Float arm |
| 15 | 404105400 | FLOAT - Call your local BRP dealership |
| 16 | 404112800 | Washer |
| 17 | 404112900 | Plug Screw |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring (adjustm. Screw) |
| 21 | 404151900 | Throttle stop screw |
| 22 | 404105800 | Cap |
| 23 | 404101600 | Gasket washer |
| 24 | 404147400 | Needle valve 1,5V |
| 25 | 404101300 | Main jet 320 |
| 26 | 404103000 | PLATE - Call your local BRP dealership |
| 27 | 404102000 | Screw + lock washer |
| 28 | 404161814 | Vent tube |
| 29 | 404153400 | Nipple |
| 30 | 404161100 | GUIDE HOLDER - Call your local BRP dealership |
| 31 | 404112700 | Baffle plate |
| 32 | 404161845 | Plunger ass’y |
| 33 | 270500018 | Washer |
| 34 | 404161844 | Spring |
| 36 | 404116700 | Ring |
| 37 | 404154900 | CAP - Call your local BRP dealership |
| 38 | 404131700 | Plug screw |
