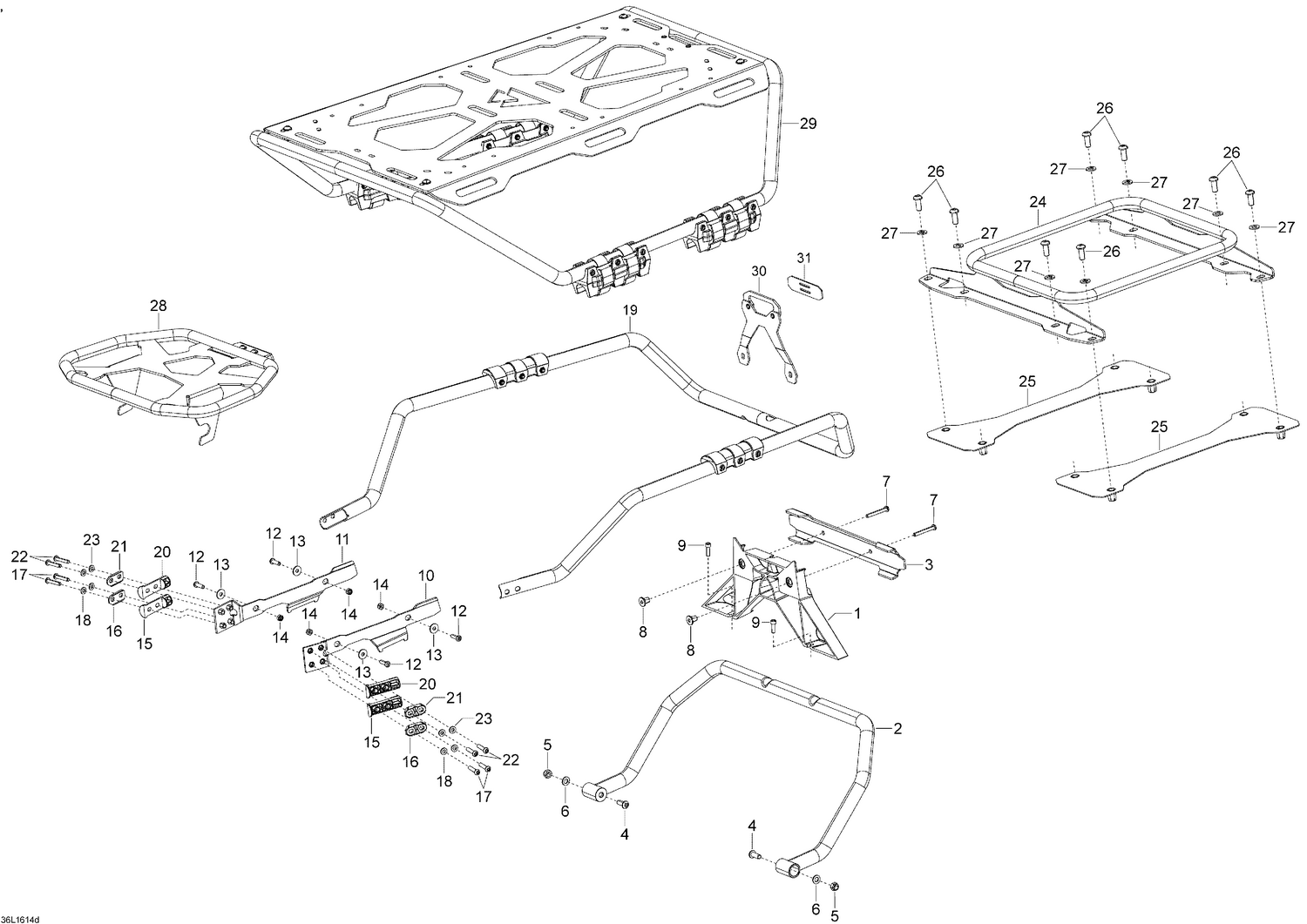

09- Cargo Rack - Touratech Traveler
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000559 | Rear Light Support |
| 2 | 511001088 | Rack Support Bar |
| 3 | 511001089 | Clamp |
| 4 | 205482560 | Socket Screw M8 x 25 |
| 5 | 232581600 | Elastic Stop Nut M8 |
| 6 | 234081600 | Flat Washer |
| 7 | 205464560 | Socket Screw M6 x 45 |
| 8 | 511001090 | Machined Nut M6 |
| 9 | 207662056 | Hex. Flange Screw M6 x 20 |
| 10 | 511001091 | Bracket |
| 11 | 511001092 | Bracket |
| 12 | 205462060 | SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 13 | 234062600 | Flat Washer |
| 14 | 232561600 | Elastic Stop Nut M6 |
| 15 | 293710158 | Insert |
| 16 | 293710159 | Support Plate |
| 17 | 205463060 | SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 18 | 234061600 | Flat Washer |
| 19 | 511001086 | Lower Rear Rack Ass'y |
| 20 | 293710158 | Insert |
| 21 | 293710159 | Support Plate |
| 22 | 205463060 | SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 23 | 234061600 | Flat Washer |
| 24 | 511001084 | Large Pannier Bracket |
| 25 | 511001103 | Large Pannier Support Plate |
| 26 | 205482060 | Socket Head Screw M8 x 20 |
| 27 | 234081600 | Flat Washer |
| 28 | 860201333 | Small Pannier Bracket |
| 29 | 860201335 | Upper Rear Rack Ass'y |
| 30 | 511001115 | Rear Rack Stop Strap Bracket |
| 31 | 520900005 | Rear Rack Stop Strap Support |
| 32 | 860201330 | Large Pannier |
