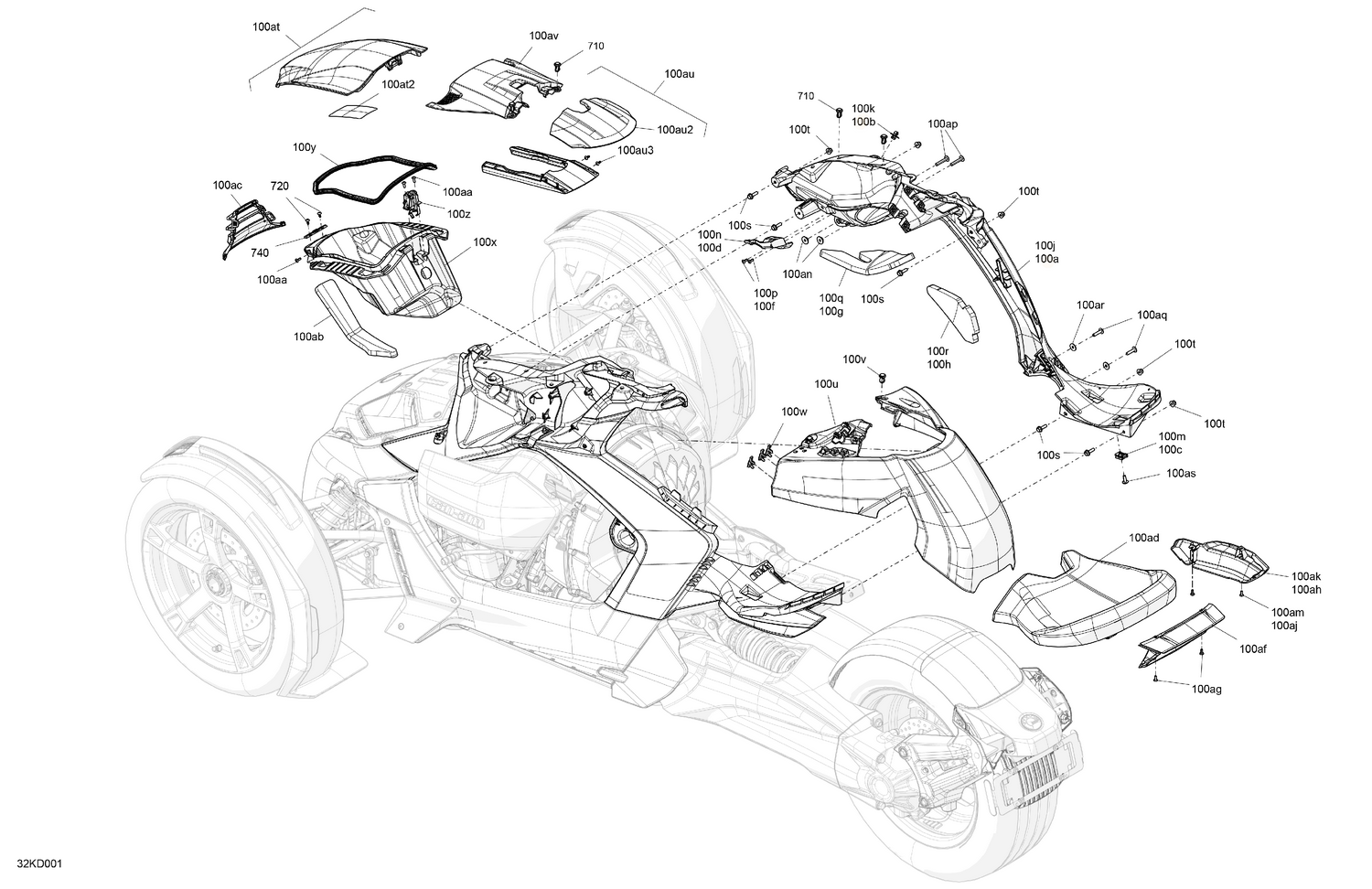

07- Body - Upper Section
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 705208901 | LH Upper Frame |
| 100aa | 250001131 | Torx Truss PT K40 x 12 |
| 100ab | 705013943 | Acoustic Foam, Storage Compartment |
| 100ac | 705013110 | Center Front Fairing |
| 100ad | 708002411 | Driver Seat |
| 100af | 705013202 | Rear Spoiler |
| 100ag | 250001131 | Torx Truss PT K40 x 12 |
| 100ah | 705013413 | LH Side Cap |
| 100aj | 250001131 | Torx Truss PT K40 x 12 |
| 100ak | 705013414 | RH Side Cap |
| 100am | 250001131 | Torx Truss PT K40 x 12 |
| 100an | 705014119 | Large Shoulder Nut M6 |
| 100ap | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100aq | 250000807 | Torx Truss Screw M6 X 25 |
| 100ar | 234062670 | Stainless Steel Flat Washer |
| 100as | 250000721 | Torx Truss Screw M6 X 16 |
| 100at2 | 704907056 | Decal Aesthetic Notice |
| 100au2 | 705017575 | Fuel Door Filler |
| 100au3 | 250001034 | Torx-Truss Screw K40 X 10 |
| 100av | 705017574 | Upper Fairing |
| 100b | 293730080 | Dart Clip |
| 100c | 250100208 | Panel Nut M6 X 1.0 |
| 100d | 705013415 | LH Holder (support) |
| 100f | 250001131 | Torx Truss PT K40 x 12 |
| 100g | 705013944 | LH Upper Front Acoustic Foam |
| 100h | 705013946 | LH Upper Rear Acoustic Foam |
| 100j | 705208902 | RH Upper Frame |
| 100k | 293730080 | Dart Clip |
| 100m | 250100208 | Panel Nut M6 X 1.0 |
| 100n | 705013416 | RH Holder (support) |
| 100p | 250001131 | Torx Truss PT K40 x 12 |
| 100q | 705013945 | RH Upper Front Acoustic Foam |
| 100r | 705013947 | RH Upper Rear Acoustic Foam |
| 100s | 207662054 | Hex. Flange Screw M6 X 20 |
| 100t | 233261466 | Hex. Flange Elastic Nut M6 |
| 100u | 705016523 | Tank Trim |
| 100v | 293150230 | Tuflok Plastic Rivet |
| 100w | 515179692 | Connector Support |
| 100x | 705205819 | Storage Compartment Front |
| 100y | 708200794 | Neoprene Seal Joint |
| 100z | 705007380 | Push Latch |
| 710 | 293150230 | Tuflok Plastic Rivet |
| 720 | 250001034 | Torx-Truss Screw K40 X 10 |
| 740 | 705013475 | Pivot |
