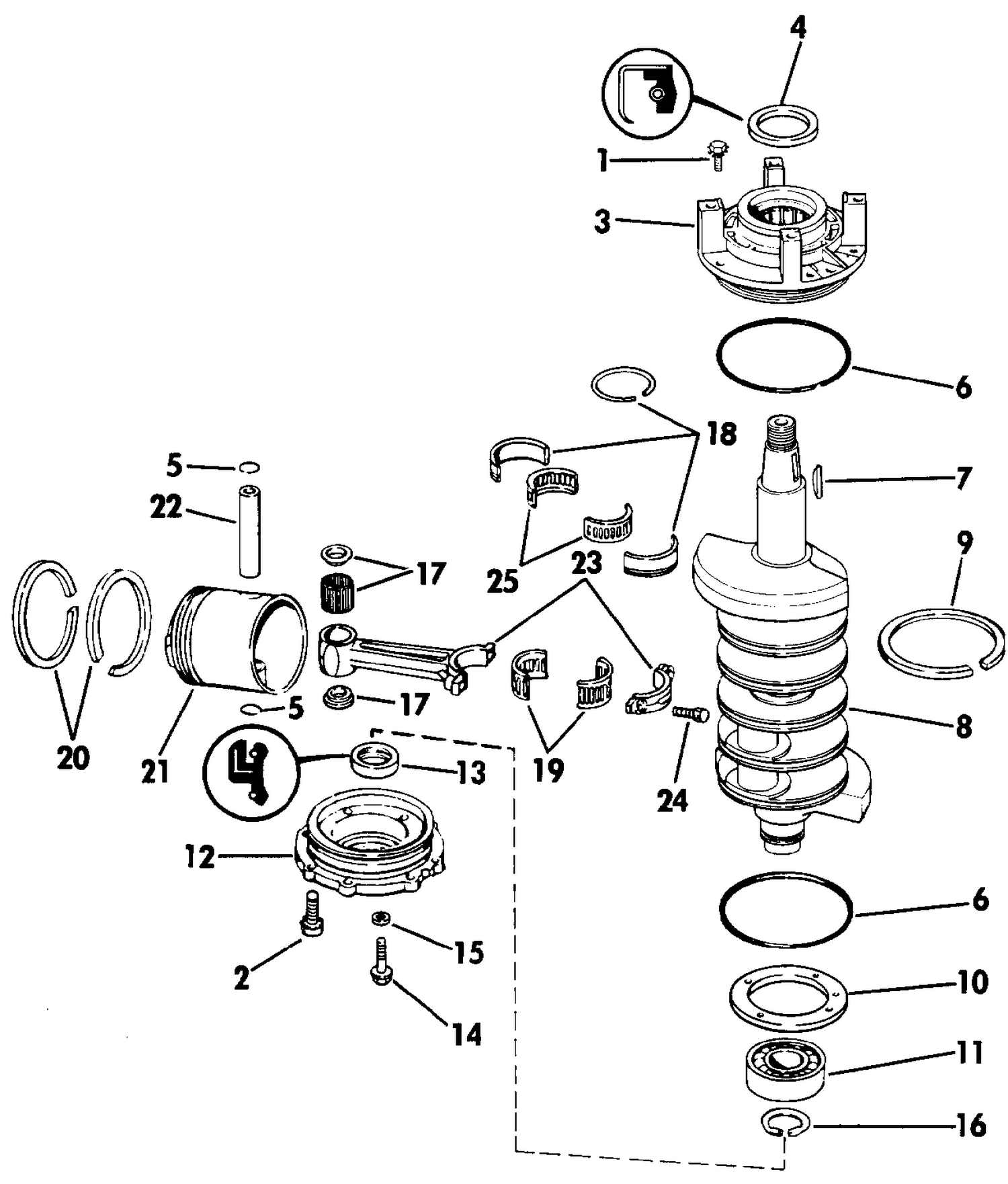

CRANKSHAFT & PISTON
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0307028 | SCREW |
| 2 | 0309924 | SCREW |
| 3 | 0387432 | CRANKCASE HEAD BRG. ASSY. |
| 5 | 0317831 | Circlip |
| 6 | 0305123 | O RING |
| 8 | 0396255 | CRANKSHAFT ASSY |
| 9 | 0319244 | JOINT ANNULAIRE |
| 10 | 0317762 | PALTE,Lower bearing |
| 11 | 0385503 | BEARING , Ball |
| 12 | 0396254 | BEARING, Ball |
| 14 | 0317763 | SCREW & SEAL, Plate |
| 16 | 0308213 | RETAINING RING |
| 17 | 0395627 | BEARING & RETAINER |
| 18 | 0352960 | BEARING RACE, Center main This part replaces 0320499. |
| 19 | 0387787 | BEARING Assembly, Connecting rod |
| 20 | 0394930 | RING SET, Standard |
| 20 | 0396504 | RING SET, .030 O.S |
| 21 | 5006658 | Pstn&Ring Kit This part replaces 0393271. |
| 21 | 5006669 | Pstn&Ring Kit .030 This part replaces 0396588. |
| 22 | 0327861 | Wrist Pin |
| 23 | 5006383 | CONNECTING ROD This part replaces 0392591. |
