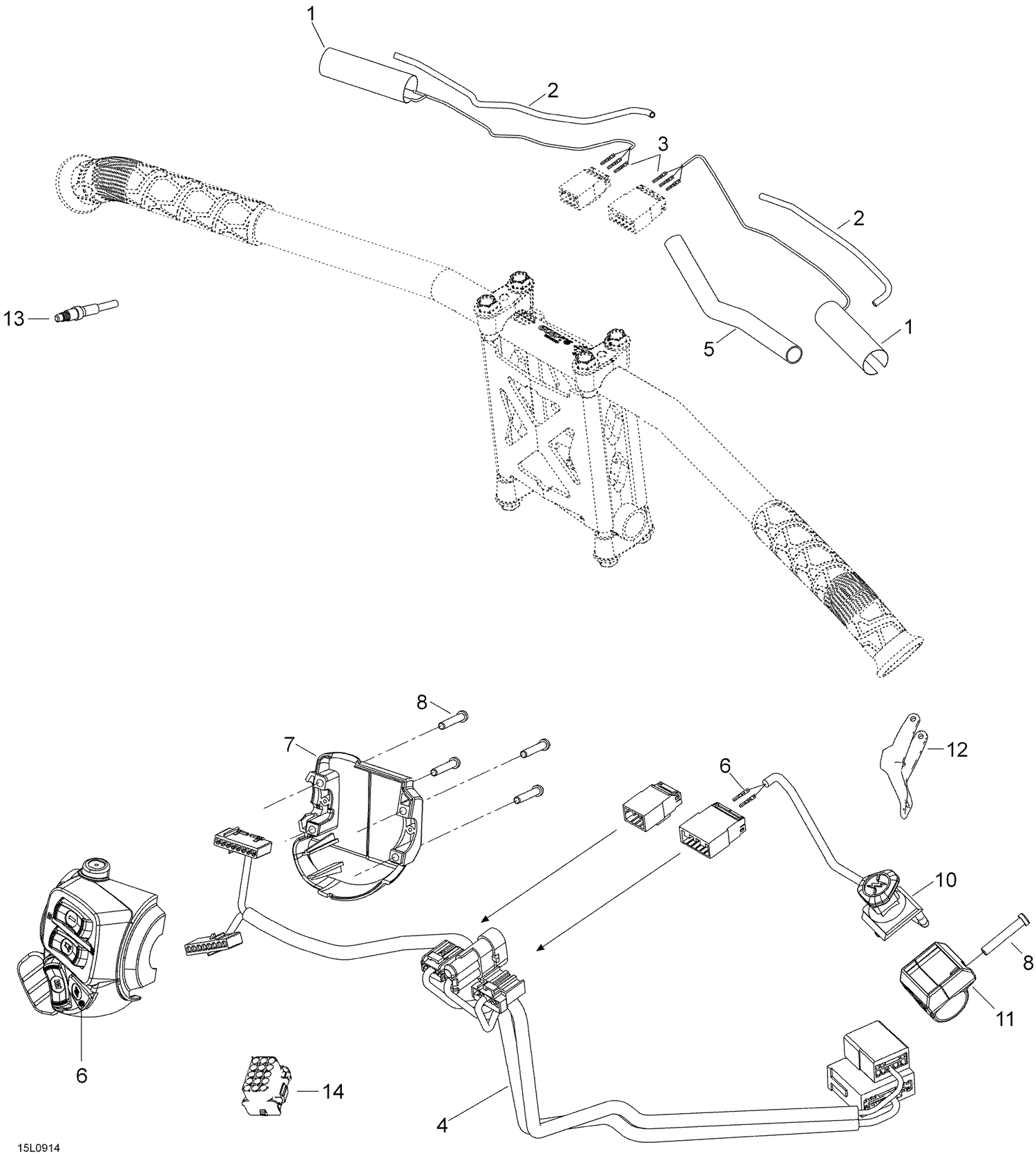

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership |
| 2 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 3 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 4 |
605353266 |
STEERING HARNESS - Call your local BRP dealership |
| 5 |
605353992 |
Tubing |
| 6 |
515177021 |
LH Switch Housing This part replaces 515176187. |
| 7 |
515175926 |
Switch housing plate |
| 8 |
40903 |
Plastofast-screw 3.5 x 25 |
| 10 |
605355686 |
Kill switch |
| 11 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. |
| 12 |
605354964 |
Throttle handle |
| 13 |
507032366 |
Microswitch |
