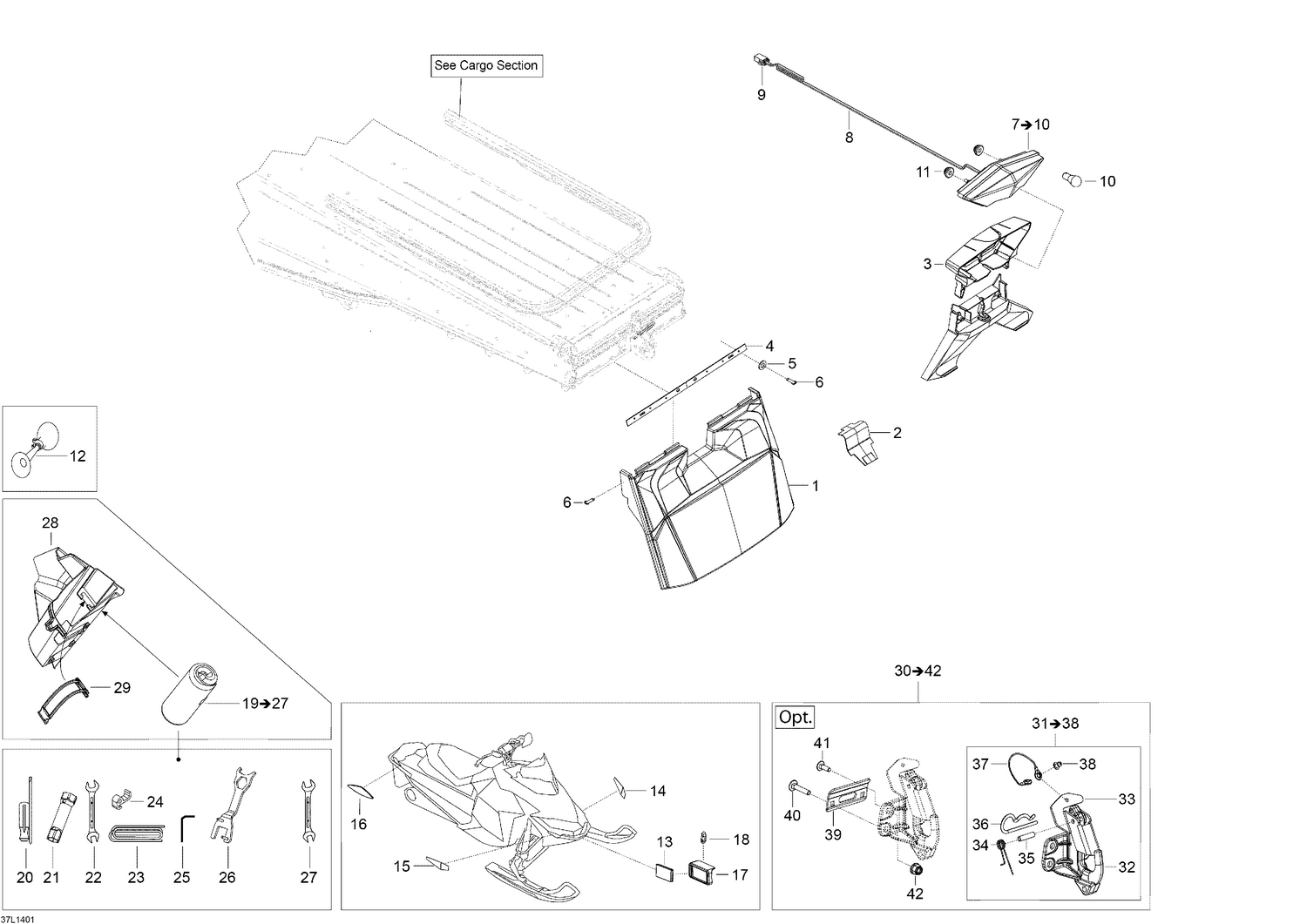

09- Utilities
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001415 | SNOW GUARD 400 LONG VIPER RED LOGO - Call your local BRP dealership |
| 2 | 520001182 | Snow Flap Cover |
| 3 | 511000764 | Rear Light Support |
| 4 | 520001020 | Fastening Plate |
| 5 | 250200025 | Washer M5 |
| 6 | 250000676 | Forming Screw M5 x 16 |
| 8 | 520000849 | Wiring Harness |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 520000758 | Bulb |
| 11 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 12 | 549011291 | Horn |
| 13 | 21118 | Reflector (Bright) |
| 14 | 520000719 | Reflector LH |
| 15 | 520000718 | Reflector RH |
| 16 | 705002423 | Reflector (Amber) |
| 17 | 520000871 | Reflector Support |
| 18 | 27120 | TIE RAP - Call your local BRP dealership |
| 20 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 21 | 529000046 | Socket Wrench (16/21mm) |
| 22 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 23 | 412500200 | Starter Rope |
| 24 | 529000060 | Starter Grip |
| 25 | 520001142 | Key |
| 26 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 27 | 34017 | Wrench (17/19mm) |
| 28 | 520000894 | Tool Kit Rack |
| 29 | 520000528 | Latch |
| 32 | 520001040 | Hook |
| 33 | 520001041 | LOCKING PLATE - Call your local BRP dealership |
| 34 | 545693 | SPRING - Call your local BRP dealership |
| 35 | 41012 | Spring Pin 6 x 30 |
| 36 | 41029 | Cotter Spring |
| 37 | 293750069 | Retainer Cable This part replaces 5446839. |
| 38 | 390909100 | Avex Rivet |
| 39 | 520000727 | Plate |
| 40 | 207784044 | Screw M8 x 40 |
| 41 | 207782544 | Screw M8 x 25 |
