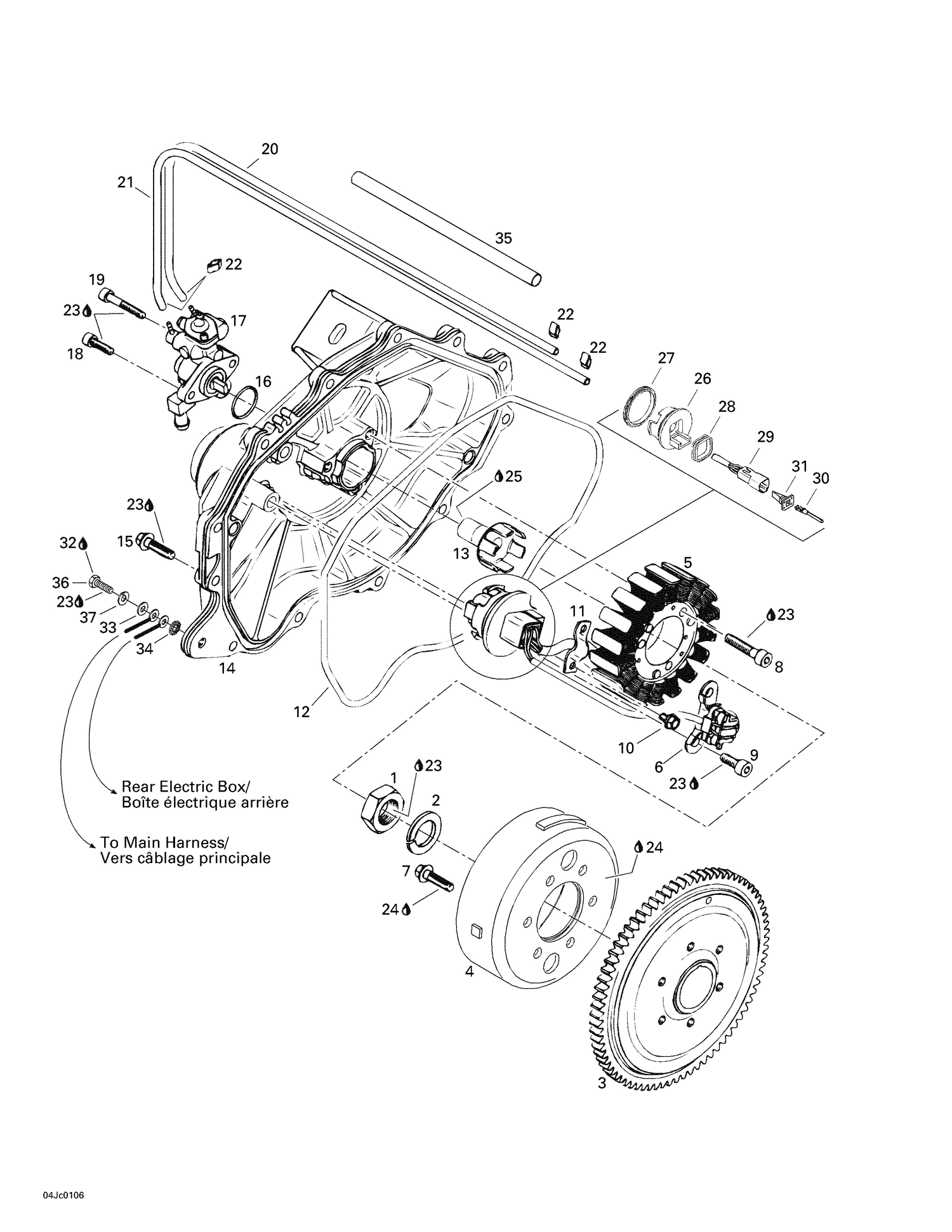

03- Magneto, Oil Pump
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420942220 | HEX. NUT M18 - Call your local BRP dealership |
| 2 | 290945757 | Lock Washer 18 mm |
| 3 | 290966682 | FLYWHEEL HUB - Call your local BRP dealership |
| 4 | 290887945 | Magneto Flywheel |
| 5 | 290886588 | STATOR PLATE ASS'Y - Call your local BRP dealership |
| 6 | 420966832 | Sensor Ass'y This part replaces 290966832. |
| 7 | 290640171 | Socket Head Screw M6 x 16 |
| 8 | 205063044 | Socket Head Screw M6 X 30 |
| 9 | 420241237 | Socket Head Screw M6 x 16 This part replaces 420241236. |
| 10 | 207150844 | HEX. SCREW M5 X 8 - Call your local BRP dealership |
| 11 | 290853080 | Retainer Plate |
| 12 | 290931690 | O-Ring |
| 13 | 290837390 | Oil Pump Shaft |
| 14 | 290811066 | Ignition Cover |
| 15 | 290240033 | Hex. Flange Screw M6 x 25 |
| 16 | 293300018 | O-RING - Call your local BRP dealership |
| 17 | 290888690 | Oil Pump Ass'y |
| 18 | 205051660 | SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 19 | 290940888 | Socket Head Screw M5 x 30 |
| 20 | 219704404 | Oil Hose 1500Mm Long |
| 21 | 219704404 | Oil Hose 1500Mm Long |
| 22 | 290256408 | Clamp |
| 23 | 293800060 | Loctite 243, 10 ml |
| 24 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 25 | 413707000 | Dow Corning 111, 150 g |
| 26 | 270000138 | Adaptor |
| 27 | 293300033 | Gasket |
| 28 | 293200030 | Gasket |
| 29 | 710001539 | Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 30 | 278000631 | Male Terminal |
| 31 | 278000735 | Female Lock, 6 Circuits |
| 32 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 33 | 234062600 | Flat Washer M6, Stainless |
| 34 | 234461608 | External Serrated Lock Washer 6 mm |
| 35 | 290260437 | Protector Hose |
| 36 | 207162560 | Hex. Screw M6 X 25 |
| 37 | 234161601 | Lock Washer Helical M6 |
| 38 | 290889150 | Engine Gasket Set (Not Shown) |
