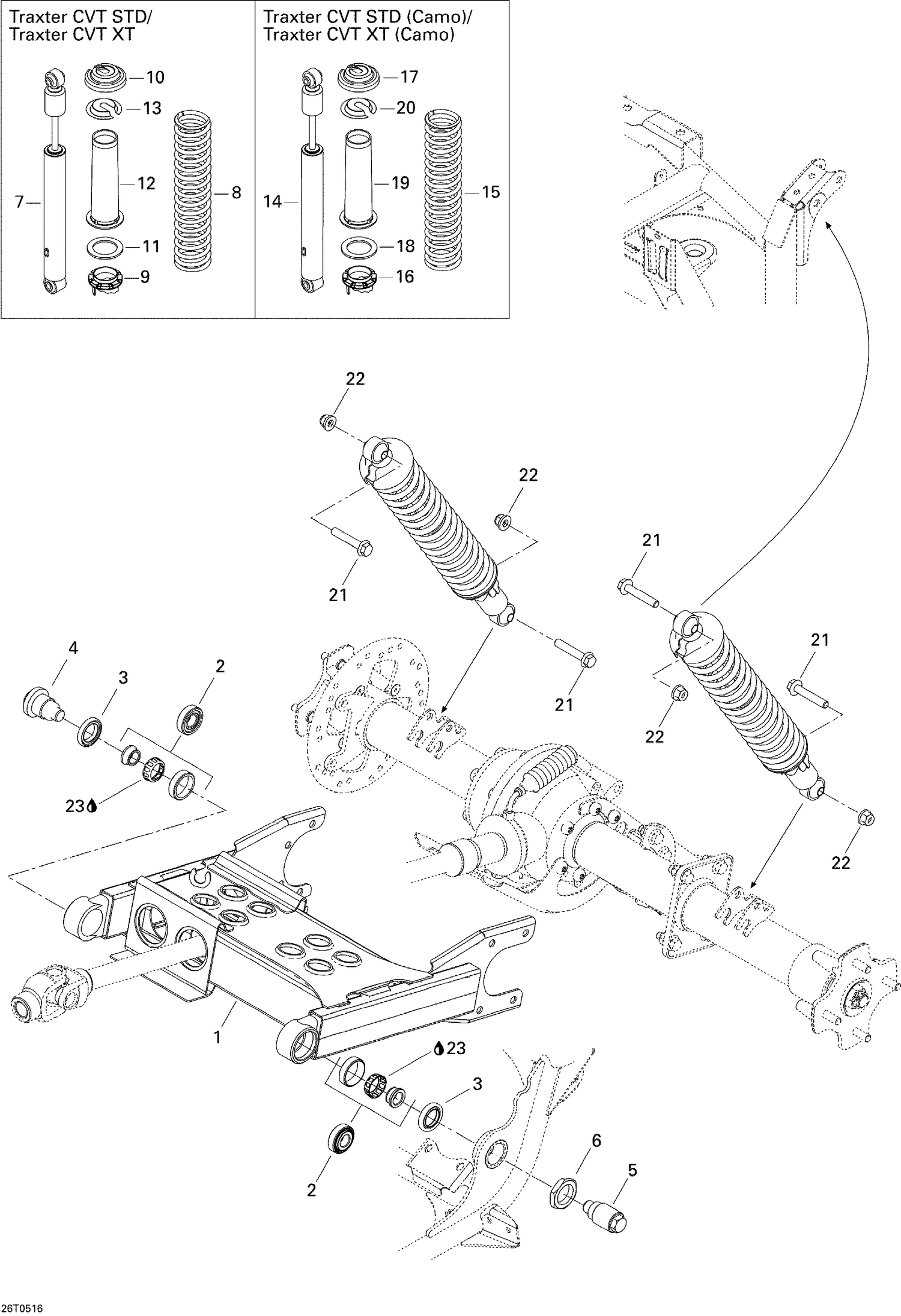

08- Rear Suspension
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706000298 | SWING ARM, BLACK - Call your local BRP dealership |
| 2 | 706000169 | CONE BEARING - Call your local BRP dealership |
| 3 | 706000010 | OIL SEAL - Call your local BRP dealership |
| 4 | 706000092 | RH Pivot Bolt |
| 5 | 706000093 | LH PIVOT BOLT - Call your local BRP dealership |
| 6 | 706000006 | HEX. JAM NUT - Call your local BRP dealership |
| 21 | 207605544 | Hex. Flange Screw M10 X 55 |
| 22 | 233201414 | Hex. Flange Elastic Nut M10 |
