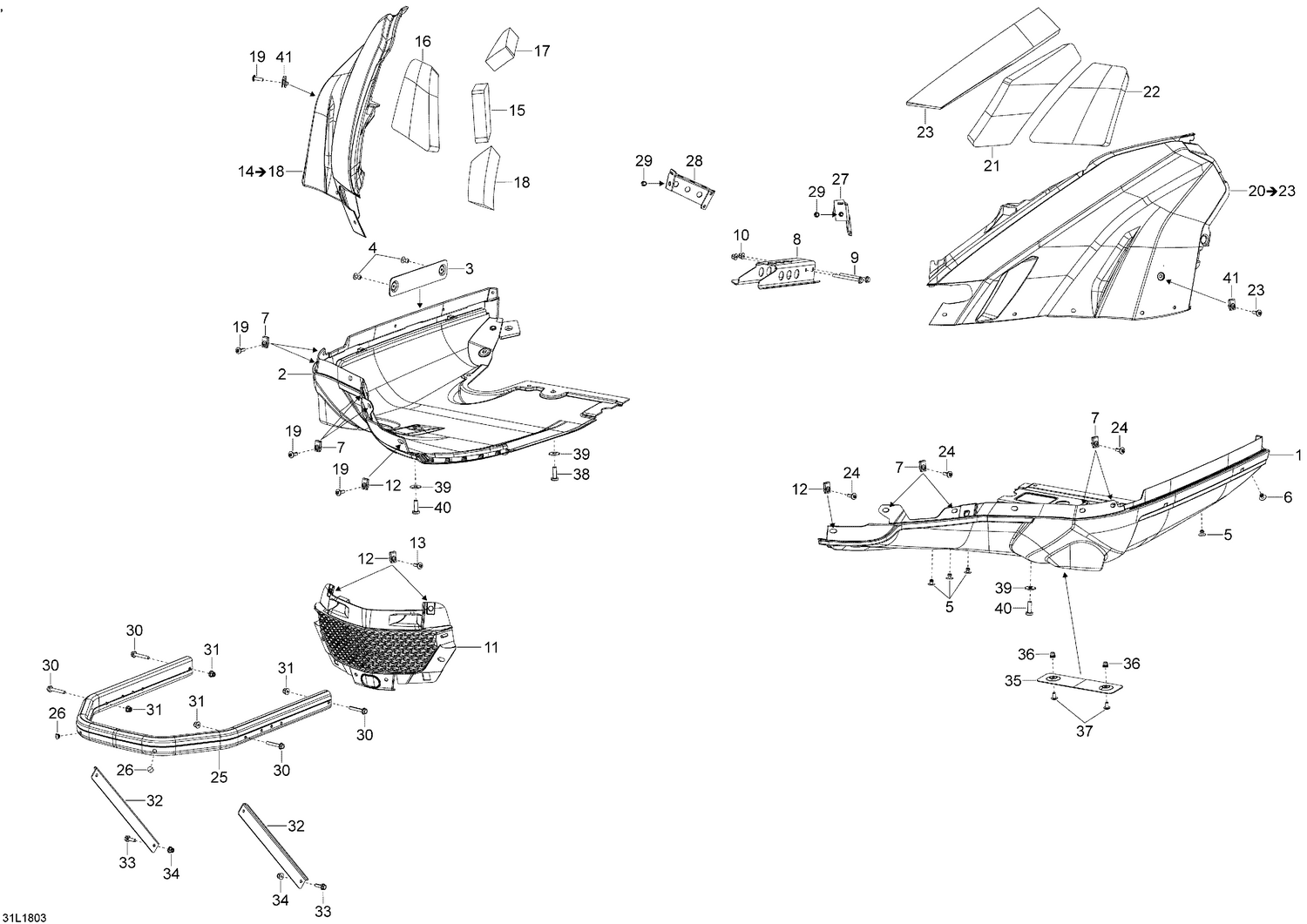

09- Bottom Pan 59 Yeti
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007836 | Bottom-pan Lower Lh. |
| 2 | 502007837 | Bottom-pan Lower Rh. |
| 3 | 502007255 | Heat Insulation Plate |
| 4 | 293150211 | Rivet |
| 5 | 293150104 | Pop Rivet 3/16 |
| 6 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 7 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 8 | 502007688 | Support |
| 9 | 207667056 | Hex. Flange Screw M6 x 70 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 502007140 | Front Grill |
| 12 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 13 | 250000722 | Torx Truss Screw M6 x 20 |
| 15 | 502007133 | Insulator |
| 16 | 502007132 | Insulator |
| 18 | 502007009 | Isolation |
| 19 | 250000722 | Torx Truss Screw M6 x 20 |
| 21 | 502007088 | Insulator |
| 22 | 502007131 | Insulator |
| 23 | 502007185 | Insulator |
| 24 | 250000722 | Torx Truss Screw M6 x 20 |
| 25 | 502007685 | Black Anod. Bumper |
| 26 | 293730047 | Black, Dart 8 mm |
| 27 | 502007535 | LH Bottom Pan Fastener |
| 28 | 502007536 | RH Bottom Pan Fastener |
| 29 | 605636003 | Clinch Nut M6 Hexsert |
| 30 | 207664044 | Hex. Flange Screw M6 X 40 |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 502006927 | Bumper Support |
| 33 | 207662044 | Hex. Flange Screw M6 X 20 |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 518328879 | Oil Plate |
| 36 | 605636003 | Clinch Nut M6 Hexsert |
| 37 | 250000722 | Torx Truss Screw M6 x 20 |
| 38 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 39 | 234082410 | Flat Washer 8 mm |
| 40 | 250000722 | Torx Truss Screw M6 x 20 |
