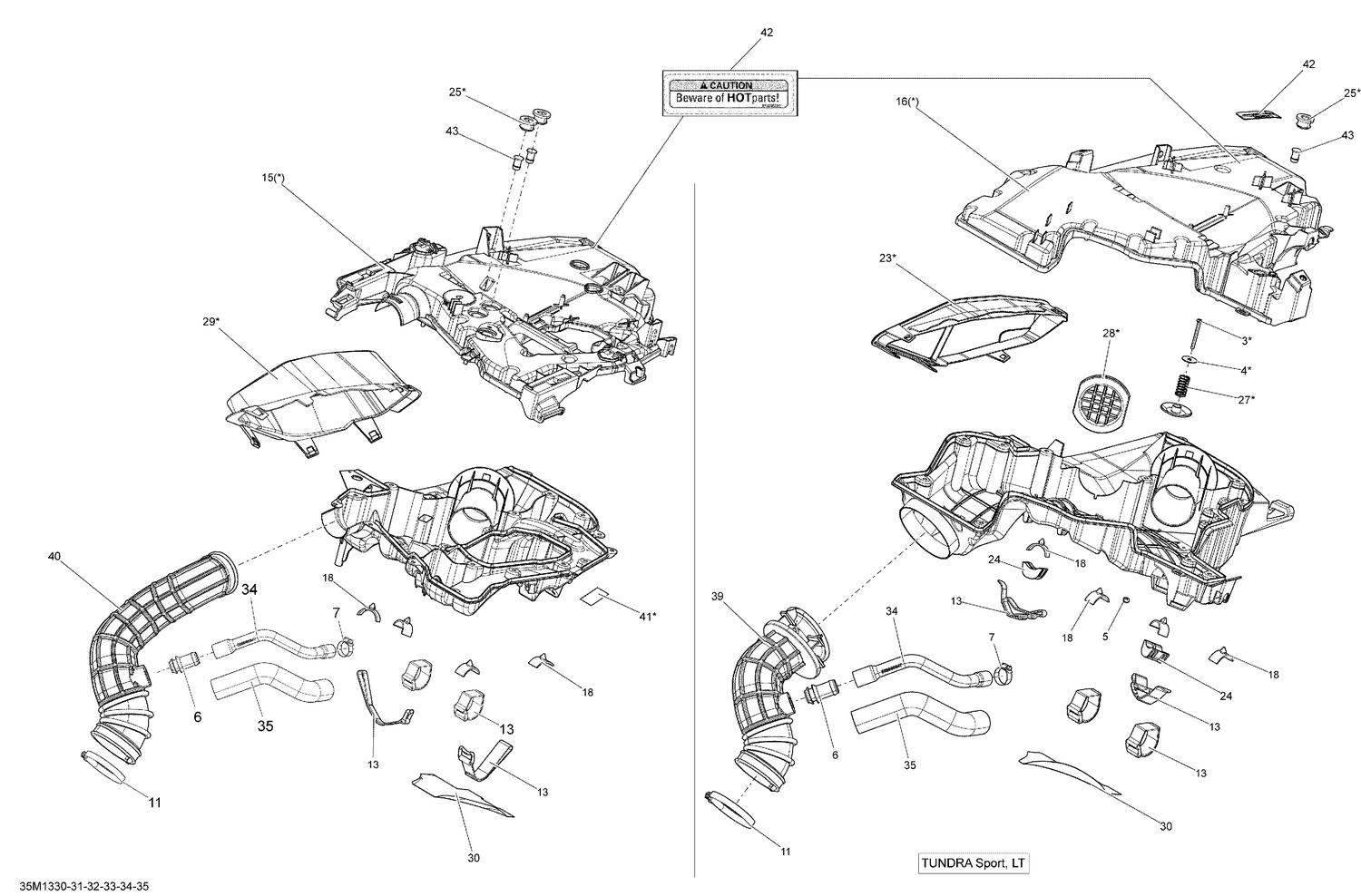

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 5 | XXX | Not Available As Spare Parts |
| 6 | 273000234 | Breather Valve |
| 7 | 293650172 | Tridon Gear Clamp |
| 11 | 293650212 | GEMI Clamp |
| 13 | 508000820 | Velcro Strip This part replaces 508000532. |
| 18 | 508000537 | Stopper |
| 24 | 508000572 | Bumper |
| 30 | 508000688 | RH Intake Air Filter |
| 34 | 508000647 | FORMED VENT HOSE - Call your local BRP dealership |
| 35 | 508000648 | Tube Isolator |
| 39 | XXX | Not Available As Spare Parts |
| 40 | 508000717 | AIR INTAKE HOSE - Call your local BRP dealership |
| 42 | 516005280 | Caution Decal Hot Parts |
