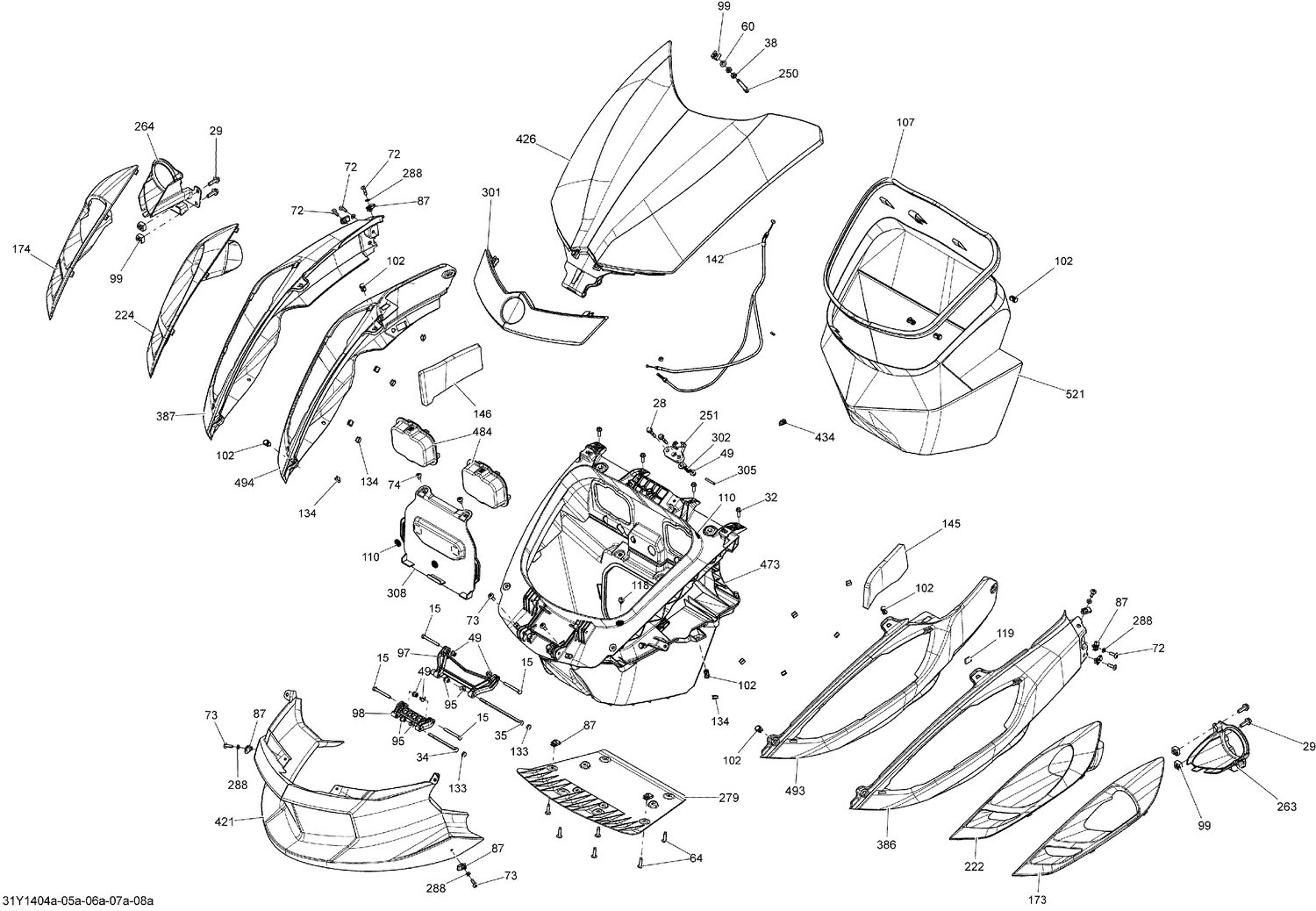

09- Body And Accessories Fr Storage_31Y1404a
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 207065544 | Hex. Screw M6 X 55 |
| 28 | 207663544 | Hex. Flange Screw M6 X 35 |
| 32 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 34 | 230060060 | Hex. Screw M6 X 100 |
| 35 | 230065060 | Hex. Screw M6 X 150 |
| 38 | 232180600 | Hex. Jam Nut M8 |
| 49 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 60 | 234081410 | Flat Washer 8 mm |
| 64 | 250000728 | Torx Screw M6 X 25 This part replaces 250000081. |
| 72 | 250000350 | Torx Truss Screw M6 X 20 |
| 73 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 74 | 250000454 | Torx Screw M6 X 12 |
| 87 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 95 | 269500706 | Sleeve |
| 97 | 269501481 | REAR ARM - Call your local BRP dealership |
| 98 | 269501482 | FRONT ARM - Call your local BRP dealership |
| 99 | 269501943 | Elastic Nut Housing M8 |
| 102 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 107 | 219704371 | Neoprene Seal 3000 mm Long |
| 110 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 118 | 293830005 | Rubber Bumper |
| 133 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 134 | 414479100 | Clip |
| 142 | 517305459 | HOOD CABLE - Call your local BRP dealership |
| 145 | 518325515 | LH FRONT PANEL FOAM - Call your local BRP dealership |
| 146 | 518325516 | RH FRONT PANEL FOAM - Call your local BRP dealership |
| 250 | 705002223 | Lug |
| 251 | 705007379 | Latch |
| 279 | 705002837 | Skid Plate |
| 288 | 705003207 | Plastic Washer |
| 302 | 705003911 | Spring |
| 305 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 308 | 705018040 | Battery Cover Ass'y This part replaces 705004628. |
| 434 | XXX | Not Available As Spare Parts |
| 473 | 705008320 | Storage Bin Ass'y |
| 484 | 705011444 | Fuse Cover Ass'y This part replaces 705007483. |
| 494 | 705007710 | PLATINUM SILVER RH FRONT PANNEL - Call your local BRP dealership |
