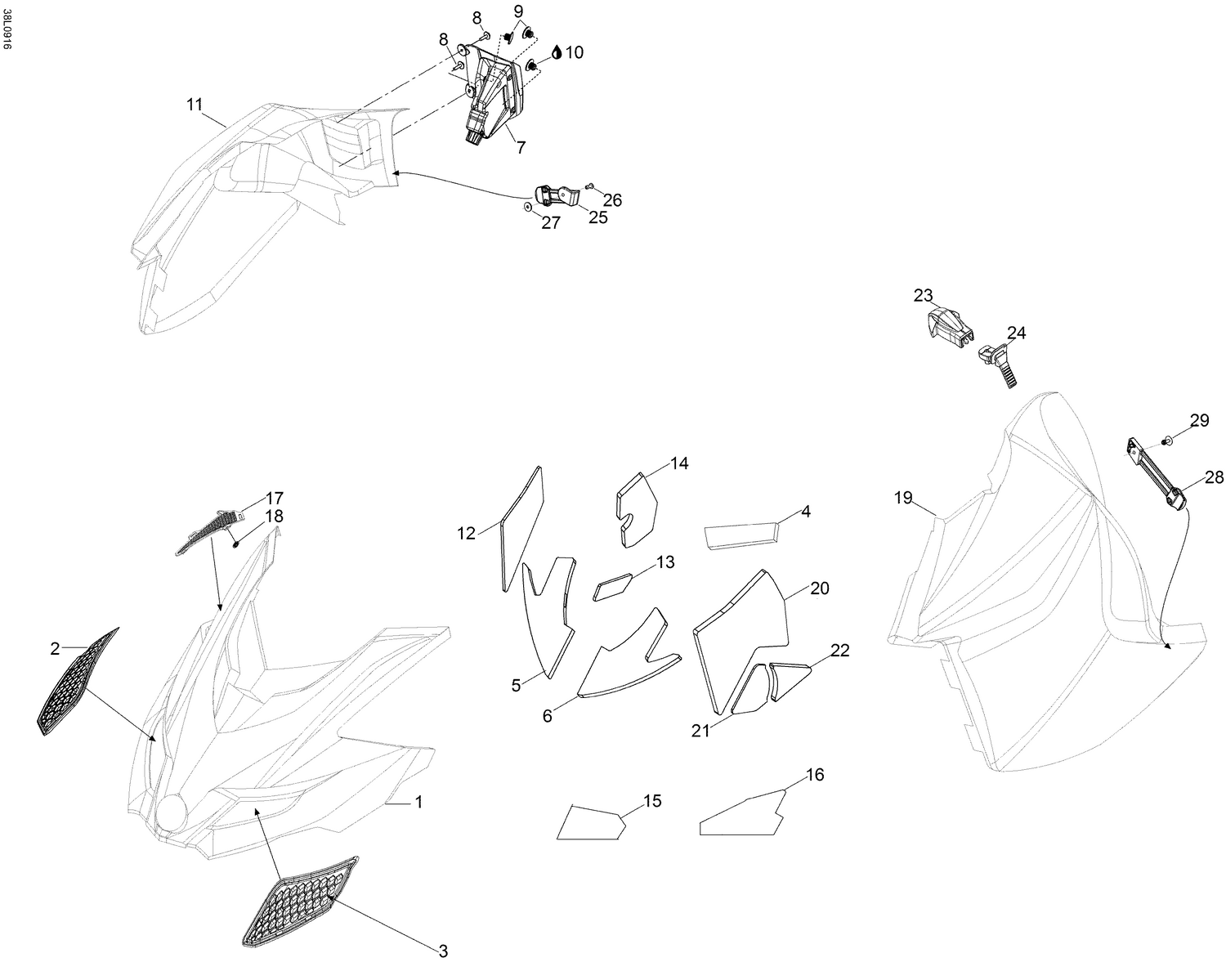

09- Hood
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517304141 | R.H. Hood grill |
| 3 | 517304008 | L.H. Hood grill |
| 6 | 517304321 | Foam |
| 7 | 517304322 | Console R.H. |
| 9 | 275500241 | Cap, black |
| 10 | 413408300 | Loctite, Black Max, 3 ml |
| 13 | 517304306 | Foam |
| 14 | 517304339 | Foam |
| 17 | 517304007 | Grill |
| 18 | 517302785 | Nut |
| 21 | 517304305 | Foam |
| 22 | 517304340 | Foam |
| 23 | 517304075 | End piece |
| 24 | 517303981 | Latch panel |
| 25 | 517303612 | Salpa |
| 26 | 390402300 | Rivet |
| 27 | 517124300 | Washer |
| 28 | 517303808 | Latch panel |
