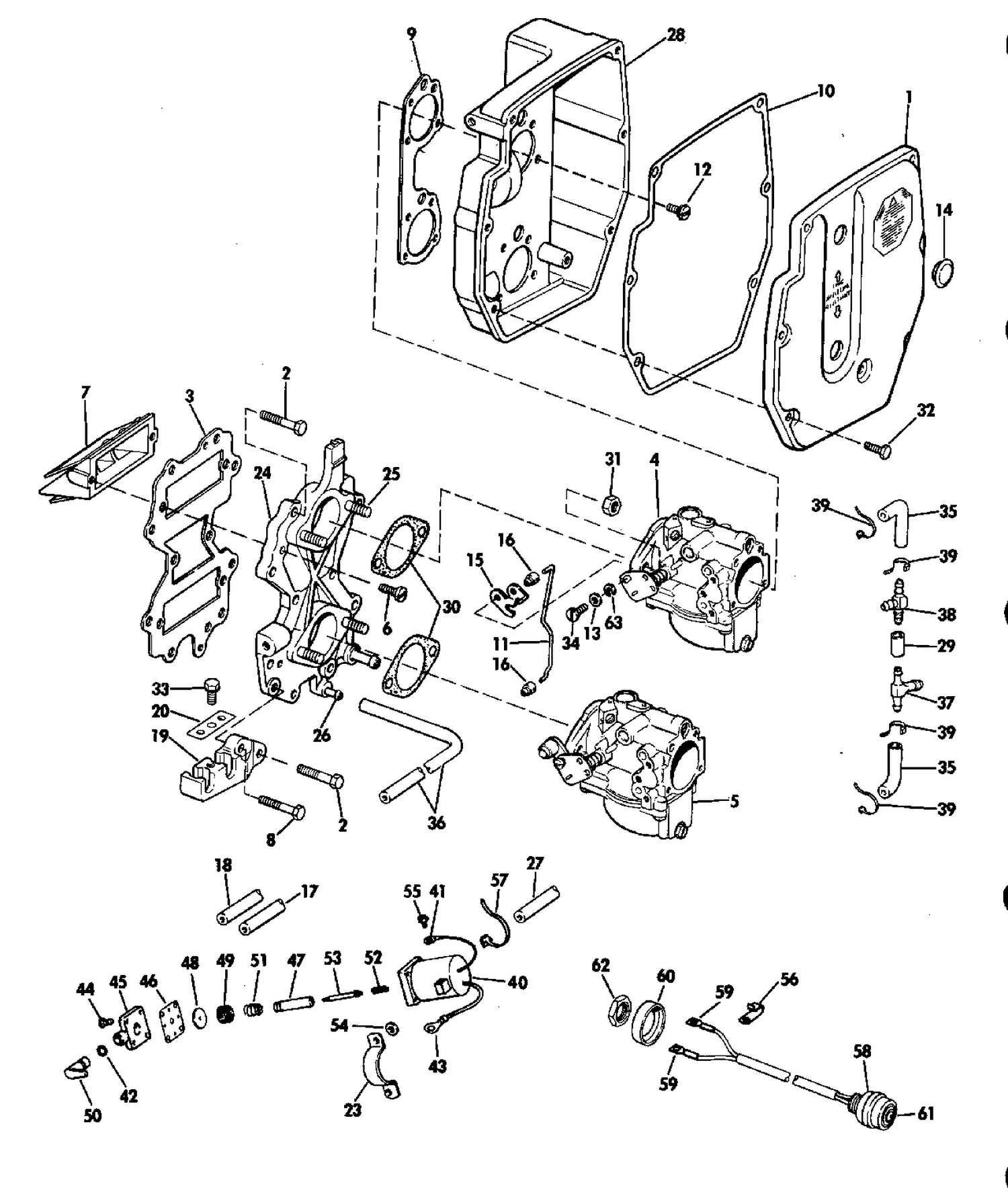

| Ref | Part Number | Description |
|---|
| 1 |
0388140 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
CARBURETOR |
ASSY.,Upper |
| 5 |
CARBURETOR |
ASSY.,Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE |
| 7 |
0389823 |
CLAPET |
| 8 |
0306418 |
VIS, ancrage |
| 9 |
0321497 |
GASKET, Air silencer |
| 10 |
0320679 |
GASKET, Base to cover |
| 11 |
0329888 |
LINK This part replaces 0321070. |
| 12 |
0327794 |
SCREW, Base to carburetor |
| 15 |
0321071 |
LEVER, Throttle adjustment |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 21 |
0329241 |
RONDELLE This part replaces 0305981. |
| 22 |
0310539 |
SCREW, Clamp choke solenoid |
| 23 |
0321218 |
CLAMP, Choke solenoid |
| 24 |
0391780 |
MANIFOLD ASSY |
| 24 |
0392684 |
MANIFOLD ASSY |
| 28 |
0322088 |
BASE |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 37 |
0326031 |
TEE, Carburetor hose |
| 39 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 40 |
5007356 |
Kit Ay This part replaces 0582111. |
| 45 |
0511807 |
COVER&GASKET AY |
| 46 |
0333448 |
GASKET This part replaces 0511808. |
| 48 |
0333448 |
GASKET This part replaces 0511810. |
| 56 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 58 |
0583927 |
PRIMER SWITCH This part replaces 0393798. |
