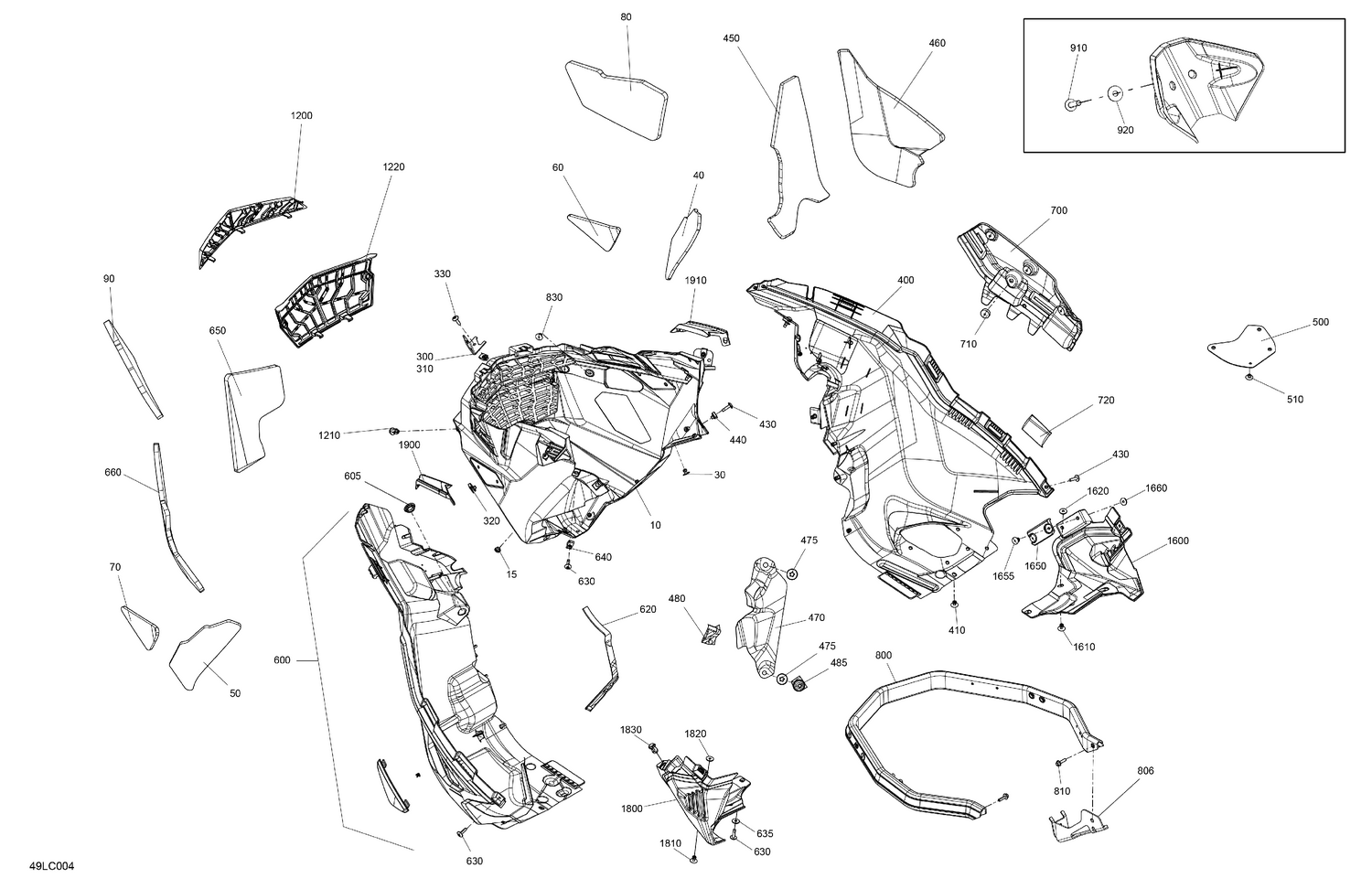

07- Body - Bottom Pan
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008521 | Front Bottom Pan |
| 15 | 293730047 | Black, Dart 8 mm |
| 30 | 293150104 | Pop Rivet 3/16 |
| 40 | 502007788 | Foam |
| 50 | 502007789 | Foam |
| 60 | 502007545 | RH Bottom Pan Central Foam |
| 70 | 502007546 | LH Bottom Pan Central Foam |
| 80 | 502007800 | Foam |
| 90 | 502007799 | Foam |
| 300 | 502007723 | LH Screw Plate |
| 310 | 502007724 | RH Screw Plate |
| 320 | 250000958 | Panel Nut M5 X 0.8 |
| 330 | 250000586 | Torx Truss M5 X 20 |
| 400 | 502007774 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 502008399 | RH Upper Bottom Pan Foam |
| 460 | 502008400 | RH Lower Bottom Pan Foam |
| 470 | 502007902 | Heat Shield |
| 475 | 508000853 | Push Nut |
| 480 | 44110 | Aluminum Foil |
| 485 | 44110 | Aluminum Foil |
| 500 | 502007901 | Plate |
| 510 | 293150103 | Pop Rivet 3/16 |
| 600 | 502007773 | LH Bottom Pan Ass'y |
| 605 | 518330527 | Bottom Pan Plug |
| 620 | 219704476 | Gasket, Neoprene 2000Mm Long |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 650 | 502008401 | LH Upper Bottom Pan Foam |
| 660 | 502008402 | LH Lower Bottom Pan Foam |
| 700 | 502008199 | Heat Shield |
| 710 | 502008149 | Stopper |
| 720 | 44110 | Aluminum Foil |
| 800 | 502008524 | Front Bumper |
| 806 | 502008380 | Horn Bracket |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16 |
| 910 | 250000758 | Torx Screw M6 X 25 |
| 920 | 234062670 | Flat Washer, Stainless |
| 1200 | 502007978 | Lower Pre Filter This part replaces 502008539. |
| 1210 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 502007977 | Upper Pre Filter This part replaces 502008543. |
| 1600 | 502007859 | RH Bottom Pan Corner 16 |
| 1610 | 293150104 | Pop Rivet 3/16 |
| 1620 | 517124300 | Washer |
| 1650 | 502007757 | Stopper |
| 1655 | 293150104 | Pop Rivet 3/16 |
| 1660 | 517124300 | Washer |
| 1800 | 502008031 | LH Bottom Pan Corner 16 |
| 1810 | 293150104 | Pop Rivet 3/16 |
| 1820 | 517124300 | Washer |
| 1830 | 293150230 | Tuflok Plastic Rivet |
| 1900 | 502008035 | LH Bottom Pan Deflector |
