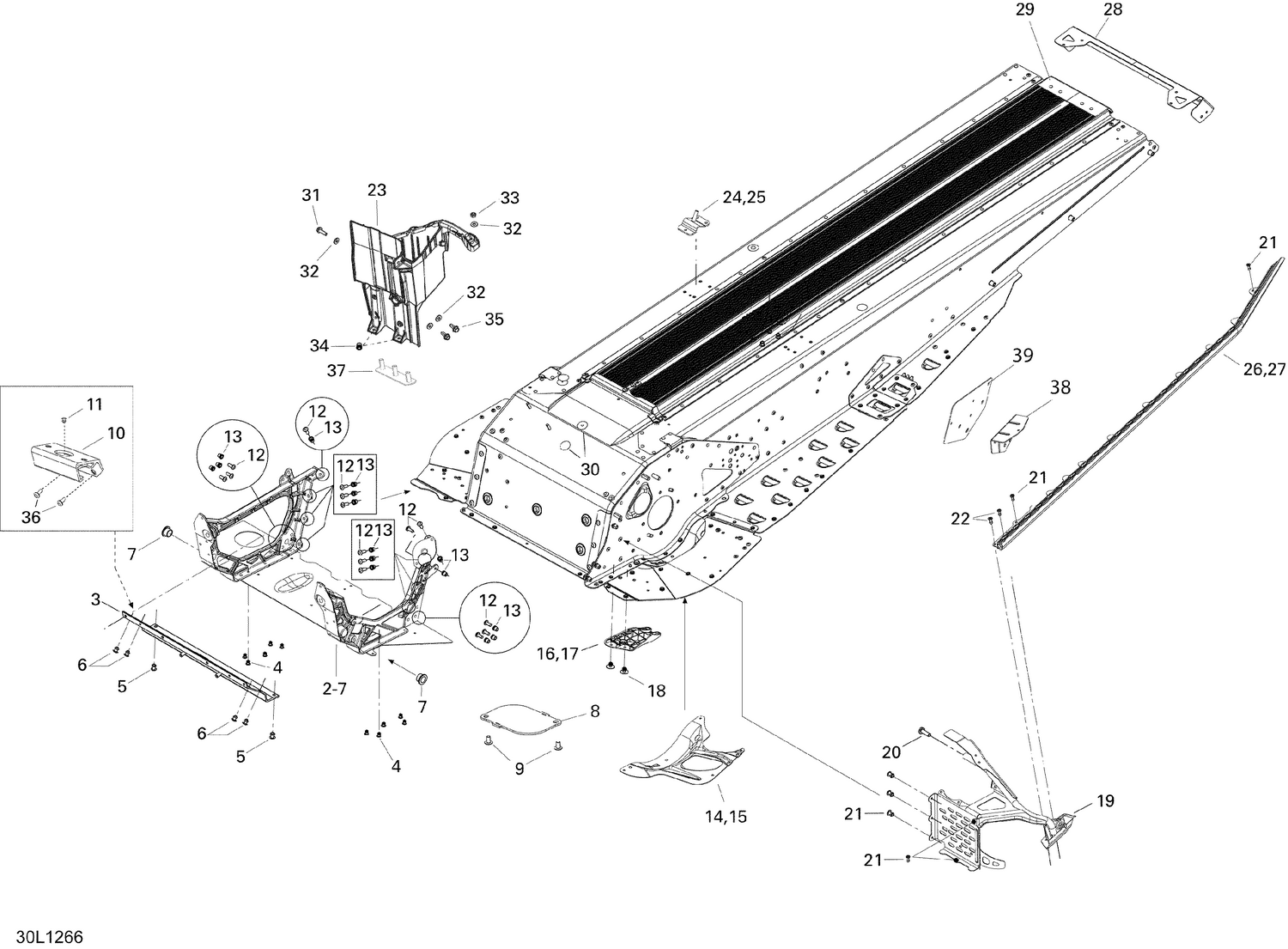

09- Frame — Parts Catalog

Ref	Part Number	Description
2	518326507	E Module
3	518326198	Front Member
4	390909100	Avex Rivet
5	293150120	Hemlock Rivet 6.5 mm
6	293150119	Hemlock Rivet, 6.5 mm
7	505072690	Leg Bushing
8	518326757	Oil Plate
9	250000767	Torx Truss Screw M6 X 12 This part replaces 250000325.
10	518326178	Engine Support
11	293150174	Hemlock Rivet, 6.4 mm
12	207662044	Hex. Flange Screw M6 X 20
13	233261414	Hex. Flange Elastic Nut M6 x 1.0
14	518324874	RH Reinforcement
15	518324875	LH Reinforcement
16	518325782	RH Deflector
17	518325783	LH Deflector
18	293150104	Pop Rivet 3/16
19	518327935	LH STIRUP - Call your local BRP dealership This part replaces 518326239.
20	250000752	Pan HD Torx Screw M8 x 25 This part replaces 250000248.
21	390909200	Avex Rivet
22	390402300	Pop Rivet 3/16"
23	518326472	Battery Support
24	518326421	RH Rear Base
25	518326443	LH Rear Base
26	518327068	LH Roller
27	518327069	RH Roller
28	518326362	Rear Plate
29	518326728	REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership
30	518325560	Adhesive Patch
31	210262040	Hex. Flanged Screw M6 X 20
32	250200039	Flat Washer
33	232561434	Elastic Stop Nut M6
34	233261414	Hex. Flange Elastic Nut M6 x 1.0
35	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
