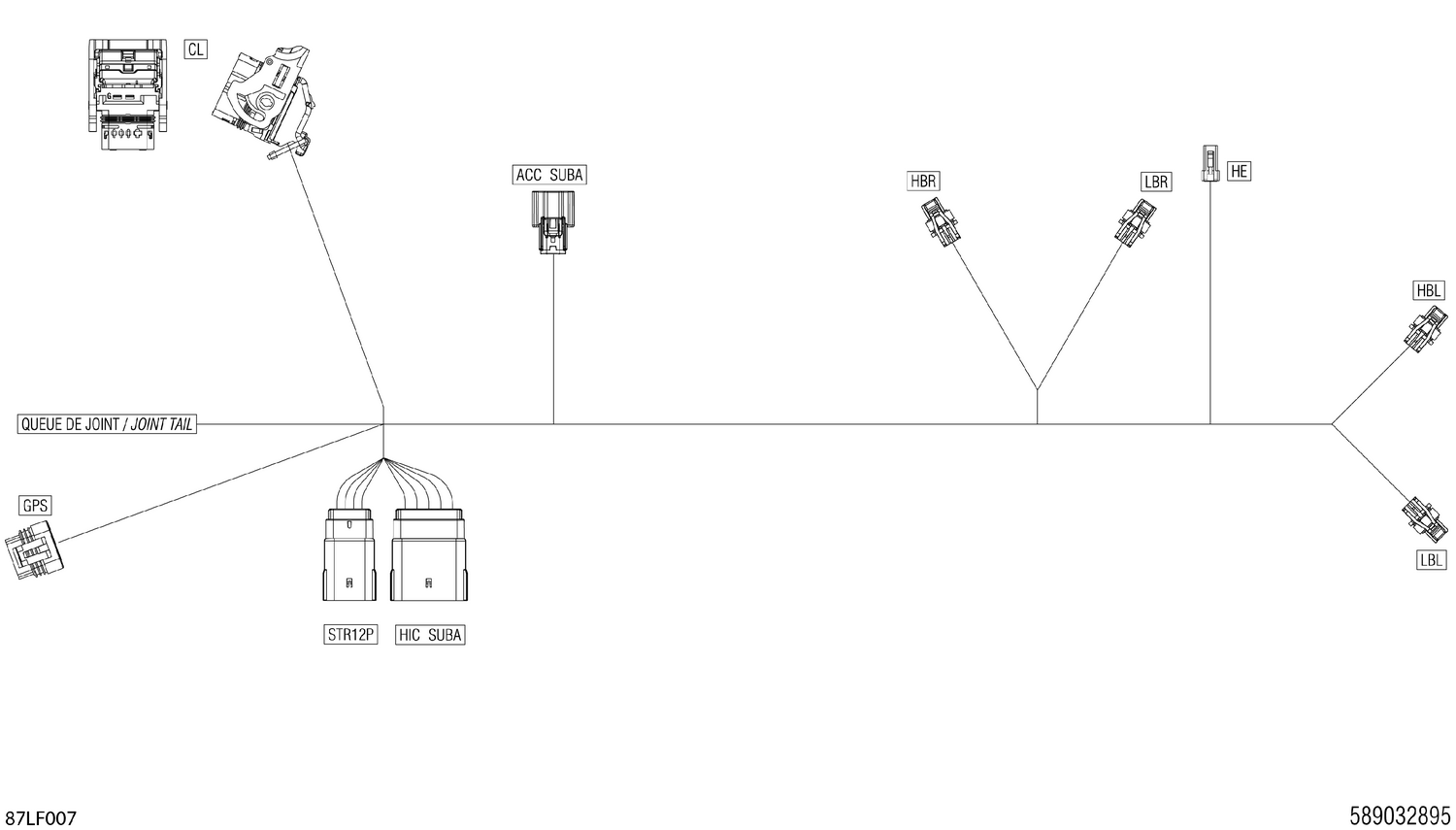

08- Electric - Hood Wiring Harness - 515179731
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| CL | 710001589 | Female Terminal |
| CL | 710001592 | Plug |
| CL | 710001593 | Plug |
| CL | 710001727 | Female Terminal |
| CL | 710007619 | Seal Joint |
| CL | 710007620 | Seal Joint |
| CL | 710007623 | Femal Terminal |
| CL | 710007650 | Cover |
| CL | 710007658 | Femal Terminal |
| CL | 710008036 | Female Molex Connector 53 Cavities |
| GPS | 278002299 | Female Terminal Housing 6 Circuits |
| GPS | 515175812 | Tulppa |
| GPS | 710001119 | Female Terminal |
| HBL | 710001152 | Lock |
| HBL | 710001163 | Wire Seal |
| HBL | 710001164 | Female Terminal |
| HBL | 710007660 | Housing |
| HBR | 710001152 | Lock |
| HBR | 710001163 | Wire Seal |
| HBR | 710001164 | Female Terminal |
| HBR | 710007660 | Housing |
| HE | 515175658 | Female Housing, 2 Circuits |
| HE | 710003896 | Female Terminal |
| HE | 710005056 | Cable |
| LBL | 515177192 | Female Housing, 2 Circuits |
| LBL | 710001152 | Lock |
| LBL | 710001163 | Wire Seal |
| LBL | 710001164 | Female Terminal |
| LBR | 515177192 | Female Housing, 2 Circuits |
| LBR | 710001152 | Lock |
| LBR | 710001163 | Wire Seal |
| LBR | 710001164 | Female Terminal |
| STR12P | 515178223 | Clip Connector |
| STR12P | 515178578 | Block 12 |
| 3800 | 515179731 | Hood Wiring Harness |
