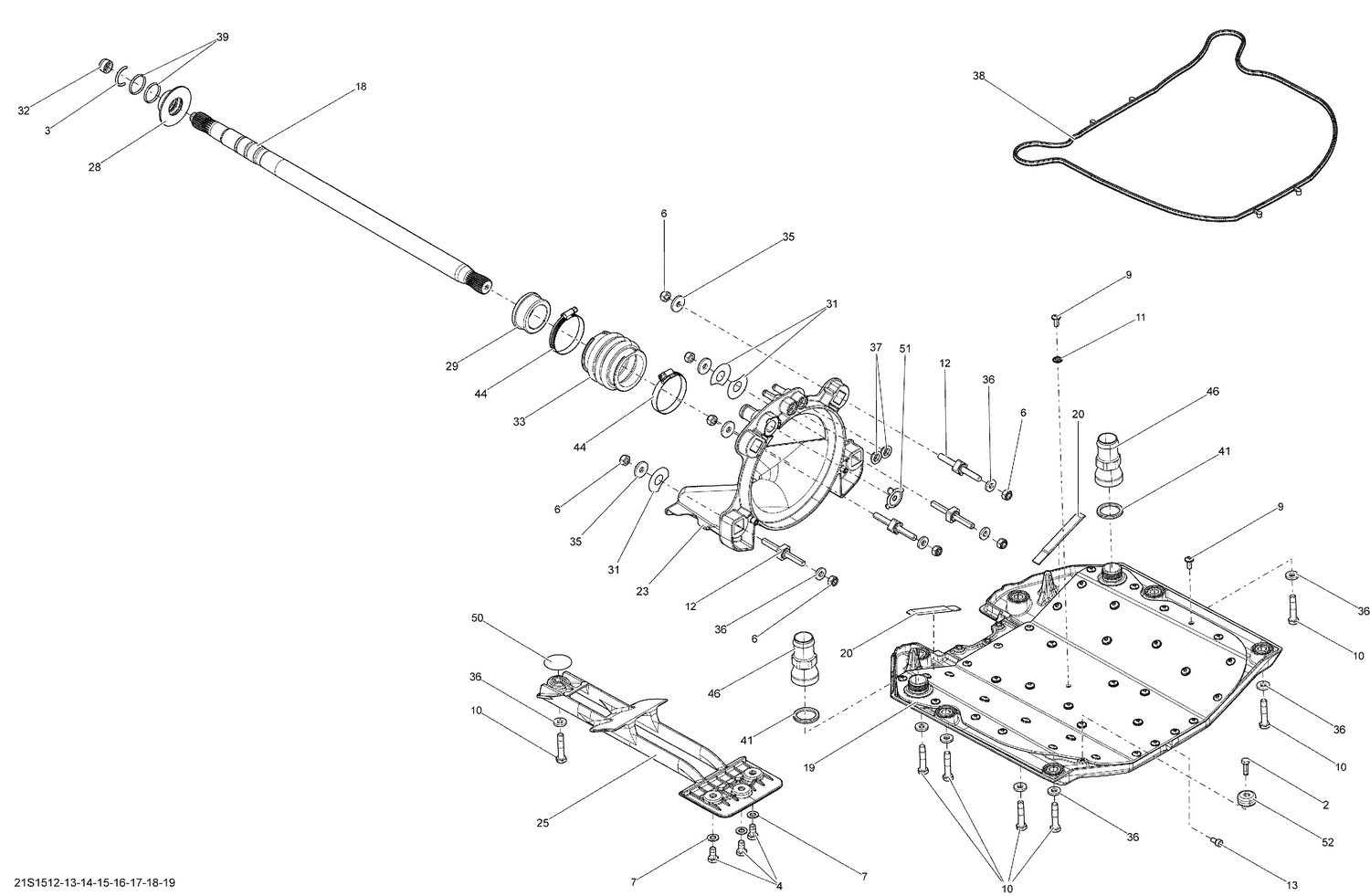

05- Propulsion _21S1512
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 3 | 271001575 | C-Clip |
| 4 | 207381660 | Hex. Screw M8 X 16, Scotch Grip |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass |
| 7 | 234081600 | Stainless, Flat Washer 8 mm |
| 9 | 250000384 | Torx Screw M6 X 14 |
| 10 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 11 | 250200114 | Sealing Washer |
| 12 | 250300046 | Square Stud |
| 13 | 250500005 | Socket Drain Plug M6 X 12 |
| 18 | 271001724 | Drive Shaft |
| 19 | 271001860 | Riding Plate Ass'y |
| 20 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 23 | 271001943 | Pump Support |
| 25 | 271001969 | Pump Grate This part replaces 271001763. |
| 28 | 295501200 | Carbon Ring Kit This part replaces 271001894. |
| 29 | 295501200 | Carbon Ring Kit This part replaces 271001901. |
| 31 | 272000053 | Shim 0.3 mm |
| 32 | 272000173 | Drive Shaft Plug |
| 33 | 271001902 | Bellow |
| 35 | 279000336 | Flat Washer This part replaces 279000164. |
| 36 | 293050001 | Flat Washer M8.5 x 18 |
| 37 | 293250084 | Watertight Seal |
| 38 | 293250235 | Seal |
| 39 | 293300044 | O-Ring |
| 41 | 293300121 | O-Ring |
| 46 | 293710111 | Straight Plastic Fitting |
| 50 | 293830047 | PROTECTOR DISK - Call your local BRP dealership |
| 51 | 271002029 | Reducer, Green This part replaces 271001903. |
