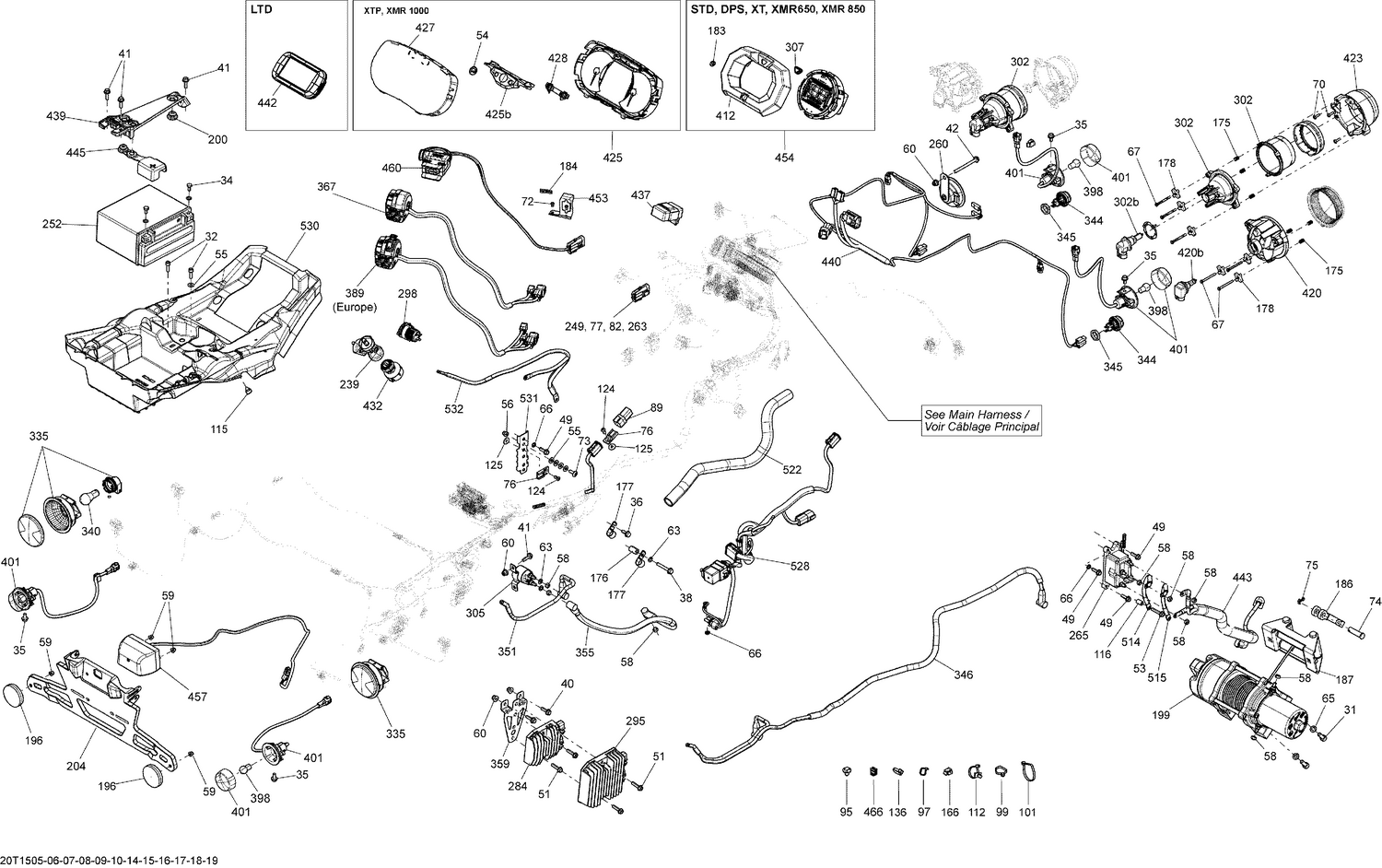

10- Electrical System _20T1505

10- Electrical System _20T1505

Parts (77)

RefPart NumberDescription
32 205562044 Socket Head Screw M6 X 20, Scotch Grip
34 250000282 Battery Bolt Kit
35 XXX Not Available As Spare Parts
36 XXX Not Available As Spare Parts
38 207564044 Hex. Flange Screw M6 X 40, Scotch Grip
40 207662044 Hex. Flange Screw M6 X 20
41 207662054 Hex. Flange Screw M6 X 20
42 XXX Not Available As Spare Parts
51 210262550 Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
54 XXX Not Available As Spare Parts
55 224061121 Flat Washer
56 232361493 Domed Nut M6
58 232561434 Elastic Stop Nut M6
59 XXX Not Available As Spare Parts
60 233261414 Hex. Flange Elastic Nut M6 x 1.0
63 234161601 Lock Washer Helical M6
67 250000718 Hex. Screw K40 X 45
70 250000723 Phillips Screw K40 X 16
73 250000717 Torx Head Screw M6 X 16
76 270000141 Clip
89 710003006 Housing
95 293730040 Mount Dart
97 293750001 Tie Wrap 94 mm
99 293750002 Tie Wrap 142 mm
101 293750008 Tie Wrap 368 mm
112 XXX Not Available As Spare Parts
115 293830005 Rubber Bumper
124 390402300 Pop Rivet 3/16"
125 391301600 Washer
136 414115200 Tie-Rap 180 mm
166 414227300 Clip
175 517168600 Spring
176 517203200 Spacer
177 518321570 Open Clamp
178 572106600 Handle
196 XXX Not Available As Spare Parts
200 705014429 Rubber Stopper This part replaces 705003666.
204 XXX Not Available As Spare Parts
239 710000817 Black, Electronic Key
239 710002183 Grey, Electronic Key
252 410301203 Battery YUASA YTX20L
260 XXX Not Available As Spare Parts
263 710000992 Clip
284 XXX Not Available As Spare Parts
298 710001248 DC Outlet
302 710002525 High Beam Ass'y
302b 415129249 Halogen Bulb
305 710007777 Starter Relay This part replaces 710001364.
307 710001473 Button
335 710001645 Tail Light Ass'y
344 XXX Not Available As Spare Parts
345 XXX Not Available As Spare Parts
355 710001750 POSITIVE CABLE - Call your local BRP dealership
359 710001752 Rectifier Support
389 710004040 Multi-Function Handle
398 Not Available As Spare Part - Bulb
401 XXX Not Available As Spare Parts
420 710006177 Low Beam This part replaces 710002191.
420b 715900141 Bulb 12V 55W
423 710002291 RH High Front Housing
423 710002292 LH High Front Housing
425 XXX Not Available As Spare Parts
425b XXX Not Available As Spare Parts
427 XXX Not Available As Spare Parts
428 XXX Not Available As Spare Parts
432 710008400 Ignition Switch This part replaces 710003847.
437 XXX Not Available As Spare Parts
439 710009129 Retaining Plate This part replaces 710002404.
440 XXX Not Available As Spare Parts
442 XXX Not Available As Spare Parts
445 710006729 Battery Cable Cap This part replaces 710002569.
457 XXX Not Available As Spare Parts
466 710002896 Tie-Rap Clip
522 XXX Not Available As Spare Parts
528 XXX Not Available As Spare Parts
530 710008370 Battery Support This part replaces 710003990.
531 710004118 Connector Bracket
