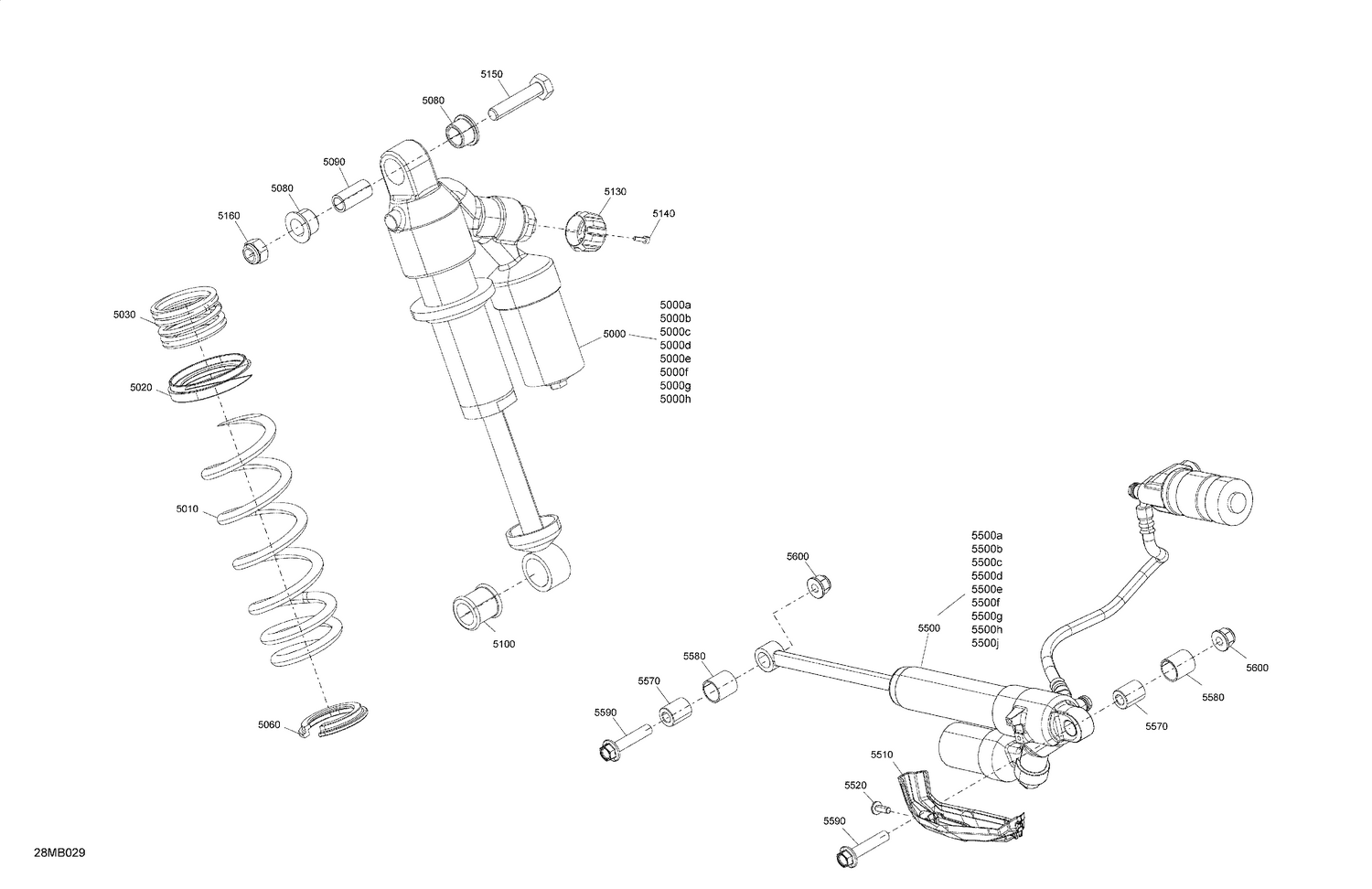

05- Suspension - Rear Shocks
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 415093807 | O-Ring |
| 5000b | 415093806 | Piston Ring |
| 5000c | 505070398 | Air Valve |
| 5000d | 505070399 | Screw |
| 5000e | 505070400 | O-Ring |
| 5000f | 715900076 | Circlip - Call your local BRP dealership |
| 5000g | 415093804 | O-Ring |
| 5000h | 415130165 | Base Valve |
| 5010 | 503193065 | Black, Spring (162mm) Long |
| 5020 | 503192743 | Spring Spacer |
| 5030 | 503193479 | Black, Spring (52mm) Short |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5130 | 503193033 | Shock Adjuster Knob |
| 5140 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070399 | Screw |
| 5500d | 505070400 | O-Ring |
| 5500e | 715900076 | Circlip - Call your local BRP dealership |
| 5500f | 415093804 | O-Ring |
| 5500g | 415093810 | Bolt |
| 5500h | 415038700 | O-Ring |
| 5500j | 415130165 | Base Valve |
| 5510 | 503196017 | Connector Guard |
| 5520 | 250000742 | Torx Screw M5 X 14 |
| 5570 | 503196509 | Axle Shock Absorber |
| 5575 | 503196596 | Axle Shock Absorber |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
| 5595 | 207204056 | Cap Screw Hex. M10 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
