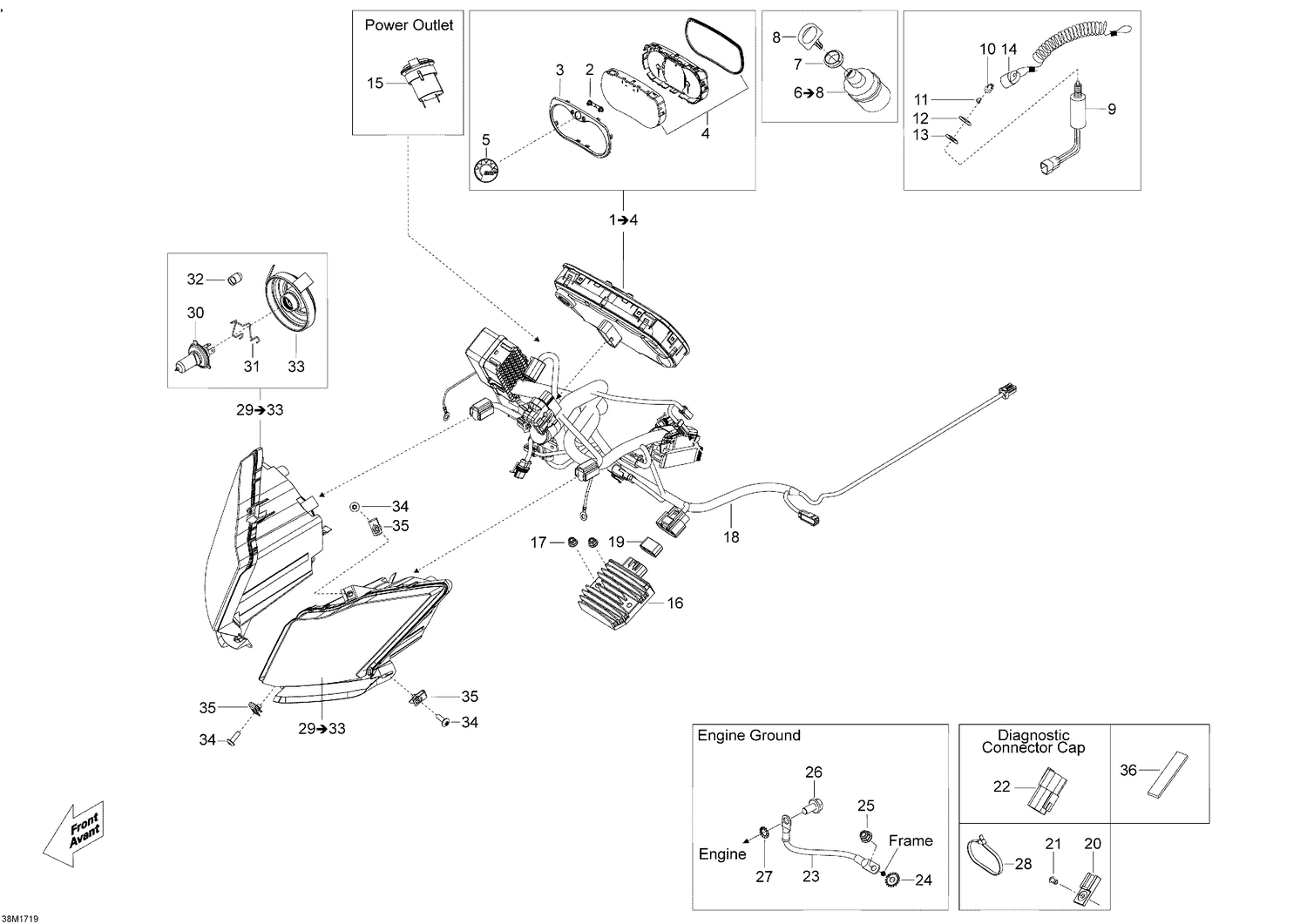

10- Electrical System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM |
| 7 | Not | Available As Spare Part - Nut |
| 8 | Not | Available As Spare Part - Blank Key |
| 9 | 515175653 | Brake Switch |
| 10 | 515145900 | Switch Nut |
| 11 | 570151100 | Plunger Cap |
| 12 | 250200084 | Flat Washer |
| 13 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 14 | 515178283 | Cap Ass'y This part replaces 515178145. |
| 15 | 710001248 | DC Outlet |
| 16 | 515176699 | Voltage Regulator |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 515177505 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 19 | 515176681 | Lock |
| 20 | 270000141 | Clip |
| 21 | 390402200 | Pop Rivet 3/16" |
| 22 | 710004904 | Connector Plug |
| 23 | 515176745 | Ground Wire |
| 24 | 250200041 | Lock Washer Serrated M6 |
| 25 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 26 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 27 | 234481608 | Serrated Lock Washer 8 mm |
| 28 | 293750001 | Tie Wrap 94 mm |
| 28 | 293750002 | Tie Wrap 142 mm |
| 28 | 293750008 | Tie Wrap 368 mm |
| 28 | 414115200 | Tie-Rap 180 mm |
| 30 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 31 | Not | Available As Spare Part - Bulb Holder |
| 32 | 515176498 | Cap |
| 33 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 34 | 250000722 | Torx Screw M6 X 20 |
| 35 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
