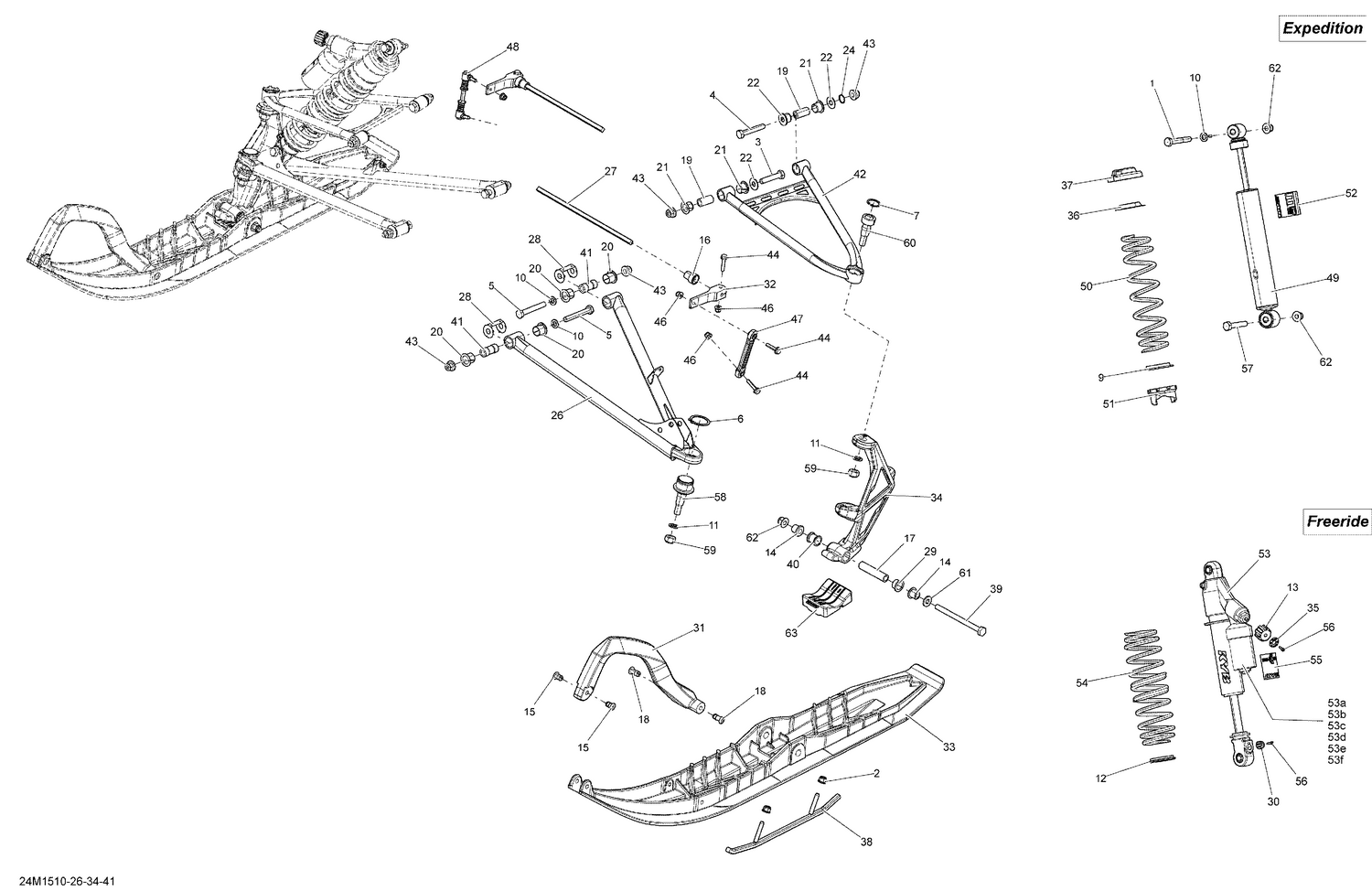

07- Front Suspension And Ski _24M1510
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 4 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 5 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 6 | 293370035 | Circlip |
| 7 | 293370070 | Circlip |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 503189564 | Washer |
| 11 | 503192491 | Washer |
| 12 | 503194270 | Spring Stopper This part replaces 503192608. |
| 13 | 503193025 | Adjustment Knob Ass'y |
| 14 | 505071781 | Ski Bushing |
| 15 | 505071812 | Retainer 17mm long |
| 16 | 505072786 | Bushing |
| 17 | 506133300 | Spacer |
| 18 | 505072133 | Retainer 23mm Long |
| 19 | 505072143 | Sleeve |
| 20 | 505072208 | Bushing |
| 21 | 505072250 | Bushing |
| 22 | 505072392 | Washer |
| 24 | 505072448 | O-Ring |
| 26 | 505072497 | Black, RH Lower Arm |
| 26 | 505072498 | Black, LH Lower Arm |
| 27 | 505073609 | Stabilisator |
| 28 | 505072634 | Wear Plate |
| 29 | 505072690 | Leg Bushing |
| 30 | 505072753 | Adjustment Knob |
| 31 | 505072976 | Black, Handle |
| 32 | 505073176 | Stabilisator Lever |
| 33 | 505073354 | Green, DS 2 Ski |
| 34 | 505073623 | MAGENTA LH SKI LEG - Call your local BRP dealership |
| 34 | 505073624 | MAGENTA RH SKI LEG - Call your local BRP dealership |
| 35 | 516004752 | Shock Knob Adjustment Decal |
| 36 | XXX | Not Available As Spare Parts |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 860201044 | Carbide Runner Kit (Square Runner) |
| 39 | 250000703 | Hex. Screw M10 X 130 |
| 40 | 503193651 | Spacer |
| 41 | 505072214 | Bushing |
| 42 | 505073468 | LH Upper Arm 39" |
| 42 | 505073469 | RH Upper Arm 39" |
| 43 | 250100165 | Hex. Flange Elastic Nut M10 |
| 44 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 46 | 233261466 | Hex. Flange Elastic Nut M6 |
| 47 | 505073172 | Double Ball Joint Link |
| 48 | 860200811 | Double Ball Joint Link |
| 49 | XXX | Not Available As Spare Parts |
| 50 | XXX | Not Available As Spare Parts |
| 51 | XXX | Not Available As Spare Parts |
| 52 | XXX | Not Available As Spare Parts |
| 53a | 415093804 | O-Ring |
| 53b | 505070400 | O-Ring |
| 53c | 505070399 | Screw |
| 53d | 505070398 | Air Valve |
| 53e | 415093806 | Piston Ring |
| 53f | 415093807 | O-Ring |
| 53g | 415130165 | Base Valve |
| 54 | 505072760 | Deep Black, Spring |
| 55 | 516005534 | Shock Adjustment Decal |
| 56 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 57 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 58 | 505073636 | Ball Joint This part replaces 505072682. |
| 59 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 60 | 505072913 | Upper Ball Joint |
| 61 | 503192496 | Washer |
| 62 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
