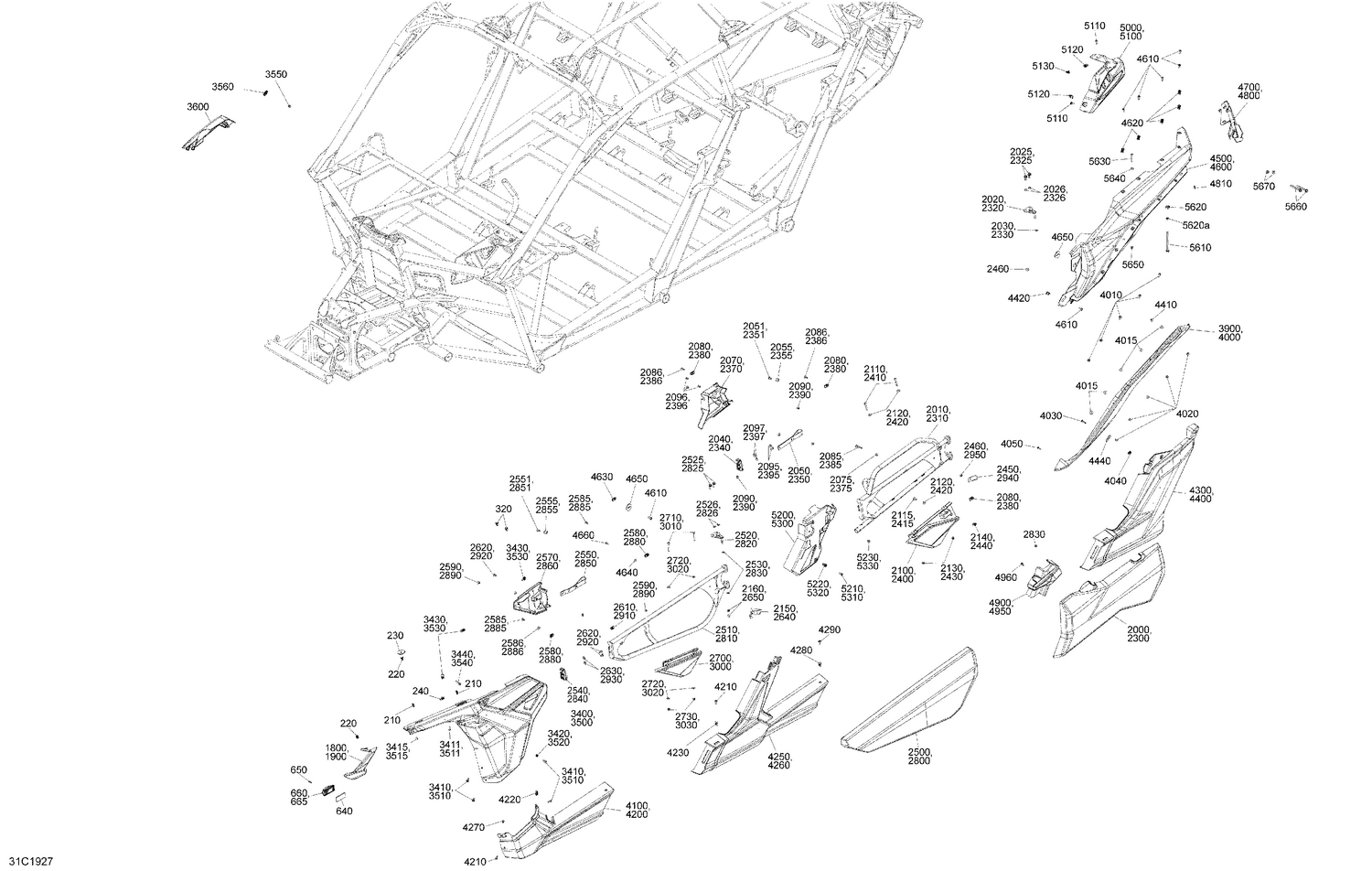

| Ref | Part Number | Description |
|---|
| 210 |
705010721 |
Clip |
| 220 |
517302785 |
Edge Clip |
| 230 |
705003841 |
Support Plate |
| 240 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 320 |
293150230 |
Tuflok Plastic Rivet |
| 640 |
520000271 |
Amber, Reflector |
| 650 |
250000720 |
Torx Screw K50 X 16 |
| 660 |
705011806 |
LH Reflector Support |
| 665 |
705011814 |
RH Reflector Support |
| 1800 |
705010628 |
LH Light Cover |
| 1900 |
705017566 |
RH Headlight Trim This part replaces 705010629. |
| 2000 |
705014356 |
Hyper Silver, LH Door Panel This part replaces 705012543. |
| 2020 |
705011187 |
Door Support |
| 2025 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2026 |
234081430 |
Flat Washer M8 |
| 2030 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2040 |
705013095 |
LH Latch This part replaces 705012183. |
| 2050 |
293850135 |
Belt |
| 2051 |
293150103 |
Pop Rivet 3/16" |
| 2055 |
293900104 |
Bushing |
| 2070 |
705011356 |
LH Latch Cover |
| 2075 |
234062670 |
Stainless Steel Flat Washer |
| 2080 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2085 |
250000748 |
Torx Screw M6 X 45 |
| 2086 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2090 |
293150103 |
Pop Rivet 3/16" |
| 2095 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2096 |
293150103 |
Pop Rivet 3/16" |
| 2097 |
224061121 |
Flat Washer |
| 2100 |
705011358 |
LH Lower Door Cover |
| 2110 |
250000749 |
Torx Truss Screw M6 X 50 |
| 2115 |
250000722 |
Torx Screw M6 X 20 |
| 2120 |
234062670 |
Stainless Steel Flat Washer |
| 2130 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 2140 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2150 |
293850129 |
Door Belt |
| 2160 |
293150103 |
Pop Rivet 3/16" |
| 2300 |
705012544 |
Silver, RH Door Panel |
| 2320 |
705011187 |
Door Support |
| 2325 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2326 |
234081430 |
Flat Washer M8 |
| 2330 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2340 |
705013096 |
RH Latch This part replaces 705012184. |
| 2350 |
293850135 |
Belt |
| 2351 |
293150103 |
Pop Rivet 3/16" |
| 2355 |
293900104 |
Bushing |
| 2370 |
705013860 |
RH Latch Cover This part replaces 705011357. |
| 2375 |
234062670 |
Stainless Steel Flat Washer |
| 2380 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2385 |
250000748 |
Torx Screw M6 X 45 |
| 2386 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2390 |
293150103 |
Pop Rivet 3/16" |
| 2395 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2396 |
293150103 |
Pop Rivet 3/16" |
| 2397 |
224061121 |
Flat Washer |
| 2400 |
705011359 |
Right Lower Door Cover |
| 2410 |
250000749 |
Torx Truss Screw M6 X 50 |
| 2415 |
250000722 |
Torx Screw M6 X 20 |
| 2420 |
234062670 |
Stainless Steel Flat Washer |
| 2430 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 2440 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2450 |
293850129 |
Door Belt |
| 2460 |
293150103 |
Pop Rivet 3/16" |
| 2500 |
705012466 |
Silver, LH Door Panel |
| 2520 |
705011187 |
Door Support |
| 2525 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2526 |
234081430 |
Flat Washer M8 |
| 2530 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2540 |
705013095 |
LH Latch This part replaces 705012183. |
| 2550 |
293850135 |
Belt |
| 2551 |
293150103 |
Pop Rivet 3/16" |
| 2555 |
293900104 |
Bushing |
| 2570 |
705013535 |
LH Latch Cover |
| 2580 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2585 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2586 |
234062670 |
Stainless Steel Flat Washer |
| 2590 |
293150103 |
Pop Rivet 3/16" |
| 2610 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2620 |
250000722 |
Torx Screw M6 X 20 |
| 2630 |
224061121 |
Flat Washer |
| 2640 |
293850129 |
Door Belt |
| 2650 |
293150103 |
Pop Rivet 3/16" |
| 2700 |
705010732 |
LH Lower Door Panel |
| 2710 |
250000749 |
Torx Truss Screw M6 X 50 |
| 2720 |
234062670 |
Stainless Steel Flat Washer |
| 2730 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 2800 |
705012467 |
Silver, RH Door Panel |
| 2820 |
705011187 |
Door Support |
| 2825 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2826 |
234081430 |
Flat Washer M8 |
| 2830 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2840 |
705013096 |
RH Latch This part replaces 705012184. |
| 2850 |
293850135 |
Belt |
| 2851 |
293150103 |
Pop Rivet 3/16" |
| 2855 |
293900104 |
Bushing |
| 2870 |
705013536 |
RH Latch Cover |
| 2880 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2885 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2886 |
234062670 |
Stainless Steel Flat Washer |
| 2890 |
293150103 |
Pop Rivet 3/16" |
| 2910 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2920 |
250000722 |
Torx Screw M6 X 20 |
| 2930 |
224061121 |
Flat Washer |
| 2940 |
293850129 |
Door Belt |
| 2950 |
293150103 |
Pop Rivet 3/16" |
| 3000 |
705010733 |
RH Lower Door Panel |
| 3010 |
250000749 |
Torx Truss Screw M6 X 50 |
| 3020 |
234062670 |
Stainless Steel Flat Washer |
| 3030 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 3400 |
715006594 |
Black, LH Front Lateral Panel Kit This part replaces 715004064. |
| 3410 |
250000722 |
Torx Screw M6 X 20 |
| 3411 |
250000712 |
Torx Screw M6 X 20 |
| 3412 |
250000807 |
Torx Truss Screw M6 X 25 |
| 3415 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 3430 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3440 |
250000868 |
Torx Truss M6 X 50 |
| 3500 |
715004074 |
RH Front Lateral Panel Kit |
| 3510 |
250000722 |
Torx Screw M6 X 20 |
| 3511 |
250000712 |
Torx Screw M6 X 20 |
| 3515 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 3530 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3540 |
250000868 |
Torx Truss M6 X 50 |
| 3550 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 3560 |
517303756 |
Grommet |
| 3600 |
705017564 |
Lateral Cover This part replaces 705010334. |
| 3900 |
705009511 |
LH Rear Fender Deflector |
| 4000 |
705017543 |
RH Rear Fender Deflector This part replaces 705009512. |
| 4010 |
250000722 |
Torx Screw M6 X 20 |
| 4015 |
234062670 |
Stainless Steel Flat Washer |
| 4020 |
233161464 |
Hex. Elastic Flange Nut M6 |
| 4030 |
250000807 |
Torx Truss Screw M6 X 25 |
| 4040 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4050 |
250000720 |
Torx Screw K50 X 16 |
| 4100 |
705009513 |
LH Central Lateral Panel |
| 4200 |
705009514 |
RH Central Lateral Panel This part replaces 705009514. |
| 4210 |
250000722 |
Torx Screw M6 X 20 |
| 4220 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4230 |
705016606 |
Insert This part replaces 705010872. |
| 4250 |
705015741 |
LH Rear Central Lateral Panel This part replaces 705011368. |
| 4260 |
705015742 |
RH Rear Central Lateral Panel This part replaces 705011369. |
| 4270 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4280 |
705016606 |
Insert This part replaces 705010872. |
| 4290 |
250000722 |
Torx Screw M6 X 20 |
| 4300 |
705010676 |
LH Rear Lateral Panel |
| 4400 |
705010677 |
Deep Black, RH Rear Lateral Panel |
| 4410 |
293150104 |
Pop Rivet 3/16" |
| 4420 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4440 |
705003841 |
Support Plate |
| 4500 |
705014344 |
Hyper Silver, LH Rear Fender This part replaces 705012468. |
| 4600 |
705014350 |
Hyper Silver, RH Rear Fender This part replaces 705012469. |
| 4610 |
250000722 |
Torx Screw M6 X 20 |
| 4620 |
705016606 |
Insert This part replaces 705010872. |
| 4630 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4640 |
234062670 |
Stainless Steel Flat Washer |
| 4650 |
705003841 |
Support Plate |
| 4660 |
250000720 |
Torx Screw K50 X 16 |
| 4700 |
705010686 |
LH Rear Lateral Cover |
| 4800 |
705010687 |
RH Rear Lateral Cover |
| 4810 |
250000720 |
Torx Screw K50 X 16 |
| 4960 |
250000722 |
Torx Screw M6 X 20 |
| 5000 |
705010335 |
LH Rear Cage Trim |
| 5100 |
705010336 |
RH Rear Cage Trim |
| 5110 |
250000722 |
Torx Screw M6 X 20 |
| 5120 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5130 |
293650268 |
Clip |
| 5200 |
705012601 |
Silver, LH Central Door Trim |
| 5210 |
250000722 |
Torx Screw M6 X 20 |
| 5220 |
705016606 |
Insert This part replaces 705010872. |
| 5230 |
293150103 |
Pop Rivet 3/16" |
| 5300 |
705012602 |
Silver RH Central Door Trim |
| 5310 |
250000722 |
Torx Screw M6 X 20 |
| 5320 |
705016606 |
Insert This part replaces 705010872. |
| 5330 |
293150103 |
Pop Rivet 3/16" |
| 5610 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 5620a |
232581200 |
Hex. Elastic Nut M8 Brass |
| 5630 |
250000868 |
Torx Truss M6 X 50 |
| 5640 |
234062670 |
Stainless Steel Flat Washer |
| 5650 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 5660 |
207687044 |
Hex. Flange Screw M8 X 70 |
