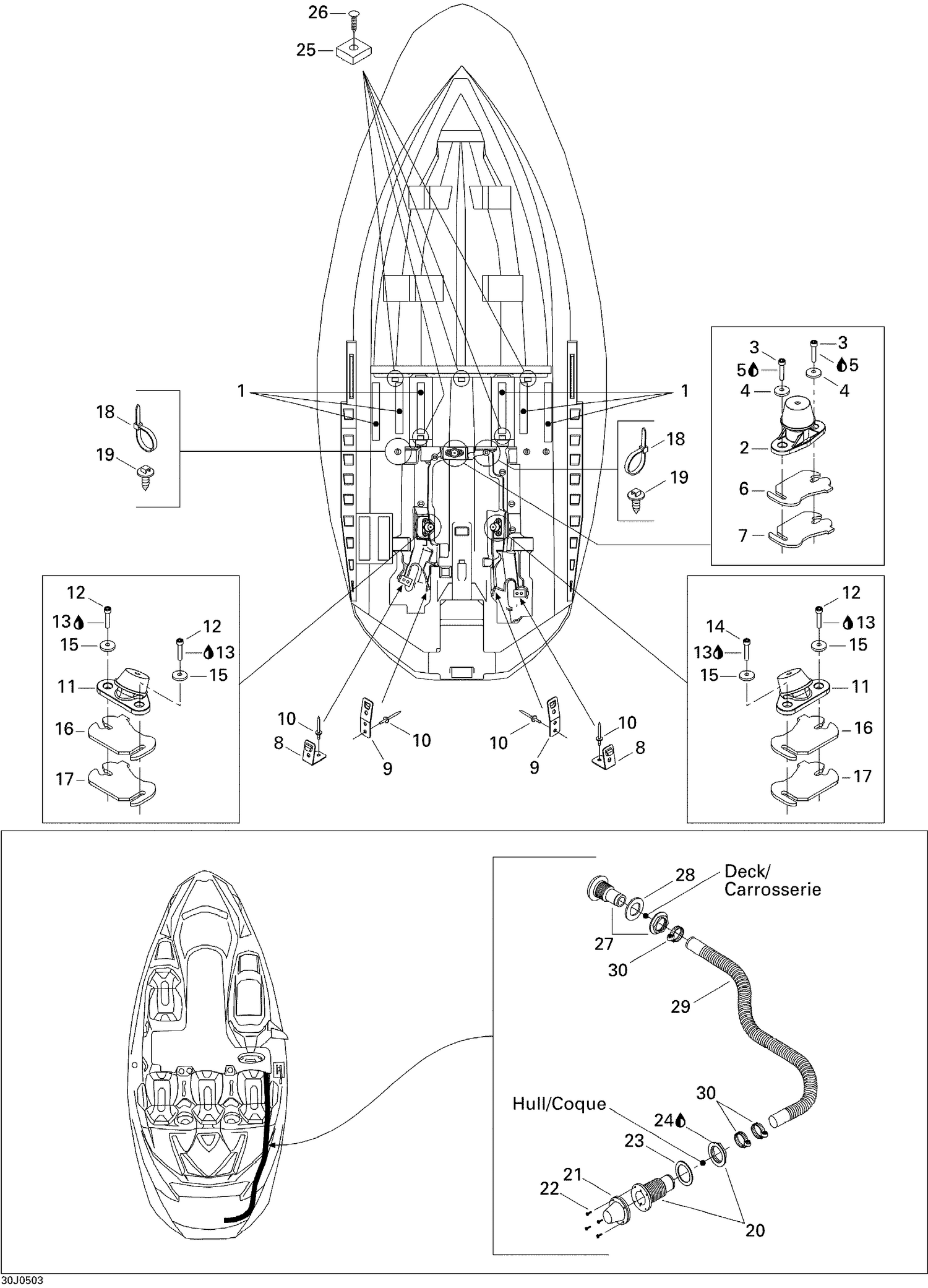

| Ref | Part Number | Description |
|---|
| 1 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 2 |
270001096 |
Engine Support Ass'y This part replaces 270000635. |
| 3 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 4 |
250200018 |
Cone Washer |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 7 |
270000762 |
Shim 1.3 mm This part replaces 270000446. |
| 8 |
204060017 |
Strap Clip 90° |
| 9 |
293850030 |
Strap Clip |
| 10 |
293150088 |
Pop Rivet 3/16" |
| 11 |
270001081 |
Engine Support Ass'y This part replaces 270000633. |
| 12 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
205084560 |
Socket Head Screw M8 X 45 |
| 15 |
250200018 |
Cone Washer |
| 16 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 17 |
270000762 |
Shim 1.3 mm This part replaces 270000446. |
| 18 |
414115200 |
Tie-Rap 180 mm |
| 19 |
293730040 |
Mount Dart This part replaces 293730018. |
| 20 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 21 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 22 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 23 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 24 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 25 |
204060684 |
RUBBER PAD - Call your local BRP dealership |
| 26 |
293730006 |
Black, Dart |
| 27 |
293710060 |
FITTING - Call your local BRP dealership |
| 28 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 29 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
