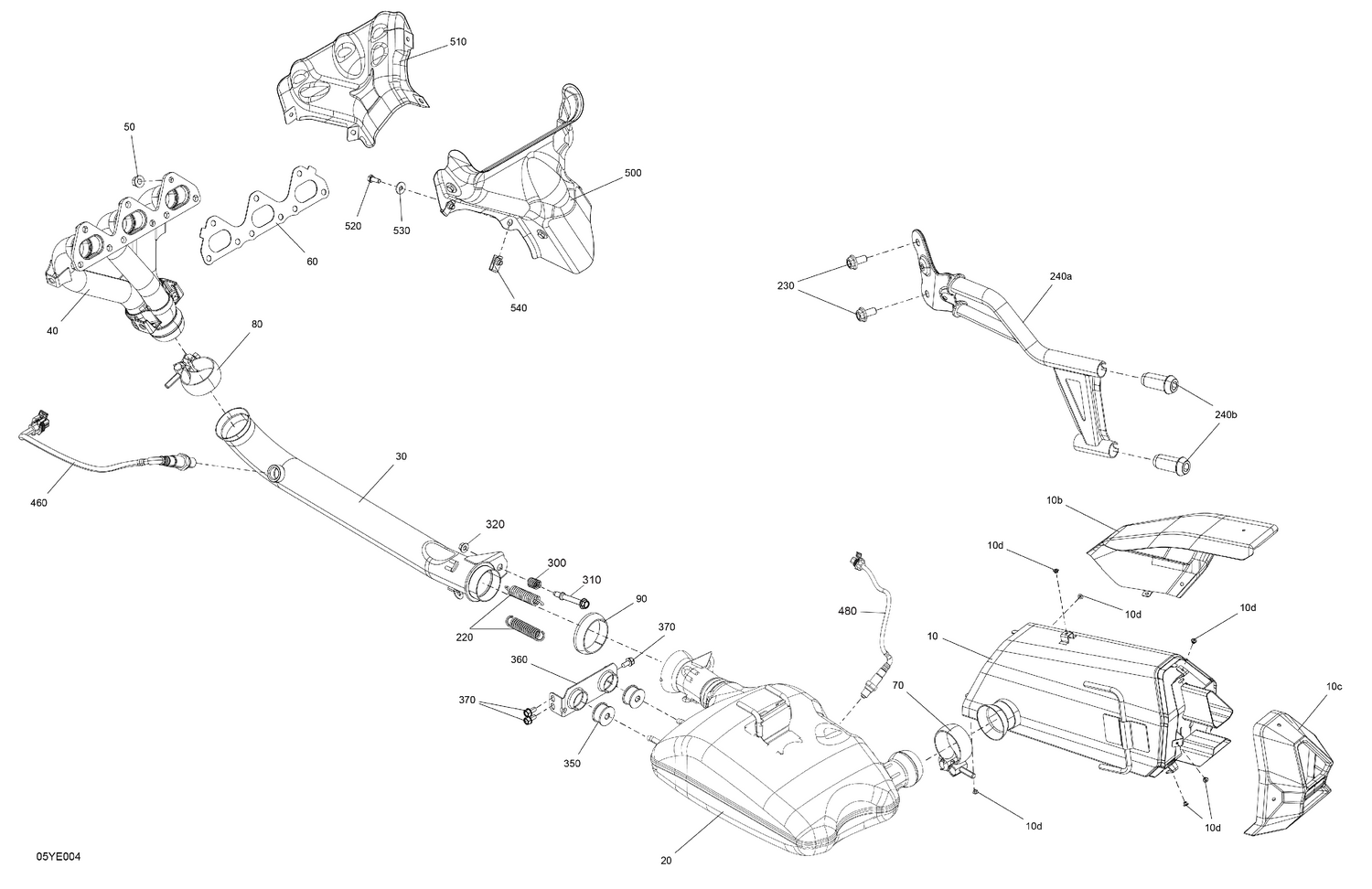

02- Engine - Exhaust
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 707601560 | Carbon Black, Heat Shield |
| 10c | 707601561 | Carbon Black Muffler End Cap |
| 10d | 293150219 | Rivet-Pop 5/32 |
| 20 | 707603431 | Primary Exhaust Muffler |
| 30 | 707603478 | Exhaust Pipe Out |
| 40 | 707603565 | Exhaust Manifold |
| 50 | 233081416 | Hex. Flange Nut M8 |
| 60 | 707601985 | Exhaust Seal |
| 70 | 707600980 | Exhaust Clamp |
| 80 | 707600980 | Exhaust Clamp |
| 90 | 514054174 | Exhaust Gasket |
| 220 | 415107100 | Spring |
| 230 | 207502044 | Hex Flange Screw M10 X 20 |
| 240a | 707603935 | Exhaust Support |
| 240b | 293830167 | Rubber Bushing |
| 300 | 707600682 | Spring |
| 310 | 250001312 | Hex. Flan. Screw Dogp. M10 X 80 |
| 320 | 233101414 | Hex. Flange Nut M10 |
| 350 | 707600702 | Anti-Vibration Rubber |
| 360 | 707600661 | Front Bracket |
| 370 | 210261250 | Hex. Flange Screw M6 X 12 |
| 460 | 707600872 | Oxygen Sensor |
| 480 | 707600872 | Oxygen Sensor |
| 500 | 707603641 | Heat Shield interior |
| 510 | 707603642 | Heat Shield Exterior |
| 520 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 530 | 234062600 | Flat Washer M6, Stainless |
