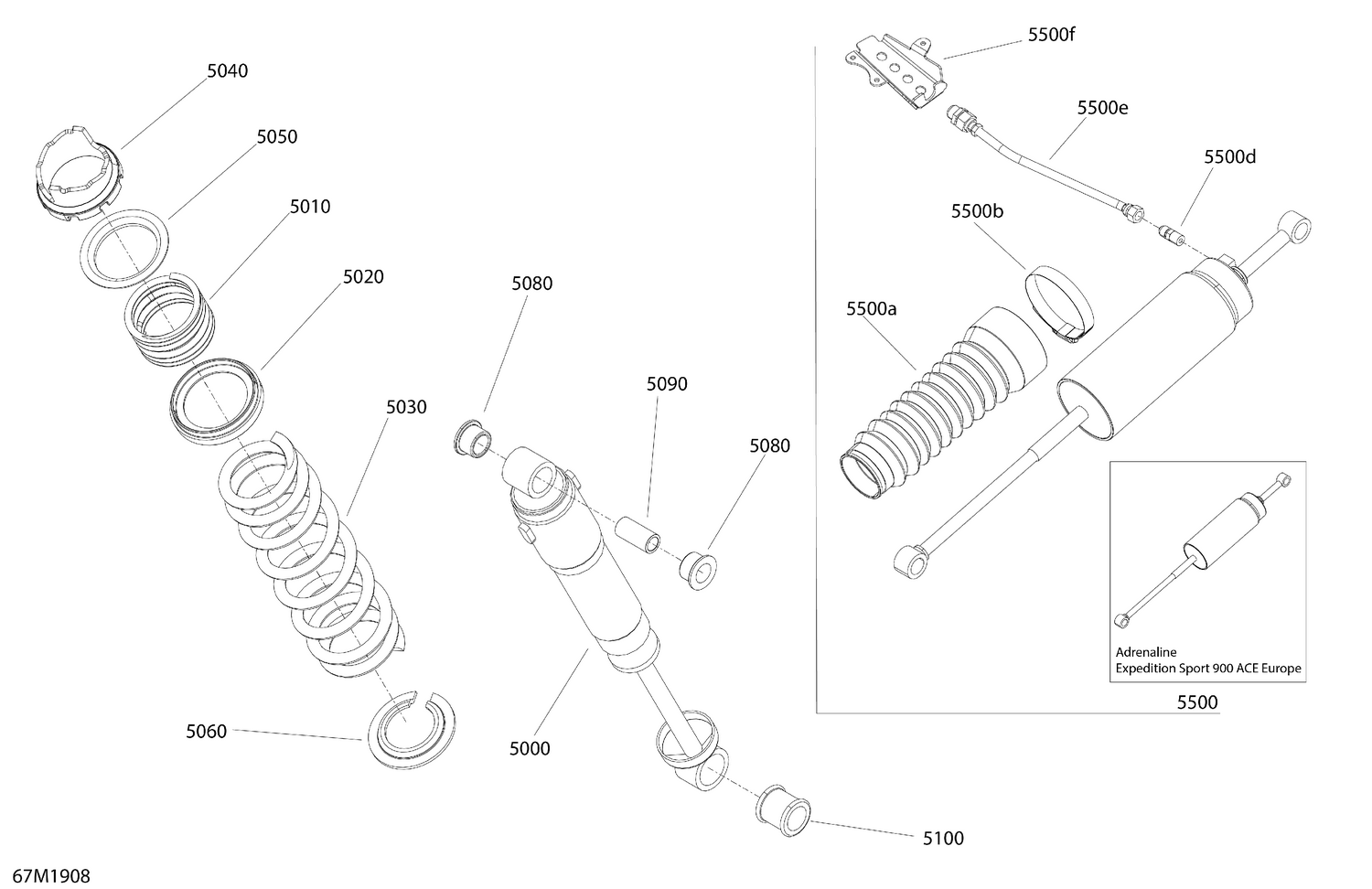

08- Rear Suspension Shocks Renegade - Package Enduro
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503193208 | Center Shock Ass'y |
| 5010 | 503193837 | Black, Spring (51mm) Short |
| 5020 | 503191281 | Spring Spacer |
| 5030 | 503193160 | Deep Black, Spring (189mm) Long |
| 5040 | 505073625 | Adjustment Cam |
| 5050 | 503191872 | Spring Guide |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5500a | 570278300 | Protection Boot |
| 5500b | 293650064 | Tridon Clamp |
| 5500d | 503191939 | Male Pneumatic Connector |
| 5500e | 503192652 | Air Hose Ass'y |
| 5500f | 503194925 | Bracket |
