Home / BRP / EVINRUDE / 2000 / 200 / RE200FLSSH FFI, Elec Start, TNT, 20 IN shaft 2000 / 03- PTO Cover And Magneto

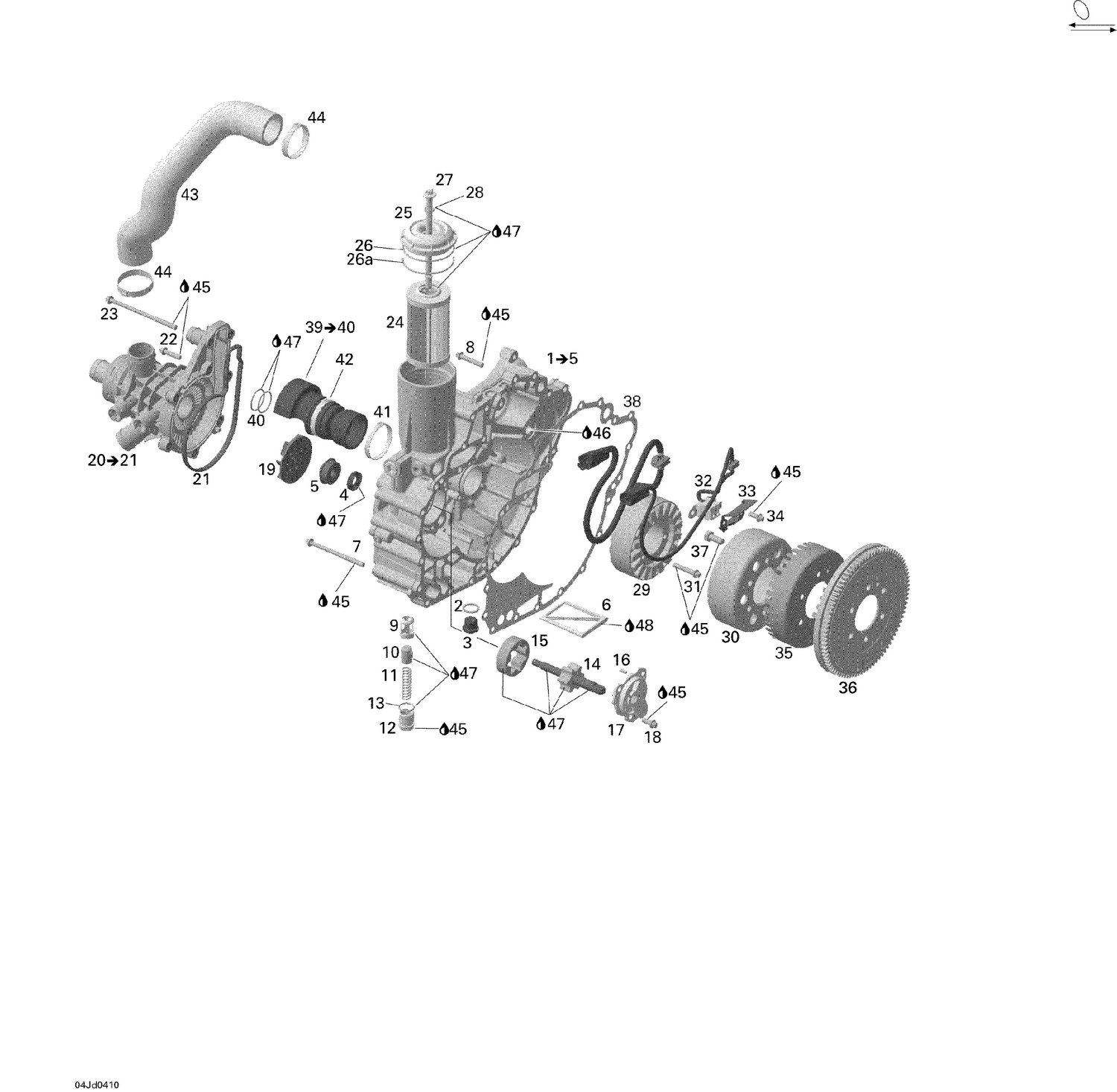

03- PTO Cover And Magneto

03- PTO Cover And Magneto

Parts (45)

RefPart NumberDescription
2 420430624 Oil Pressure Regulator Gasket Ring This part replaces 420430623.
3 420240233 Plug Screw M16
4 420650315 Oil Seal This part replaces 420650310.
5 420650371 Rotary Seal This part replaces 420650370.
6 420956950 Oil Sieve
7 420641228 Torx Flange Screw M6 X 85
8 420641258 Torx Flange Screw M6 X 35
9 420256606 Valve Seat Sleeve This part replaces 420256605.
10 420256638 Piston Valve This part replaces 420256630.
11 420939211 Compression Spring This part replaces 420939210.
12 420641052 Plug Screw M20 X 1.5 This part replaces 420641050.
13 420230890 O-Ring
14 420837472 Pump Shaft Ass'y
15 420956675 Oil Pump Rotor 16 mm
16 420929070 Needle Pin
17 420811591 Oil Pump Cover This part replaces 420811590.
18 420641048 Torx Flange Screw M6 X 16
19 420922801 Impeller
21 420950840 Water Pump Housing Gasket
22 420641238 Torx Flange Screw M6 X 25
23 420641338 Torx Flange Screw M6 X 105
24 420956741 Oil Filter This part replaces 420956740.
25 420610329 Oil Filter Cover This part replaces 420610322.
26 420230923 O-Ring This part replaces 420230920.
26a 420850500 O-Ring
27 295501207 Oil Filter Screw Kit This part replaces 420641100.
28 420950860 O-Ring
29 420889720 STATOR ASS'Y - Call your local BRP dealership
30 420889710 MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership
31 420641258 Torx Flange Screw M6 X 35
32 420664140 CRANKSHAFT SENSOR - Call your local BRP dealership
33 420926300 Retaining Plate
34 420641048 Torx Flange Screw M6 X 16
35 420966851 Trigger Wheel This part replaces 420664080.
36 420835163 Starter Gear, 86 Teeth This part replaces 420834480.
37 295501162 Hex Screw This part replaces 295501043.
38 420931130 Timing Drive Cover Gasket (1603 NA)
40 420631612 O-Ring This part replaces 420631610.
41 420851653 Gear Clamp
42 420853023 Gear Clamp 46.8-50.0MM
43 420922822 Formed Hose This part replaces 420922821.
44 420851687 Oetiker Clamp
45 293800060 Loctite 243, 10 ml
46 413707000 Dow Corning 111, 150 g
47 293600121 OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039.
