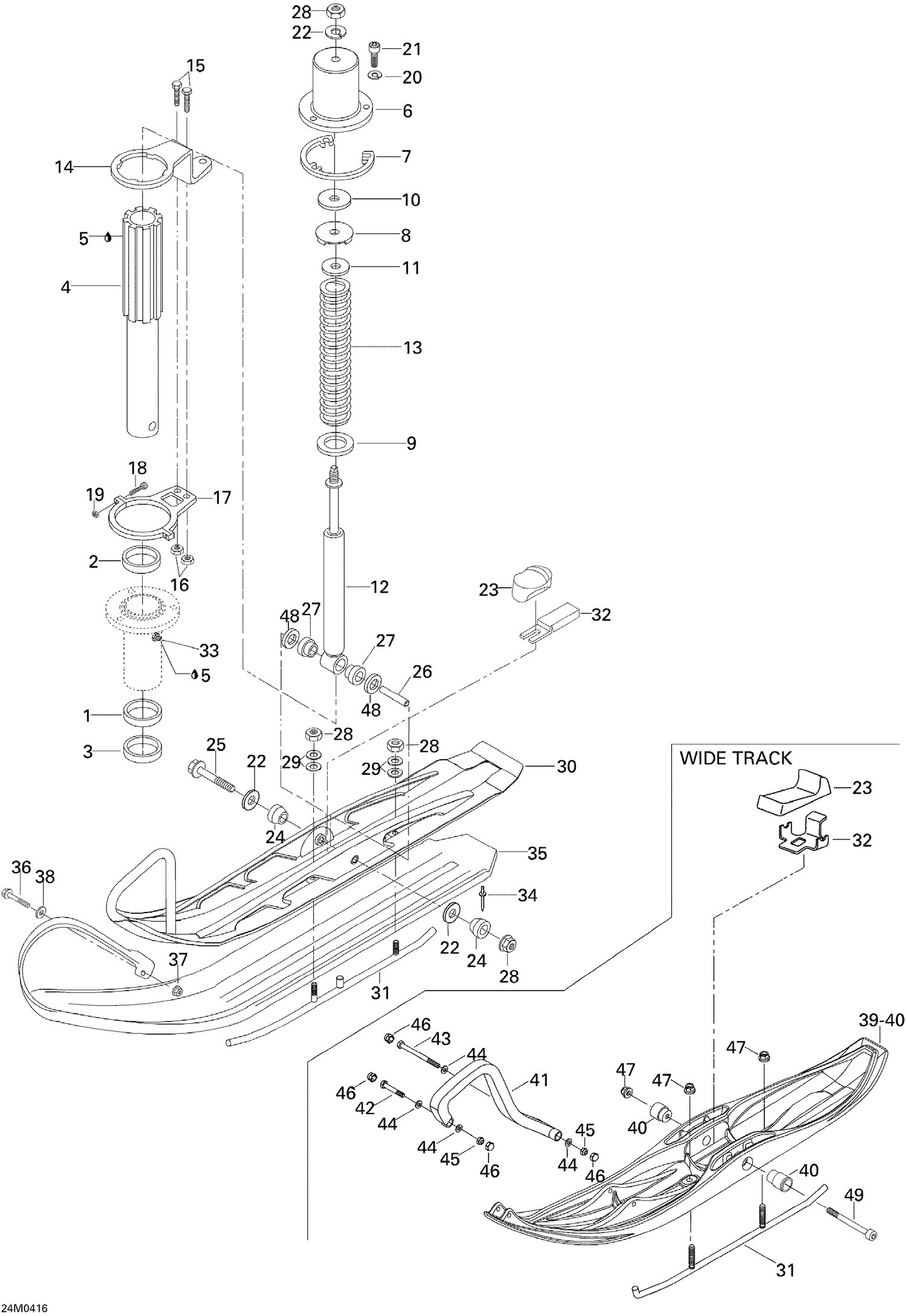

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower Cushion |
| 2 |
414803100 |
Upper Cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership This part replaces M316373. |
| 4 |
5245362 |
Skileg 8 GR - Call your local BRP dealership This part replaces M5245362. |
| 5 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 6 |
605249284 |
PAINTED COVER - Call your local BRP dealership |
| 7 |
503145600 |
SPACER - Call your local BRP dealership |
| 8 |
570025800 |
Stopper |
| 9 |
549493 |
Washer This part replaces M549493. |
| 10 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M5440399. |
| 11 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M549492. |
| 12 |
505070920 |
SHOCK - Call your local BRP dealership |
| 13 |
5241330 |
Spring This part replaces M5241330. |
| 14 |
M5244182 |
STEERING ARM - Call your local BRP dealership |
| 15 |
207162544 |
Hex. Screw M6 X 25 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 17 |
619380015 |
Support Ass'Y This part replaces M5344180. |
| 18 |
M40146 |
Screw |
| 19 |
232541414 |
Elastic Stop Nut M4 |
| 20 |
234181401 |
Lock Washer 8 mm |
| 21 |
205082044 |
Socket Head Screw M8 X 20 |
| 27 |
572034500 |
Cushion |
| 33 |
M34019 |
Grease Fitting |
