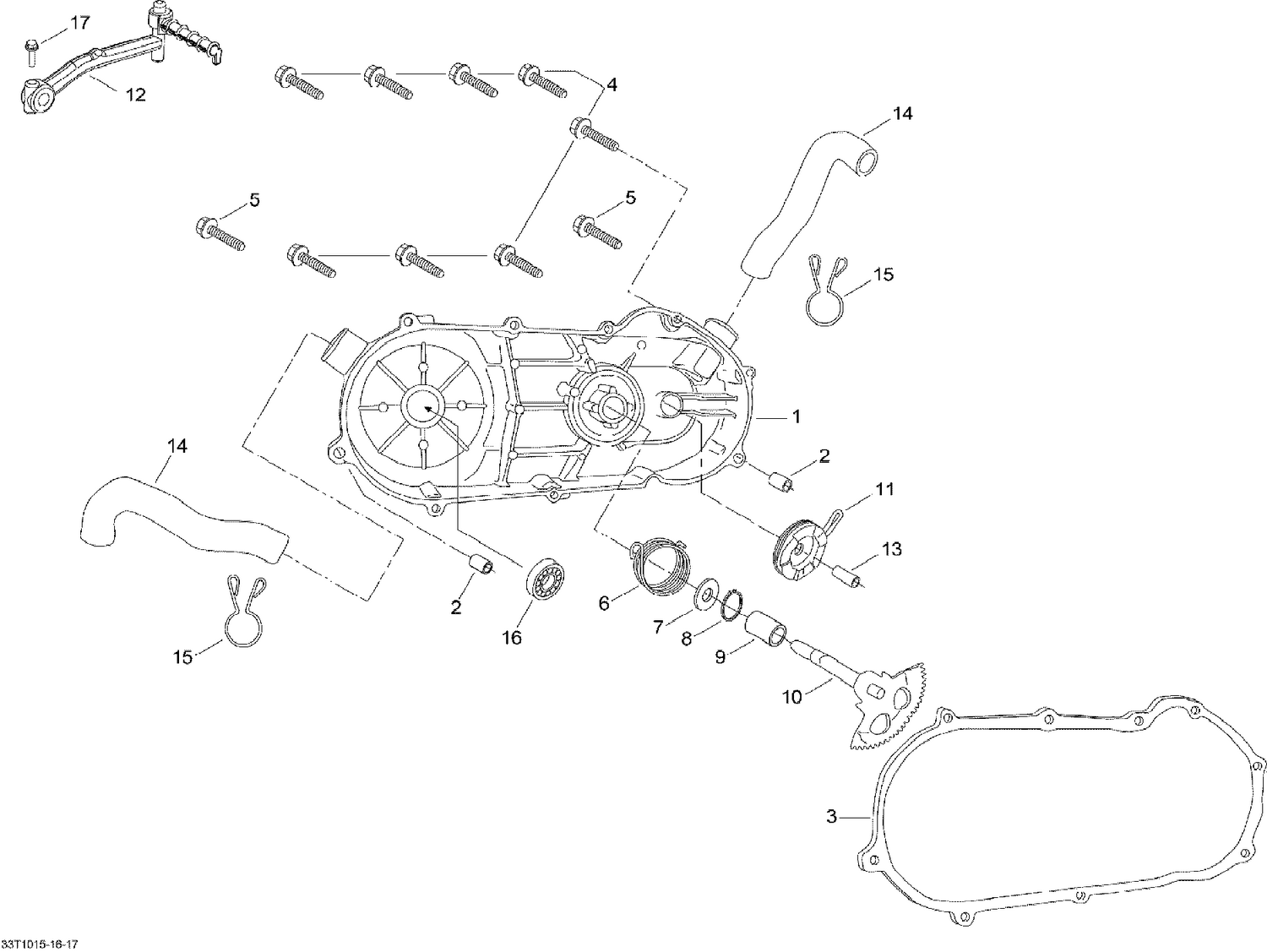

05- CVT Cover And Kick Stater
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V13341CJF020LL | CVT Cover This part replaces V13341CJF020. |
| 2 | A9430110140 | Dowel Pin |
| 3 | V11359CJF010 | Cvt Cover Gasket This part replaces V11359CJF000. |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 6 | V282814DM00 | Spring Torsion |
| 7 | V9410415010LL | Washer |
| 8 | V9451015000 | Circlip |
| 9 | V282544DM00 | Rubber Bushing |
| 10 | V282504DM02LL | Kick Shaft This part replaces V282504DM020. |
| 11 | V2823A4DM02 | Pinion Ass'y, Kick This part replaces V2823A4DM00. |
| 12 | V28301DGF020LL | Kick Starter |
| 13 | V281024DM02 | Shaft Idle Gear This part replaces V281024DM010. |
| 14 | V11345DGF030LL | CVT Duct This part replaces V11345DGF030. |
| 15 | V9500202503001 | Clip |
| 16 | V96100638ZZ | Bearing |
