Parts Catalog

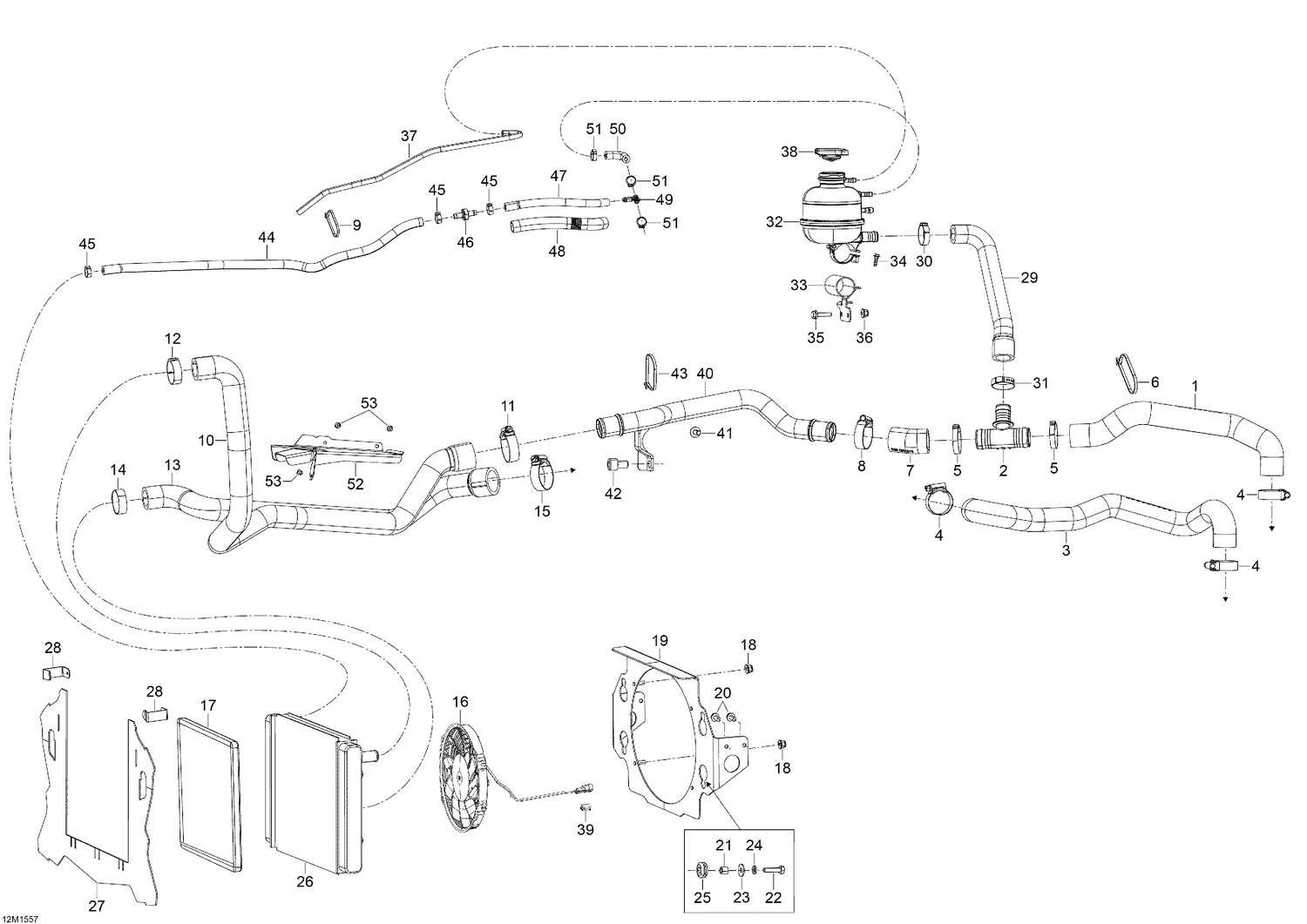

01- Cooling System _12M1557

Parts (52)

Ref	Part Number	Description
1	509000894	Formed Hose
2	509000372	T-Fitting
3	509000895	Formed Hose
4	509000443	Aba Gear Clamp, 26-38 MM
5	509000181	Oetiker Gear Clamp
6	293750008	Tie Wrap 368 mm
7	509001067	Engine Inlet Hose This part replaces 509000675.
8	509000443	Aba Gear Clamp, 26-38 MM
9	414115200	Tie-Rap 180 mm
10	509000780	Hose, Front Radiator ( Air Engine)
11	509000443	Aba Gear Clamp, 26-38 MM
12	293650165	Oetiker Gear Clamp
13	509000781	Hose, Front Radiator (Engine)
14	293650165	Oetiker Gear Clamp
15	509000443	Aba Gear Clamp, 26-38 MM
16	509000838	Cooling Fan
17	509000718	Insulation
18	233261414	Hex. Flange Elastic Nut M6 x 1.0
19	509000791	Radiator support
20	40870	HEX. TAPING SCREW - Call your local BRP dealership
21	605453745	Bushing
22	207162044	Hex. Screw M6 X 20
23	234062410	Flat Washer 6 mm
24	234161431	Lock Waasher
25	709000582	Grommet This part replaces 293720053.
26	509000787	Radiator
27	509000700	Air Deflector
28	509000703	Deflector Clip
29	509000663	Filling Hose
30	509000442	Oeticker Gear Clamp, 25.6-706R
31	293650099	Crimp Clamp
32	509000421	Coolant Tank
33	509000856	Reservoir support
34	241151640	Hex. Flange Screw K50 X 2.24 X 16
35	207662544	Hex. Flange Screw M6 X 25
36	233261414	Hex. Flange Elastic Nut M6 x 1.0
37	219704360	Hose 6 Mm 15000Mm Long
38	509000180	Radiator Pressure Cap
39	710000992	Clip
40	509000724	Water Pipe Aluminum
41	250000223	Torx Screw M6 X 16
42	205501644	Socket Screw M10 X 16
43	414115200	Tie-Rap 180 mm
44	219704420	Was 509000407 Hose 8 mm
45	293650140	Oetiker Clamp
46	509000153	Check Valve
47	509001069	Hose-formed This part replaces 509000765.
48	219704408	Tubing 16 Mm 1000Mm Long
49	293710140	Y-Fitting
50	509000799	HOSE - Call your local BRP dealership
51	293650046	Oetiker Clamp
52	509000839	HEAT DEFLECTOR - Call your local BRP dealership
