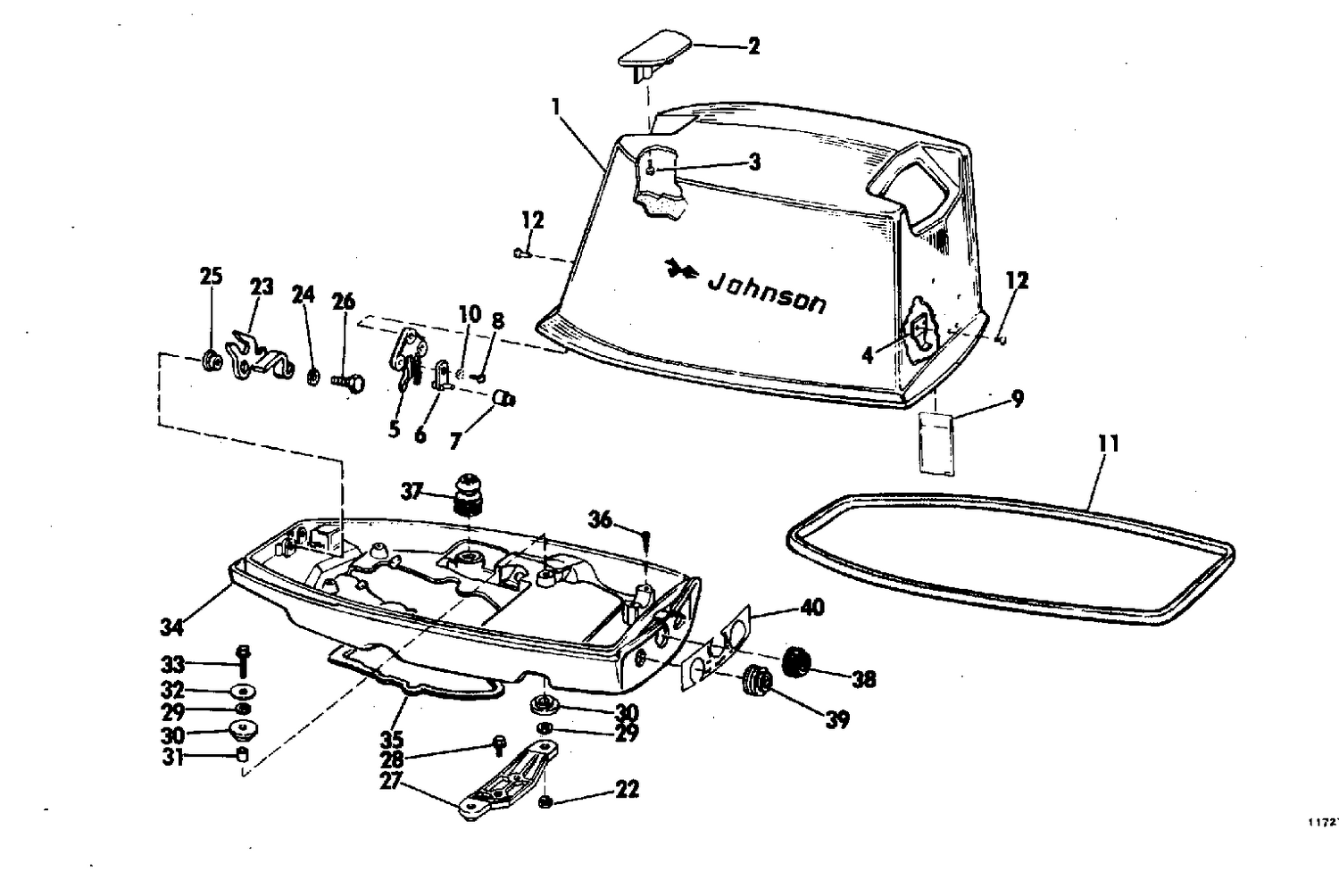

| Ref | Part Number | Description |
|---|
| 1 |
0384333 |
MOTOR COVER ASSY. |
| 2 |
0381165 |
TILT HAND & SCREW ASSY |
| 3 |
0312299 |
VIS, serre-câble |
| 4 |
0320400 |
HOOK, Engine cover This part replaces 0316170. |
| 6 |
0384332 |
LIDE & PIN |
| 8 |
0302468 |
SCREW, Ground lead |
| 9 |
0314595 |
CASE, Owner card |
| 23 |
0316347 |
LEVER, Cover latch |
| 24 |
0204445 |
BOW WASHER |
| 25 |
0204444 |
BUSHING |
| 26 |
0302592 |
SCREW |
| 27 |
0325868 |
BRACKET, Cove to exh. hsg., front This part replaces 0316345. |
| 29 |
0329241 |
RONDELLE This part replaces 0306482. |
| 30 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 31 |
0302406 |
SLEEVE |
| 33 |
0316476 |
SCREW |
| 34 |
0321460 |
MOTOR COVER, Lower This part replaces 0316265. |
| 35 |
0308292 |
SEAL |
| 36 |
0307907 |
SCREW |
| 37 |
0304019 |
CROMMET, CONTROL SHAFT |
| 38 |
0204456 |
GORMMET, Low speed knob |
| 39 |
0204457 |
GOMMET, Choke knob |
| 40 |
0316230 |
PLATE, Control panel |
| 0384898 |
0384898 |
DECAL SET |
