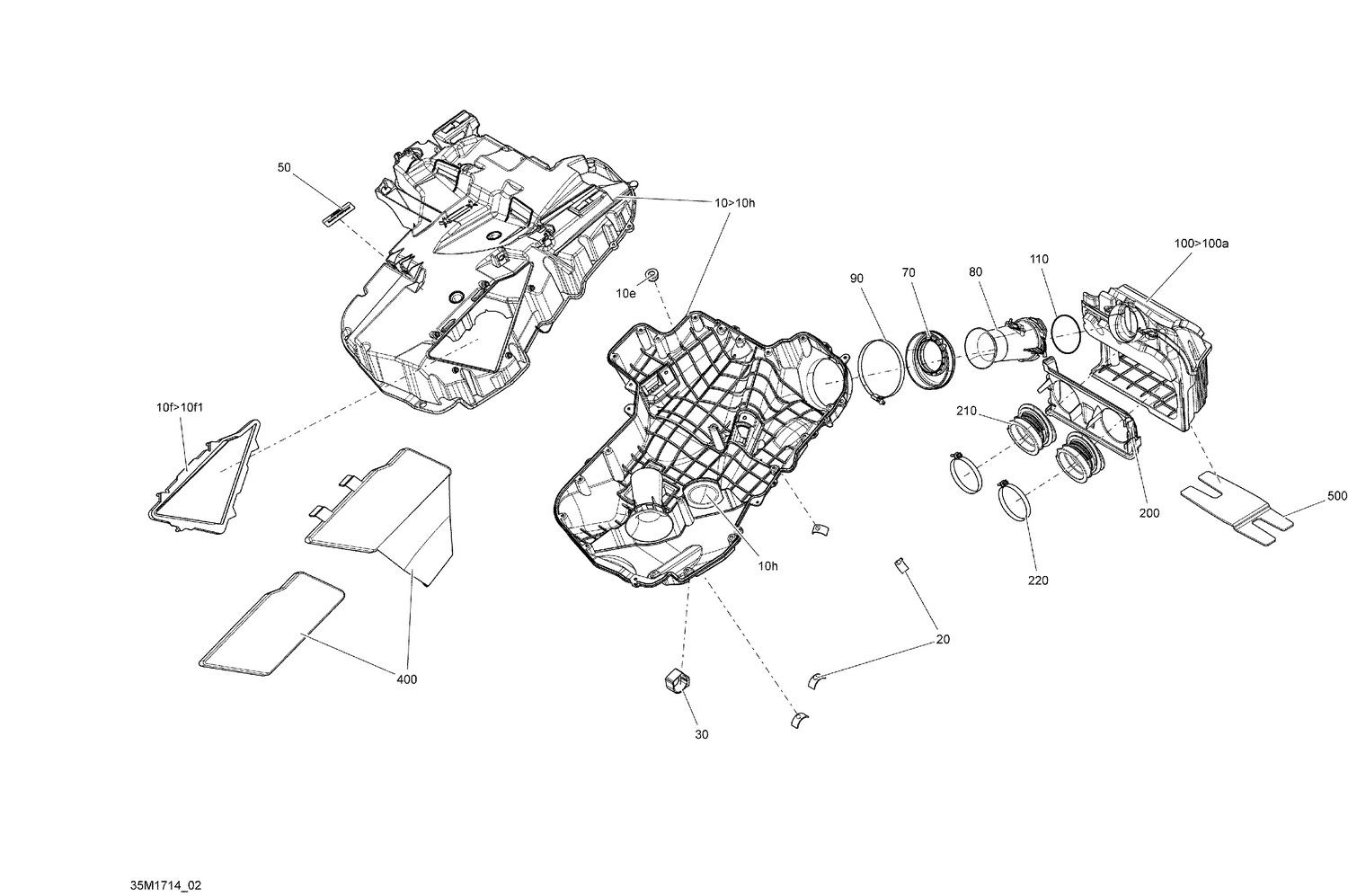

02- Air Intake System - All Models
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10e | 508000574 | Grommet |
| 10f1 | 508000546 | Air Filter |
| 10h | 508000590 | Cap |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 50 | 516005280 | Caution Decal Hot Parts |
| 70 | 508000548 | Boot |
| 80 | 508000662 | Flute |
| 90 | 514052983 | Norma Gear Clamp |
| 100a | 516005876 | Notice Decal, Air Intake Silencer |
| 110 | 293300115 | O-Ring |
| 200 | 508000613 | Plate Adapter |
| 210 | 508000614 | Air Intake Adapter |
| 220 | 508000346 | Gemi Clamp |
| 400 | 508000698 | FILTER - Call your local BRP dealership |
