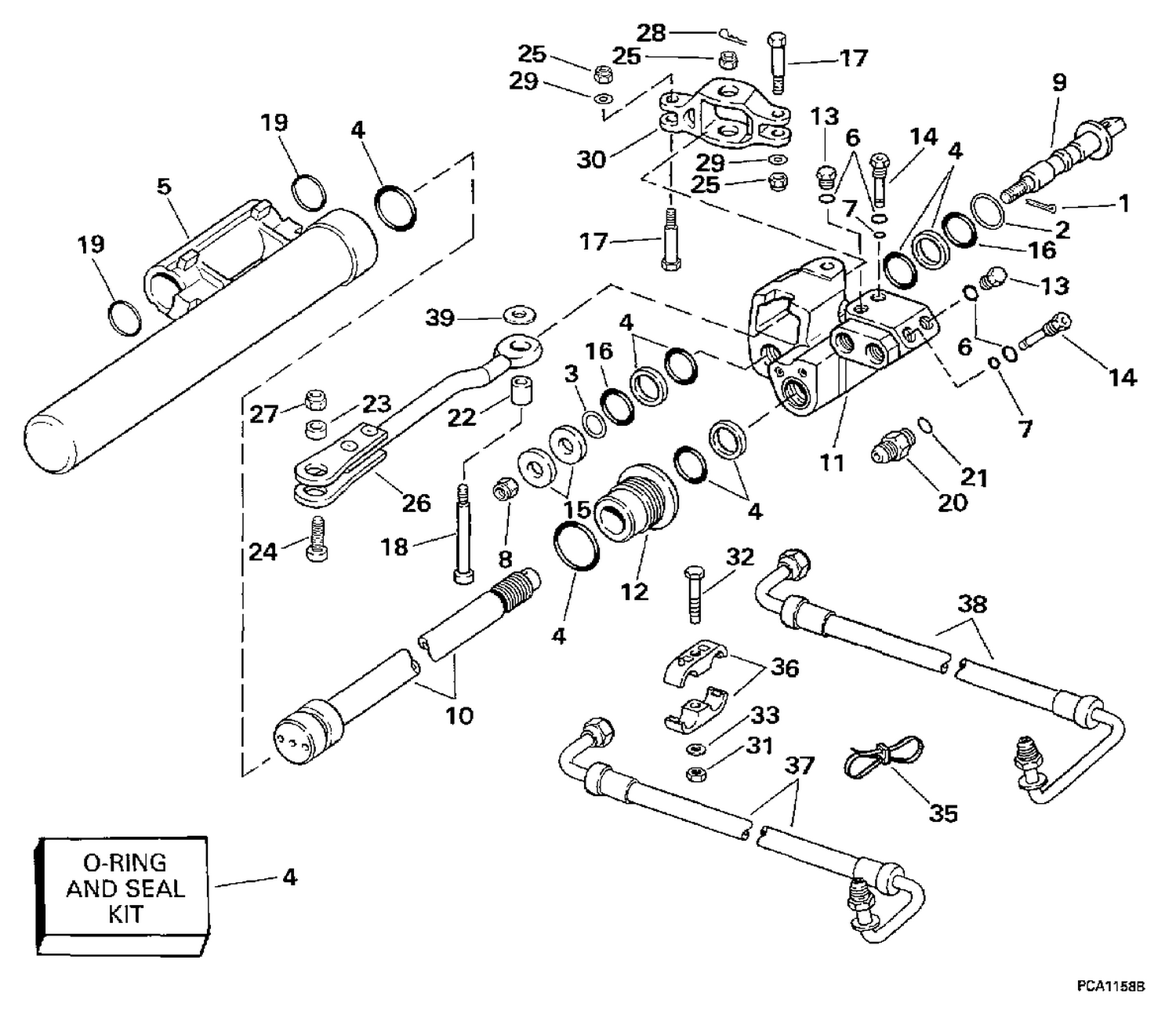

STEERING CYLINDER KIT - STARBOARD - V8 MODELS ONLY
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 0913331 | CYLINDER, Starboard |
| 16 | 0912357 | O-RING |
| 19 | 0314491 | O RING |
| 26 | 0985525 | STEERING CONN. ASSY. |
| 28 | 0302858 | GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 30 | 0913796 | BELLCRANK |
| 32 | 0325115 | SCREW, Oil tank/EMM mount |
| 37 | 0985523 | HOSE ASSEMBLY, Return |
| 38 | 0985524 | HOSE ASSEMBLY, Pressure |
| 0987050 | 0987050 | STEERING CYL & HOSE ASSY., Stbd. |
| 0987052 | 0987052 | CYLINDER & VALVE ASSY. |
