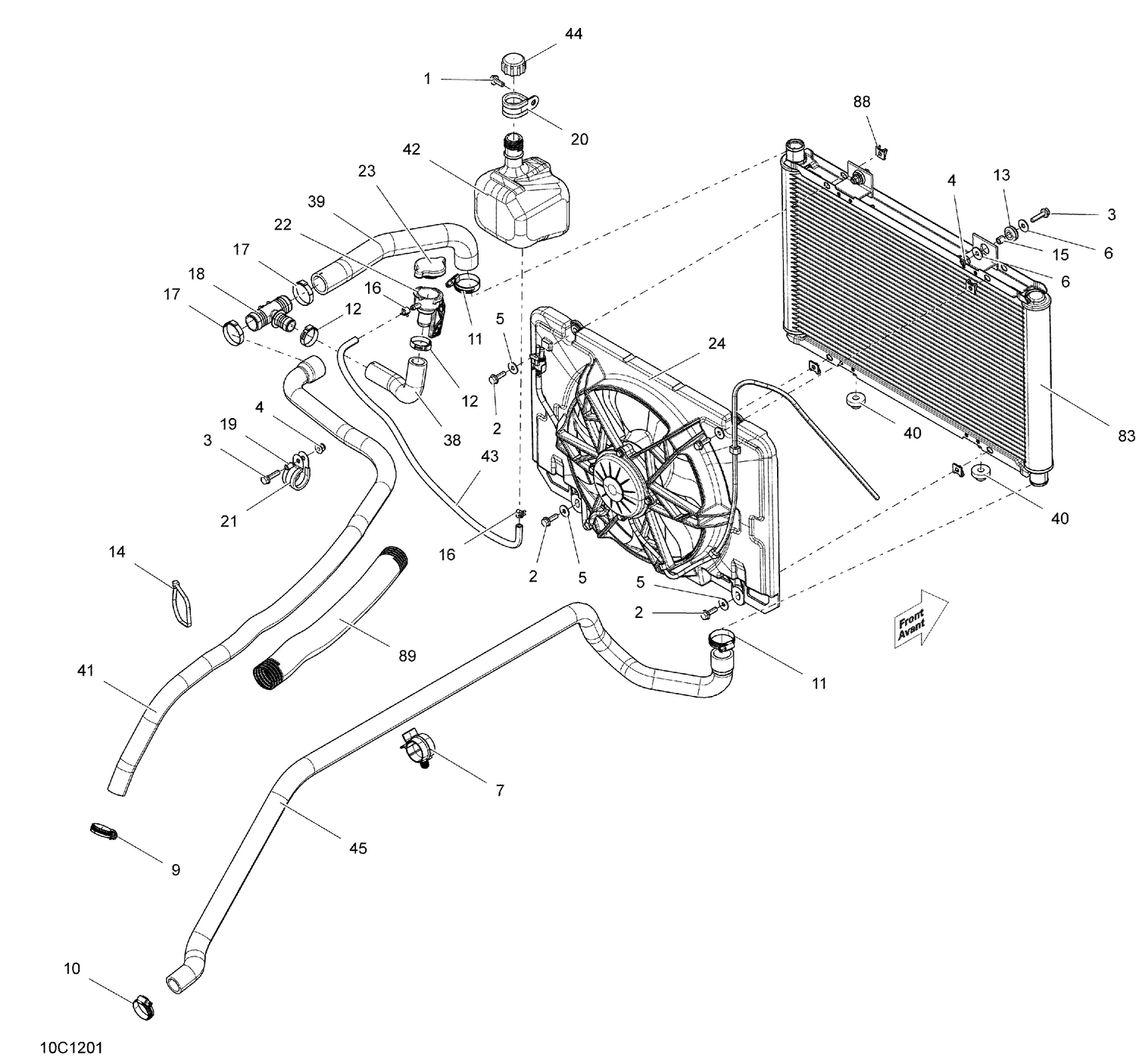

01- Cooling System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 207662534 | Hex. Flange Screw M6 X 25 |
| 4 | 233261434 | Flange Elastic Nut M6 |
| 5 | 234062410 | Flat Washer 6 mm |
| 6 | 250200082 | Flat Washer |
| 7 | 275500590 | Retainer |
| 9 | 293650098 | Norma Gear Clamp |
| 10 | 293650098 | Norma Gear Clamp |
| 11 | 293650098 | Norma Gear Clamp |
| 12 | 293650099 | Crimp Clamp |
| 13 | 709000582 | Grommet This part replaces 293720053. |
| 14 | 293750008 | Tie Wrap 368 mm |
| 15 | 293900105 | Bushing |
| 16 | 414554800 | Spring Clamp |
| 17 | 509000162 | Gear Clamp |
| 18 | 509000372 | T-Fitting |
| 19 | 707000065 | Spacer |
| 20 | 709200036 | Hose Anchor |
| 21 | 709200036 | Hose Anchor |
| 22 | 709200179 | Filler Neck |
| 23 | 709200207 | Radiator Pressure Cap |
| 24 | 709200566 | Fan Ass'y This part replaces 709200375. |
| 38 | 709200264 | Filler Neck Hose |
| 39 | 709200265 | Radiator Outlet Hose |
| 40 | 709200285 | Grommet |
| 41 | 709200295 | Intermediate Hose |
| 42 | 709200624 | Coolant Tank Ass'y This part replaces 709200312. |
| 43 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 44 | 709200587 | Tank Cap This part replaces 709200328. |
| 45 | 709200355 | Radiator Inlet Hose |
| 83 | 709200395 | Radiator |
| 88 | 715900148 | CLIP NUT M6 X 1 - Call your local BRP dealership |
