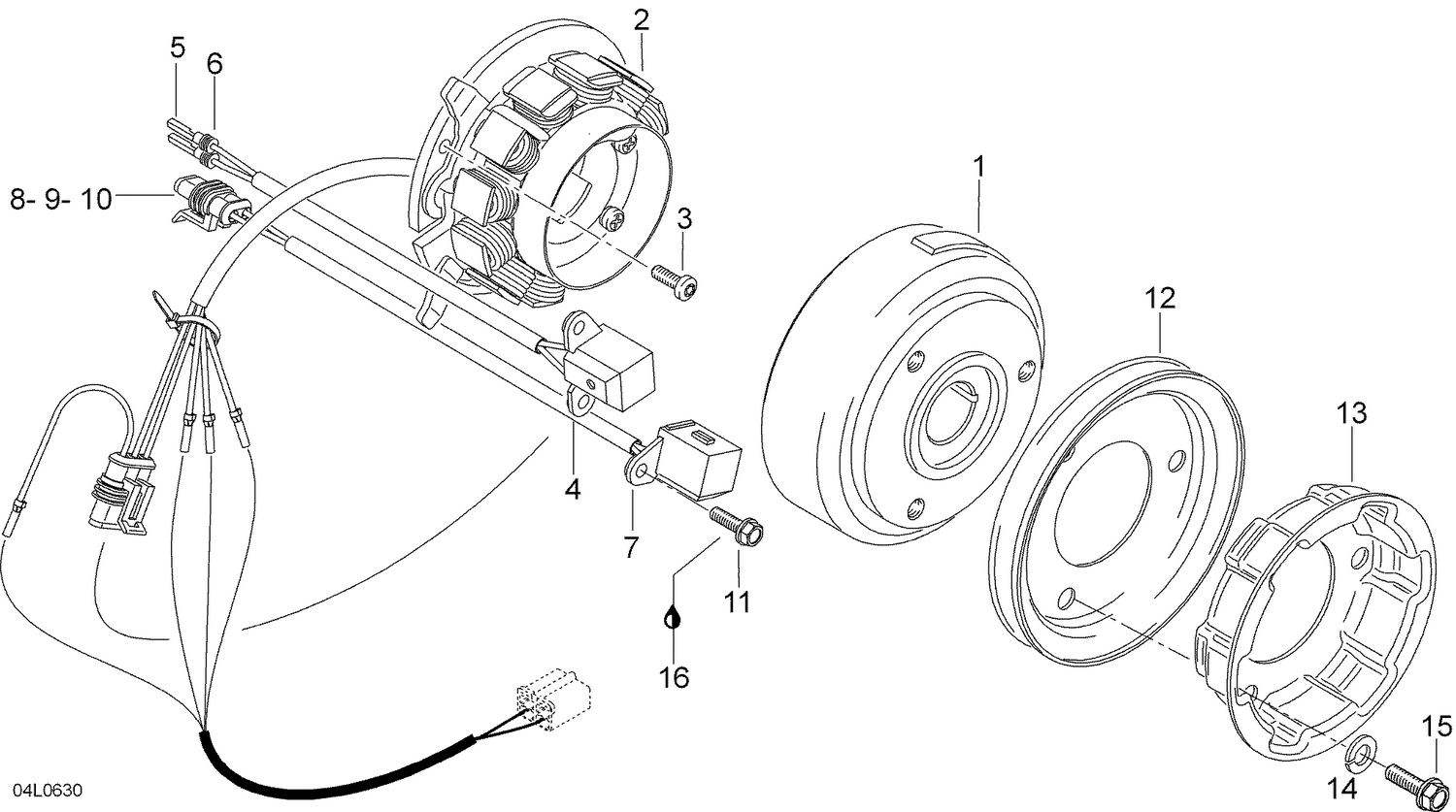

01- Ignition
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889376 | Magneto flywheel This part replaces 420889375. |
| 2 | 420889369 | Stator Plate A This part replaces 420889365. |
| 3 | 420641521 | Torx, kuusiokolor. M5 x 16 |
| 5 | 278001014 | Female Terminal |
| 6 | 278001013 | Wire Seal |
| 8 | 409209500 | Female Housing, 2 Circuits |
| 9 | 278001014 | Female Terminal |
| 10 | 278001013 | Wire Seal |
| 11 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 12 | 420980486 | V-belt pulley |
| 13 | 420852414 | Starting pulley |
| 14 | 420845311 | Lock washer 8 mm |
| 15 | 420440852 | Flanged Torx Screw M8 X 16 |
