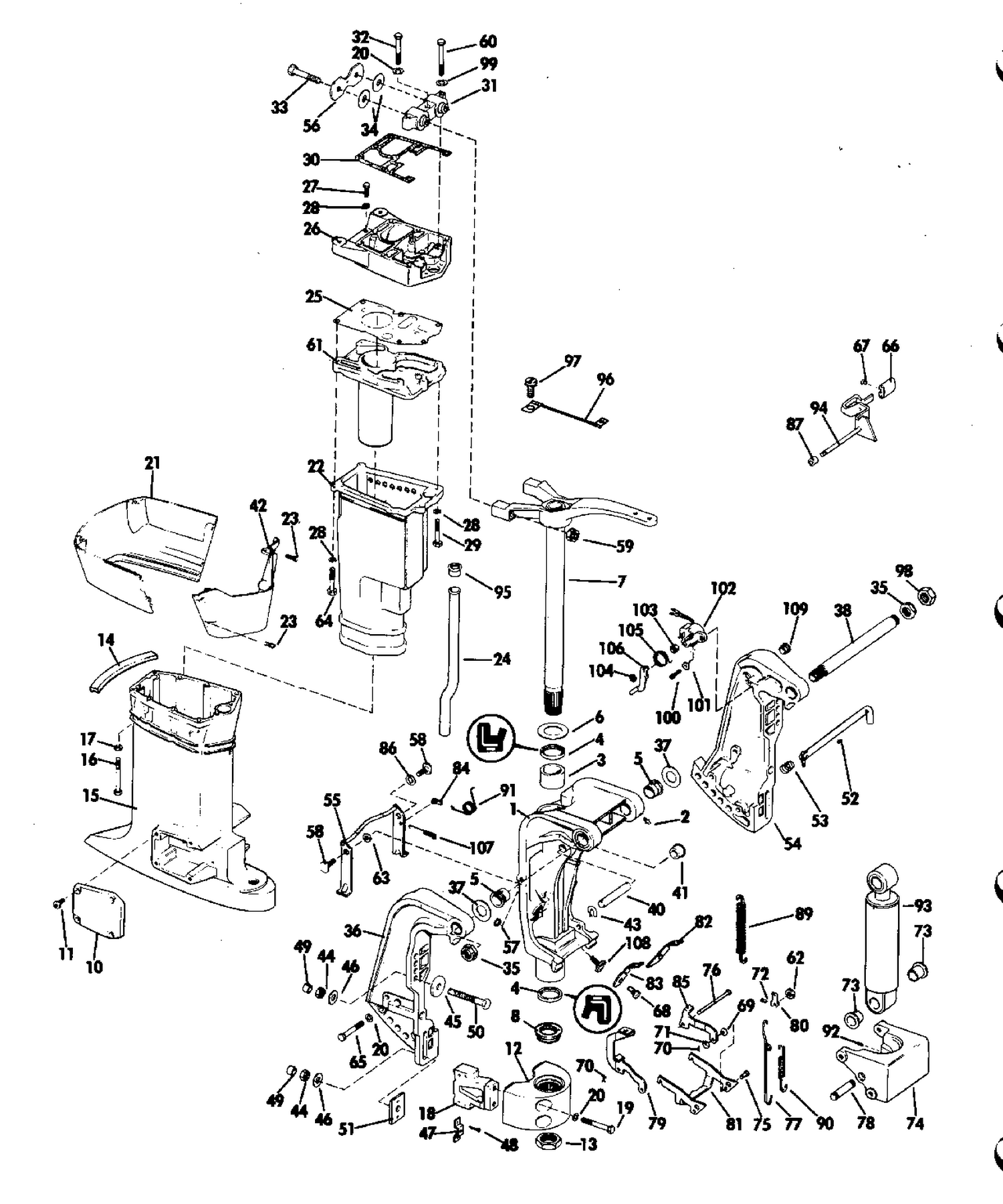

| Ref | Part Number | Description |
|---|
| 1 |
0397731 |
SWIVEL BRACKET This part replaces 0389334. |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392517 |
STEERING ARM ASSEMBLY |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 10 |
0321673 |
COVER, Mount bracket lower |
| 11 |
0329894 |
SCREW This part replaces 0302510. |
| 12 |
0321507 |
MOUNT BRACKET |
| 13 |
0320746 |
CROU, support de montage |
| 14 |
0314024 |
SEAL HOUSING, Outer |
| 15 |
0321493 |
EXHAUST HOUSING, Outer |
| 16 |
0309280 |
SCREW, Exhaust housing |
| 17 |
0120255 |
LOCKWASHER |
| 18 |
0387796 |
RUBBER MOUNT, Lower |
| 19 |
0318612 |
SCREW, Bracket to cover |
| 20 |
0307708 |
RONDELLE GROWER |
| 21 |
0340777 |
COVER, Housing, rear This part replaces 0206006. |
| 22 |
0323715 |
EXHAUST HOUSING |
| 24 |
0319281 |
WASHER TUBE |
| 25 |
0331016 |
GASKET This part replaces 0321796. |
| 26 |
0322778 |
ADAPTER, Exhaust housing |
| 27 |
0329894 |
SCREW This part replaces 0302510. |
| 30 |
0313763 |
GASKET, Adapter |
| 31 |
0436394 |
RUBBER MOUNT ASSEMBLY, Upper This part replaces 0387786. |
| 32 |
0551094 |
BOLT, Manifold to head |
| 33 |
0321653 |
SCREW, Upper mount |
| 34 |
0313580 |
WASHER |
| 35 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 36 |
0395844 |
STEERING BRACKET, ASSY., Stbd. This part replaces 0392204. |
| 38 |
0335553 |
TILT TUBE This part replaces 0321052. |
| 40 |
0320792 |
PIN |
| 42 |
0322844 |
COVER, Exhaust housing, front |
| 43 |
0321054 |
SPRING CLIP |
| 44 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 45 |
0307238 |
RONDELLE |
| 46 |
0320248 |
RONDELLE, écrou |
| 47 |
0318273 |
Bolt hex retainer 1/2 in. |
| 48 |
0319886 |
SCREW |
| 49 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 50 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 50 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 50 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 51 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 52 |
0436541 |
ROD Assy, Thrust This part replaces 0387278. |
| 53 |
0321053 |
SORUBG,Thrust rod |
| 54 |
0396309 |
STERN BRACKET ASSEMBLY, Port This part replaces 0392203. |
| 55 |
0390442 |
LOCATING LEVER, Rod |
| 56 |
0321935 |
RETAINING PLATE |
| 58 |
0329109 |
SHOULDER SCREW This part replaces 0321389. |
| 59 |
0315511 |
NUT, Bracket to mount support |
| 60 |
0306423 |
BOLT |
| 61 |
0331021 |
MEGAPHONE This part replaces 0324833. |
| 62 |
0323144 |
SPACER |
| 64 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 65 |
0318612 |
SCREW, Bracket to cover |
| 66 |
0329012 |
KNOB Tilt & reverse lock handle This part replaces 0318157. |
| 67 |
0318238 |
SCREW |
| 69 |
0204757 |
BOW WASHER |
| 70 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 71 |
0303887 |
WASHEER, Pin to swivel bracket |
| 72 |
0319108 |
SCREW BELCRANK |
| 73 |
0321246 |
BUSHING, Shock absorber, lower |
| 74 |
0236689 |
SPACER, Stern bracket |
| 75 |
0321591 |
PIN, Link to locking |
| 76 |
0321592 |
PIN, Link to swivel bracket |
| 77 |
0332939 |
ROD, Reverse lock release This part replaces 0325709. |
| 78 |
0321695 |
PIN, Cylinder, lower |
| 79 |
0321748 |
LIN, Reverse lock, starboard |
| 80 |
0325526 |
BELCRANK, Releasing rod |
| 81 |
0321750 |
LOCKING LEVER, Reverse lock |
| 82 |
0334345 |
RETAINER, Lock spring This part replaces 0323593. |
| 83 |
0334345 |
RETAINER, Lock spring This part replaces 0323594. |
| 84 |
0335814 |
DISPOSITIF DE RETENUE, ressort de verrouillage pour transport sur remorque This part replaces 0325525. |
| 85 |
0321837 |
LINK, Reverse lock, port |
| 89 |
0321920 |
SPRING, Reverse lock |
| 90 |
0322085 |
SPRING, Trail lock return |
| 91 |
0325528 |
SPRING, Trail lock |
| 92 |
0909676 |
SCREW |
| 93 |
0387791 |
SHOCK ABSORBER |
| 94 |
0390097 |
LEVER AND AHSFT |
| 95 |
0319043 |
SEAL, Water tube upper |
| 96 |
0584119 |
LEAD ASSEMBLY, Ground This part replaces 0388080. |
| 98 |
0322376 |
NUT, Wiper, tilt tube |
| 100 |
0319682 |
VIS, capteur vers plaque |
| 102 |
0582153 |
SENDING UNIT |
