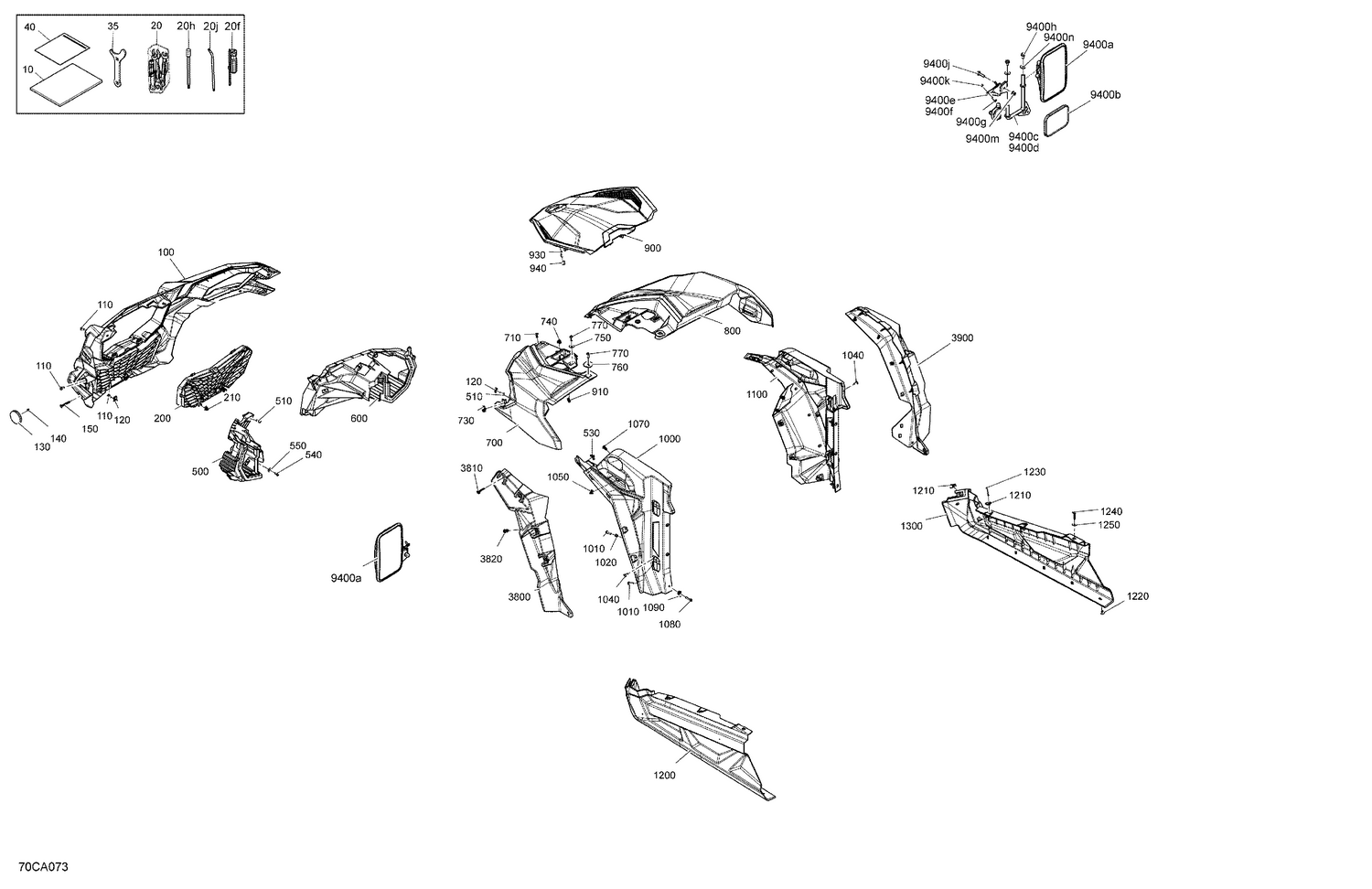

07- Body - Front Section
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 219002126 | English Operator Guide |
| 20f | 529000021 | Screw Driver |
| 20h | 529000088 | Driven Open Tool |
| 20j | 708200340 | Torx Key T30 |
| 35 | 529000057 | Adjustment Wrench |
| 40 | 219400038 | Waranty Registration Form |
| 100 | 705011317 | Front Fascia |
| 110 | 250000721 | Torx Truss Screw M6 X 16 |
| 120 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 130 | 705011222 | Amber Reflector |
| 140 | 233251494 | Elastic Flange Nut M5 |
| 150 | 250000748 | Torx Screw M6 X 45 |
| 200 | 705011318 | Fascia Removable Grid |
| 210 | 517306478 | Clip |
| 500 | 705011319 | LH Headlamp Structure |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 530 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 540 | 250000720 | Torx Screw K50 X 16 |
| 550 | 234062670 | Stainless Steel Flat Washer |
| 600 | 705011320 | RH Headlamp Structure |
| 700 | 705019683 | Timeless Black, LH Front Fender This part replaces 705013296. |
| 710 | 250000721 | Torx Truss Screw M6 X 16 |
| 730 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 740 | 517306478 | Clip |
| 750 | 250200162 | Flat Washer M6.6 X 22 |
| 760 | 705003841 | Support Plate |
| 770 | 250000722 | Torx Screw M6 X 20 |
| 800 | 705015581 | Timeless Black, RH Front Fender This part replaces 705013297. |
| 900 | 705011322 | Removable Hood |
| 910 | 517306478 | Clip |
| 930 | 250000807 | Torx Truss Screw M6 X 25 |
| 940 | 705502616 | Bushing |
| 1000 | 705011323 | LH Front Mudguard |
| 1010 | 250000712 | Torx Screw M6 X 20 |
| 1020 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1040 | 250000721 | Torx Truss Screw M6 X 16 |
| 1050 | 517306478 | Clip |
| 1070 | 293150230 | Tuflok Plastic Rivet |
| 1080 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1090 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1100 | 705011324 | RH Front Mudguard |
| 1200 | 705011331 | LH Rocker Panel |
| 1210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1220 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 705016939 | RH Front Rocker Panel This part replaces 705011332. |
| 3800 | 705011325 | LH Front 60" Mud Guard Extension |
| 3810 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 3820 | 293150230 | Tuflok Plastic Rivet |
| 3900 | 705011326 | RH Front 60" Mudguard Extension |
| 9400a | 705011497 | Mirror |
| 9400b | 705013819 | Wide Angle Lateral Mirror |
| 9400c | 705013823 | LH Mirror Rod Ass'y |
| 9400d | 705013817 | Mirror Rod |
| 9400e | 705012897 | LH Mirror Support |
| 9400f | 705012898 | RH Mirror Support |
| 9400g | 250000350 | Torx Truss Screw M6 X 20 |
| 9400h | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 9400j | 207683544 | Hex. Flange Screw M8 X 35 |
| 9400k | 233261494 | Hex. Flange Elastic Nut M6 |
| 9400m | 233281414 | Hex. Flange Elastic Nut M8 |
