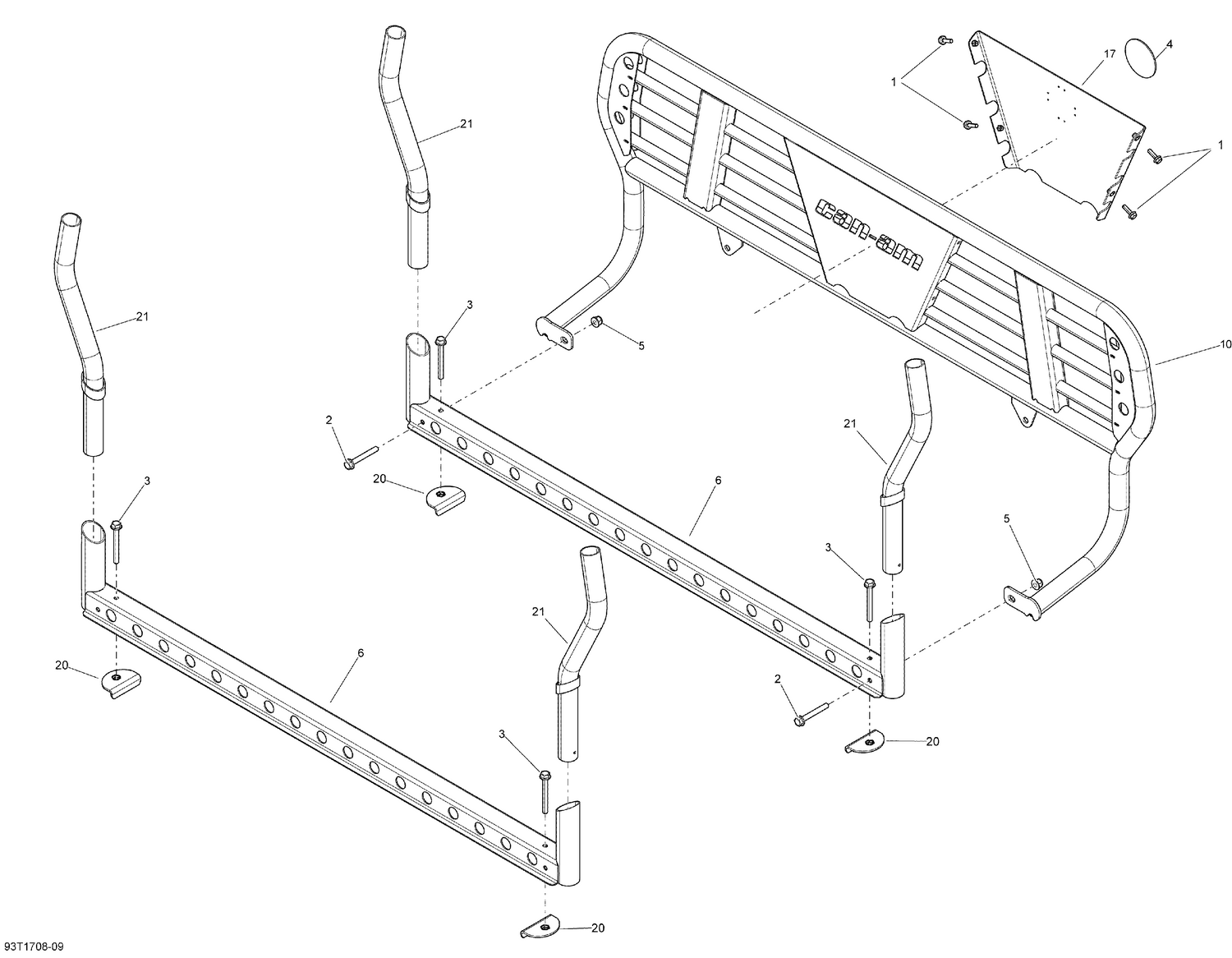

09- Forestry Log Bar
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662056 | Hex. Flange Screw M6 x 20 |
| 2 | 207686044 | Hex. Flange Screw M8 x 60 |
| 3 | 207687044 | Hex. Flange Screw M8 X 70 |
| 4 | 516008739 | BRP Logo 68mm This part replaces 219903609. |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 708300974 | FRAME TUBE PAINTED - Call your local BRP dealership |
| 10 | 708301554 | Front Wall Assembly |
| 17 | 708301072 | COVER PLATE - Call your local BRP dealership |
| 20 | 708301094 | FASTENING PLATE - Call your local BRP dealership |
