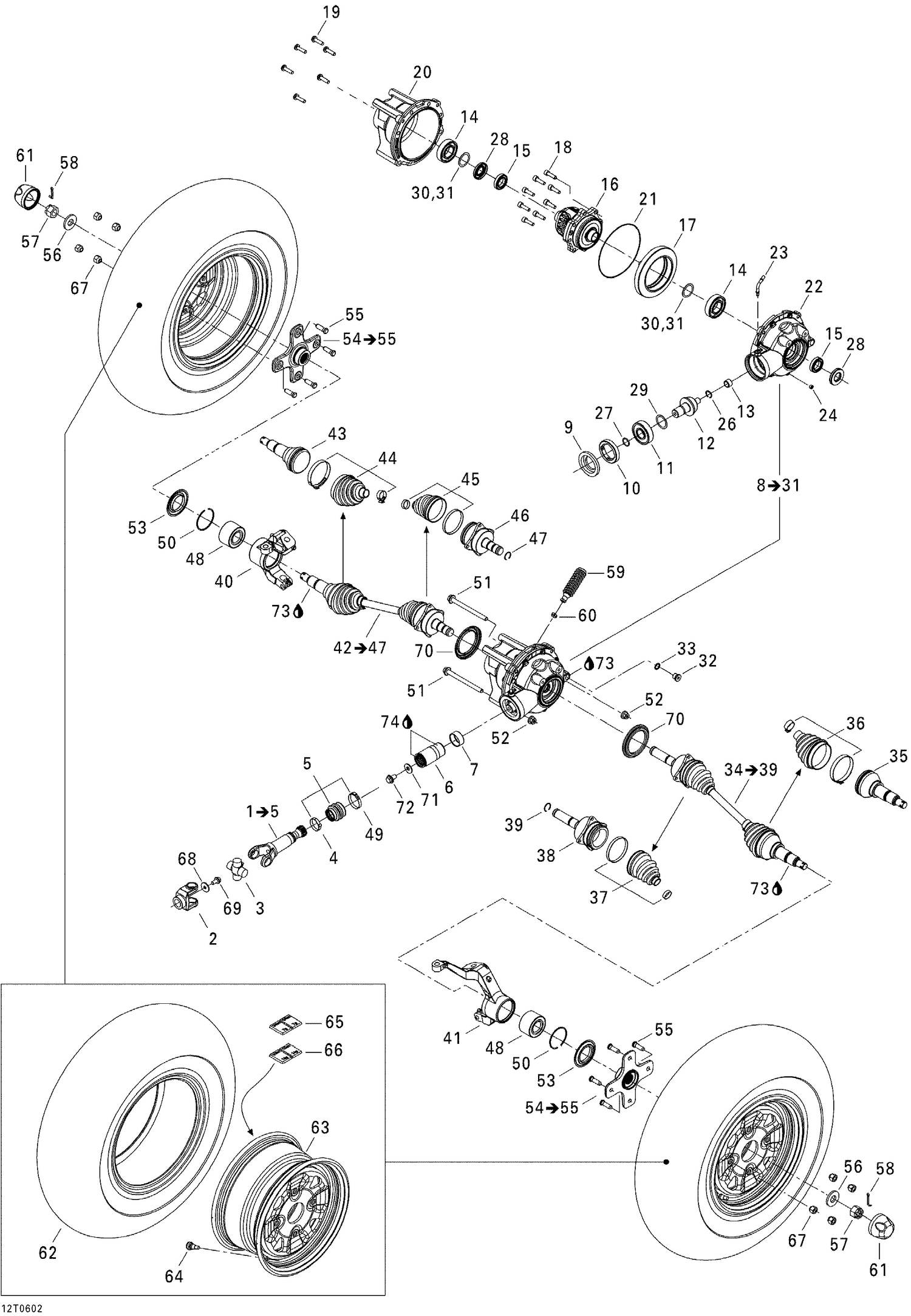

| Ref | Part Number | Description |
|---|
| 2 |
705400391 |
YOKE, FIXED JOINT - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Unit Pack Kit |
| 4 |
705400148 |
Collar |
| 5 |
703500255 |
Rubber Boot Kit |
| 6 |
703500678 |
Front Bushing Shaft Kit This part replaces 705400149. |
| 7 |
705400036 |
Wear Ring |
| 9 |
705401481 |
Oil Seal This part replaces 705400027. |
| 10 |
705401603 |
Nut This part replaces 705500266. |
| 11 |
705500260 |
Ball Bearing |
| 12 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 13 |
705500261 |
Needle Bearing |
| 14 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 15 |
293350044 |
Ball Bearing |
| 16 |
703500871 |
Ens Differentiel*Differential Kit This part replaces 705400320. |
| 17 |
705400192 |
GEAR, 36 TEETH - Call your local BRP dealership |
| 18 |
705400101 |
RING GEAR SCREW - Call your local BRP dealership |
| 19 |
705401601 |
Screw This part replaces 705500264. |
| 20 |
705400762 |
FRONT COVER - Call your local BRP dealership This part replaces 705400297. |
| 21 |
705500265 |
Seal |
| 22 |
705400646 |
Front Cover This part replaces 705400299. |
| 23 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 24 |
705500894 |
Drain Plug This part replaces 705500245. |
| 26 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 27 |
705500267 |
O-Ring |
| 28 |
705401618 |
Gasket This part replaces 705500255. |
| 29 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 30 |
705401604 |
Shim This part replaces 703500288. |
| 31 |
705401604 |
Shim This part replaces 703500050. |
| 32 |
705500504 |
Fill Level Plug |
| 33 |
705500506 |
Copper Washer |
| 35 |
705500560 |
CV Joint |
| 36 |
705400511 |
Wheel Boot Kit This part replaces 705500562. |
| 37 |
705400512 |
Differential Boot Kit This part replaces 705400417. |
| 38 |
705400294 |
RH PLUNGING JOINT - Call your local BRP dealership |
| 39 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 40 |
709400284 |
LH KNUCKLE - Call your local BRP dealership |
| 41 |
709400288 |
RH Knuckle |
| 43 |
705500560 |
CV Joint |
| 44 |
705400511 |
Wheel Boot Kit This part replaces 705500562. |
| 45 |
705400512 |
Differential Boot Kit This part replaces 705400417. |
| 46 |
705400295 |
LH Plunging Joint |
| 47 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 48 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 49 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 50 |
293370019 |
Circlip |
| 51 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 52 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 53 |
705501121 |
Wear Sleeve This part replaces 705500564. |
| 55 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 56 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 57 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 58 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 59 |
705400552 |
Rubber Bellow This part replaces 705400352. |
| 60 |
293650042 |
Oetiker Clamp |
| 61 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 63 |
705400383 |
FRONT RIM - Call your local BRP dealership |
| 63 |
705400435 |
FRONT RIM - Call your local BRP dealership |
| 64 |
705400193 |
Rim Valve With Cap |
| 65 |
705502106 |
Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 66 |
705500824 |
ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership |
| 67 |
250100042 |
Steel Wheel Nut |
| 68 |
211200041 |
Washer |
| 69 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 70 |
705400780 |
Wear Sleeve This part replaces 705400309. |
| 71 |
250200014 |
Flat Washer M10 |
| 72 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 73 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
